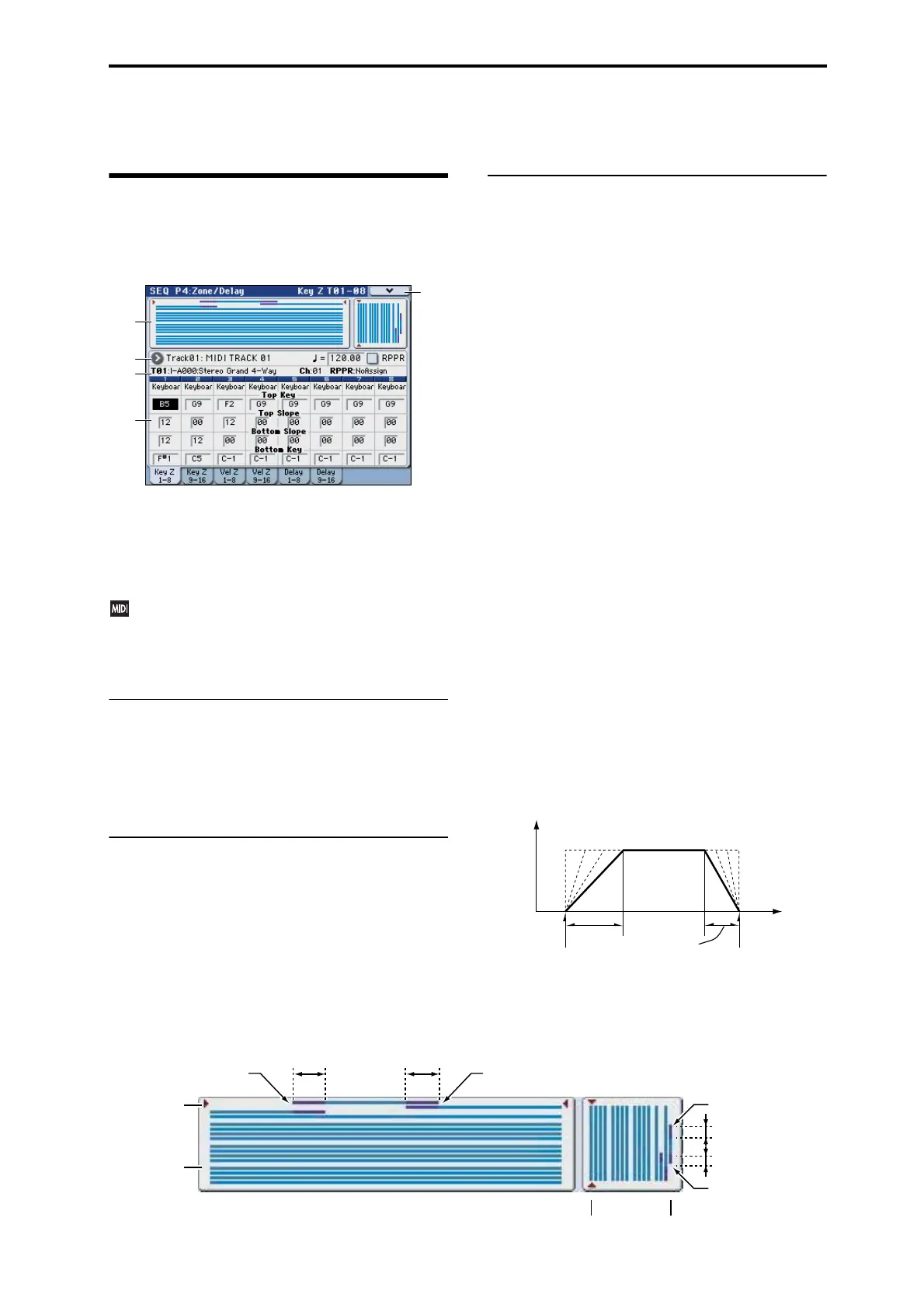

SEQ P4: Zones/Delay 4–1: Key Z T01–08, 4–2: Key Z T09–16 (Keyboard Zones T01–08, T09–16)
231
SEQ P4: Zones/Delay
4–1: Key Z T01–08,
4–2: Key Z T09–16
(Keyboard Zones T01–08, T09–16)
Here you can specify the key zones in which MIDI tracks 1–
8 and 9–16 will sound.
The top/bottom key settings specify the zone in which MIDI
tracks 1–8 and 9–16 will sound, and the top/bottom slope
settings specify the key range over which the volume will
change starting from the top/bottom key.
These settings do not affect MIDI transmission/
reception. All note data that is received will be recorded
into the internal sequencer, and all note data from the
internal sequencer or from the keyboard will be
transmitted.
4–1(2)a: Zone Map
This area indicates the note and velocity ranges in which
each MIDI track (1–16) will sound.
The display uses lines to indicate the range of notes and
velocities that will sound, and show the slope portion in a
different color.
4–1(2)b: Track Select, Tempo, RPPR
4–1(2)c: Track Info
For more information, please see “2–1: Trim T01–08, 2–2:
Trim T09–16” on page 224.
4–1(2)d: Keyboard Zones
Track 01 (Track Number):
Top Key [C–1...G9]
Specifies the top key (upper limit) of the notes that will
sound each MIDI track.
Top Slope [00, 01, 02, 03, 04, 06, 08, 10,
12, 18, 24, 30, 36, 48, 60, 72]
Specifies the range of keys (12 is one octave) over which the
volume will be reached starting from the top key.
0: The volume will be at the original level from the top key.
12: The volume will increase gradually as you play
downward, and will reach the original volume one octave
below the top key.
72: The volume will increase gradually as you play
downward, and will reach the original volume six octaves
below the top key.
Bottom Slope [00, 01, 02, 03, 04, 06, 08, 10,
12, 18, 24, 30, 36, 48, 60, 72]
Specifies the range of keys (12 is one octave) over which the
volume will be reached starting from the bottom key.
0: The volume will be at the original level from the bottom
key.
12: The volume will increase gradually as you play upward,
and will reach the original volume one octave above the
bottom key.
72: The volume will increase gradually as you play upward,
and will reach the original volume six octaves above the
bottom key.
Bottom Key [C–1...G9]
Specifies the bottom key (lower limit) of the notes that will
sound each MIDI track.
4–1a
4–1b
4–1c
4–1d
4–1
Menu
MIDI
Track 1
1 16
MIDI Track
Velocity zone display
MIDI
Track16
C–1 G9E1
Key zone display
Bottom Key
Bottom Slope Top Slope
Top Velocity
Bottom Velocity
Top Slope
Bottom Slope
Top Key
one
ap
Bottom Key Top Key
Key
Volume
Bottom Slope
Top Slope
How volume will change according to keyboard location
