Combination mode
178
If you want to edit these routings, use the DrumKit IFX
Patch menu command. For more information, please see
“DrumKit IFX Patch” on page 190.
Send1 (MFX1) [000...127]
Send2 (MFX2) [000...127]
For each timbre, these parameters set the send level to
master effects 1 and 2. These settings are valid when Bus
Select is set to L/R or Off. When IFX 1–5 are selected, the
send levels to master effects 1 and 2 are set by the Send1 and
Send2 parameters of the Insert FX Setup page, after the
sound has passed through IFX1–5.
If Bus Select is set to 1, 2, 3, 4, 1/2, or 3/4, these settings are
ignored.
Control change CC#93 can be used to control the Send 1
level, and CC#91 to control the Send 2, and modify their
respective settings. These messages will be received on
the MIDI channel specified for each timbre in the P2:
MIDI channel page.
The actual send levels are determined by multiplying
this value with the send level Send1 and Send2 (Prog
8–1d) for each oscillator of the program selected for the
timbre.
▼8–1–1(2): Menu Command
• 0: Write Combination ☞p.185
• 1: Panel–SW Solo Mode On ☞p.106
• 2: Exclusive Solo ☞p.107
• 3: Copy Insert Effect ☞p.117
• 4: Swap Insert Effect ☞p.118
• 5: DrumKit IFX Patch ☞p.190
For more information, please see “Combination: Menu
Command” on page 185.

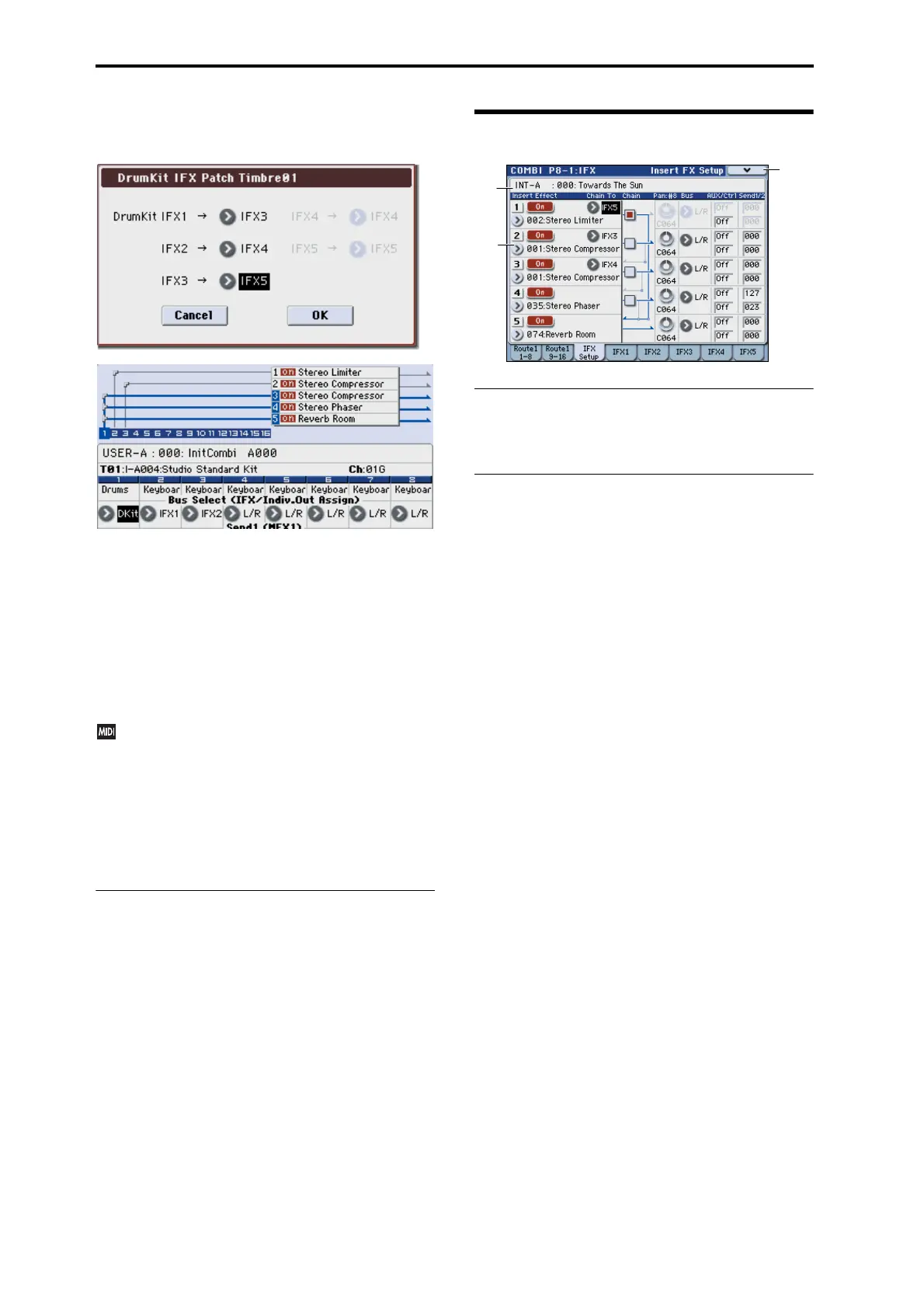

8–1–3: Insert FX Setup
8–1–3a: Combination Name
For more information, please see “2–1: EQ Trim T01–08, 2–2:
EQ Trim T09–16” on page 147.
8–1–3b: Insert Effect
Here you can choose the type of each insert effect 1 through
5, its on/off status, chaining, and adjust the post-IFX mixer
settings. For insert effects, the direct sound (Dry) is always
stereo-in and out. The input/output configuration of the
effect sound (Wet) depends on the effect type.
For detailed explanations of the individual effects, please
see the “Effect Guide” on page 421.
The following parameters are the same as in Program mode.
For more information, please see “8–2: Insert FX Setup” on
page 99.
However, unlike in Program mode, you can use a different
MIDI channel to modulate each effect, if desired. This
includes the post-IFX Pan: #8, Send1, and Send2 settings, as
well as the effect’s dynamic modulation (Dmod). To set the
MIDI channel, use the Ch parameter on the IFX 1–5 page
(Combi 8–1–4a).
Insert Effect:
IFX1...4 [000...170]
IFX5 [000...153]
IFX1...5: IFX On/Off [Off, On]
Chain:
IFX1: Chain to [IFX2...IFX5]
IFX2: Chain to [IFX3...IFX5]
IFX3: Chain to [IFX4...IFX5]
IFX1: Chain [Off, On]
IFX2: Chain [Off, On]
IFX3: Chain [Off, On]
IFX4: Chain [Off, On]
Pan:#8:
Pan: #8 (Post IFX PanCC#8) [L000...C064...R127]
Bus:
Bus (Bus Select) [Off, L/R, 1...4, 1/2, 3/4]
8–1
–3a
8–1
–3
Menu
8–1
–3b
To Next Page
