Overdrive, Amp models, and Mic models (OD Amp Mic)
453
Overdrive, Amp models, and Mic models (OD Amp Mic)

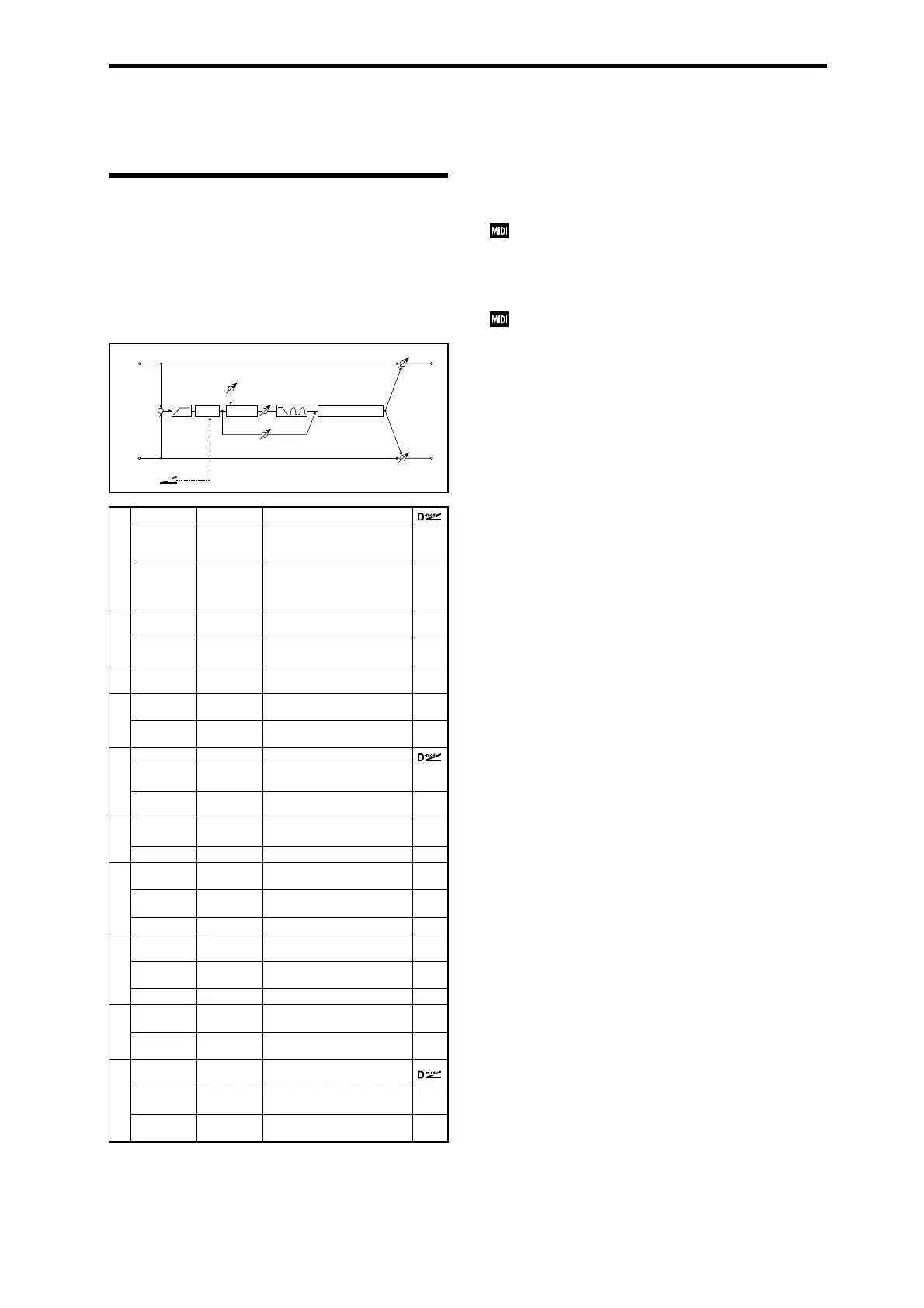

018: OD/Hi.Gain Wah
(Overdrive/Hi.Gain Wah)
This distortion effect utilizes an Overdrive mode and a Hi-
Gain mode. Controlling the wah effect, the 3-band EQ, and
the amp simulation will allow you to create versatile
distortion sounds. This effect is suitable for guitar and organ
sounds.
a: Wah
The Wah parameter switches the wah effect on/off.
a: Sw
This parameter sets how the wah effect is switched on and
off via the modulation source.
When Sw = Moment, the wah effect is usually turned off. It
is turned on only when you press the pedal or operate the
joystick.
When a value for the modulation source is less than 64,
“off” speed is selected, and when the value is 64 or
higher, “on” is selected.
When Sw = Toggle, the wah effect is switched between on
and off each time you press the pedal or operate the joystick.
The switch will be turned on/off each time the value of
the modulation source exceeds 64.
b: Wah Sweep Range
b: Wah Sweep Src
This parameter sets the sweep range of the wah center
frequency. A negative value will reverse the direction of
sweep. The wah center frequency can be controlled by the
modulation source specified in the Wah Sweep Src
parameter.
d: Pre Low-cut
Cutting the signal in the low range before it is input to the
Distortion will create a sharp distortion.
d: Drive
e: Output Level
The degree of distortion is determined by the level of input
signal and the setting of Drive. Raising the Drive setting
will cause the entire volume level to increase. Use the
Output Level parameter to adjust the volume level. The
Output Level parameter uses the signal level input to the 3-
Band EQ. If clipping occurs at the 3-Band EQ, adjust the
Output Level parameter.
a
WahOff, On Switches Wah on/off p.453
Src Off...Tempo
Selects the modulation source
that switches the Wah on and
off
Sw
Toggle,
Moment
Selects the switching mode for
the modulation source that
switches the Wah on and off
p.453
b
Wah Sweep
Range
–10...+10 Sets the range of Wah p.453
Wah Sweep
Src
Off...Tempo
Selects the modulation source
that controls the Wah p.453
cDrive Mode
Overdrive,
Hi-Gain
Switches between overdrive
and hi-gain distortion
d
Drive 1...100
Sets the degree of distortion
p.453
Pre Low-cut 0...10
Sets the low range cut amount
of the distortion input p.453
e
Output Level 0...50 Sets the output level p.453
Src Off...Tempo
Selects the modulation source
for the output level
Amt –50...+50
Sets the modulation amount of
the output level
f
Low Cutoff
[Hz]
20...1.00k
Sets the center frequency for
Low EQ (shelving type)
Gain [dB] –18...+18 Sets the gain of Low EQ
g
Mid1Cutoff
[Hz]
300...10.00k
Sets the center frequency for
Mid/High EQ 1 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 1 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 1
h
Mid2 Cutoff
[Hz]
500...20.00k
Sets the center frequency for
Mid/High EQ 2 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 2 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 2
i
Direct Mix 0...50
Sets the amount of the dry
sound mixed to the distortion
Speaker
Simulation
Off, On
Switches the speaker
simulation on/off
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Amp Simulation
3 Band PEQ
Output Level
Direct Mix
Pre Low-cut
D
-mod
Wah
Mode: Overdrive / Hi-Gain
Drive
Driver
