SEQ P8–2: IFX Route 2 8–2–1: Routing2 T01–08, 8–2–2: Routing2 T09–16
261
SEQ P8–2: IFX Route 2
8–2–1: Routing2 T01–08,
8–2–2: Routing2 T09–16
Here you can specify the buses, effect control bus, and AUX
bus for the outputs of tracks 1–8 and 9–16.

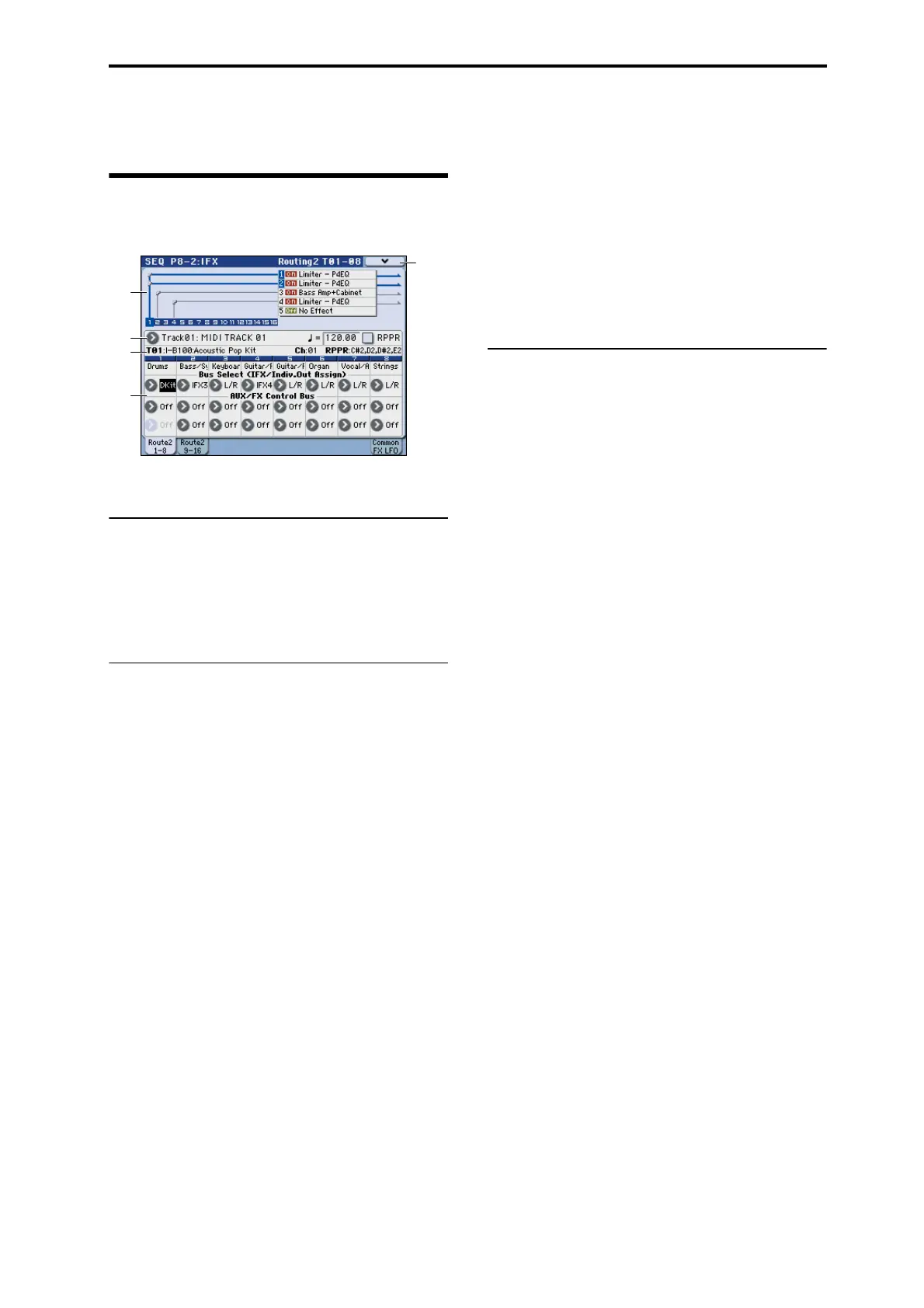

8–2–1(2)a: Routing Map
8–2–1(2)b: Track Select, Tempo, RPPR
8–2–1(2)c: Track Info
For more information, please see “8–1–1(2)a: Routing Map”
on page 257 and “2–1: Trim T01–08, 2–2: Trim T09–16” on
page 224.
8–2–1(2)d: Routing2
IFX/Indiv.Out Bus Select
[L/R, IFX1...5, 1...4, 1/2, 3/4, Off]
This specifies the output bus for the track’s program
oscillator. This is the same parameter as in the 8–1: IFX–
Routing 1 T01–08 and T09–16 pages.
For more information, please see “Bus Select (IFX/Indiv.
Out Assign)” on page 181.
AUX Bus [Off, 1, 2, 3, 4, 1/2, 3/4]
These settings send the output of the track to the AUX buses
(four mono channels: 1, 2, 3, 4).
In Sequencer mode, a song you play back can be resampled
(i.e., mixed-down) to a USB storage device (such as a hard
disk) to create a stereo WAVE file, or an audio input signal
from AUDIO INPUT can be sampled to RAM (the In-Track
Sampling function).
In order to sample, you must use the AUX Bus setting to
send the drum kit or audio input that you want to sample/
resample to the AUX bus(es) of your choice, and set Source
Bus (Seq 0–1–7b) to AUX 1/2.
Off: The signal will not be sent to a AUX bus. Normally you
will leave this off.
1, 2, 3, 4: The output of the track will be sent to the
corresponding AUX bus. The Pan setting (0–1b) of each
track will be ignored, and the signal will be sent in
monaural.
1/2, 3/4: The output of the track will be sent in stereo to the
corresponding pair of AUX buses. The signal is sent in
stereo to AUX buses 1/2 or 3/4 according to the Pan setting
(0–1b) of each track.
FX Control Bus [Off, 1, 2]
Sends the output of the track to an FX Control bus (two-
channel mono FX Ctrl 1 or 2).
Use the FX Control buses when you want a separate sound
to control the audio input of an effect. You can use two FX
Control buses (each is a two-channel mono bus) to control
effects in various ways.
For more information, please see “FX Control Buses” on
page 423.
▼8–2–1(2): Menu Command
• 0: Memory Status ☞p.271
• 1: Panel–SW Solo Mode On ☞p.106
• 2: Exclusive Solo ☞p.107
• 3: Copy Insert Effect ☞p.117
• 4: Swap Scene ☞p.115
• 5: FF/REW Speed ☞p.272
• 6: Set Location (Set Location for Locate Key) ☞p.272
• 7: Put Effect Setting to Track ☞p.288
For more information, please see “Sequencer: Menu
Command” on page 271.
