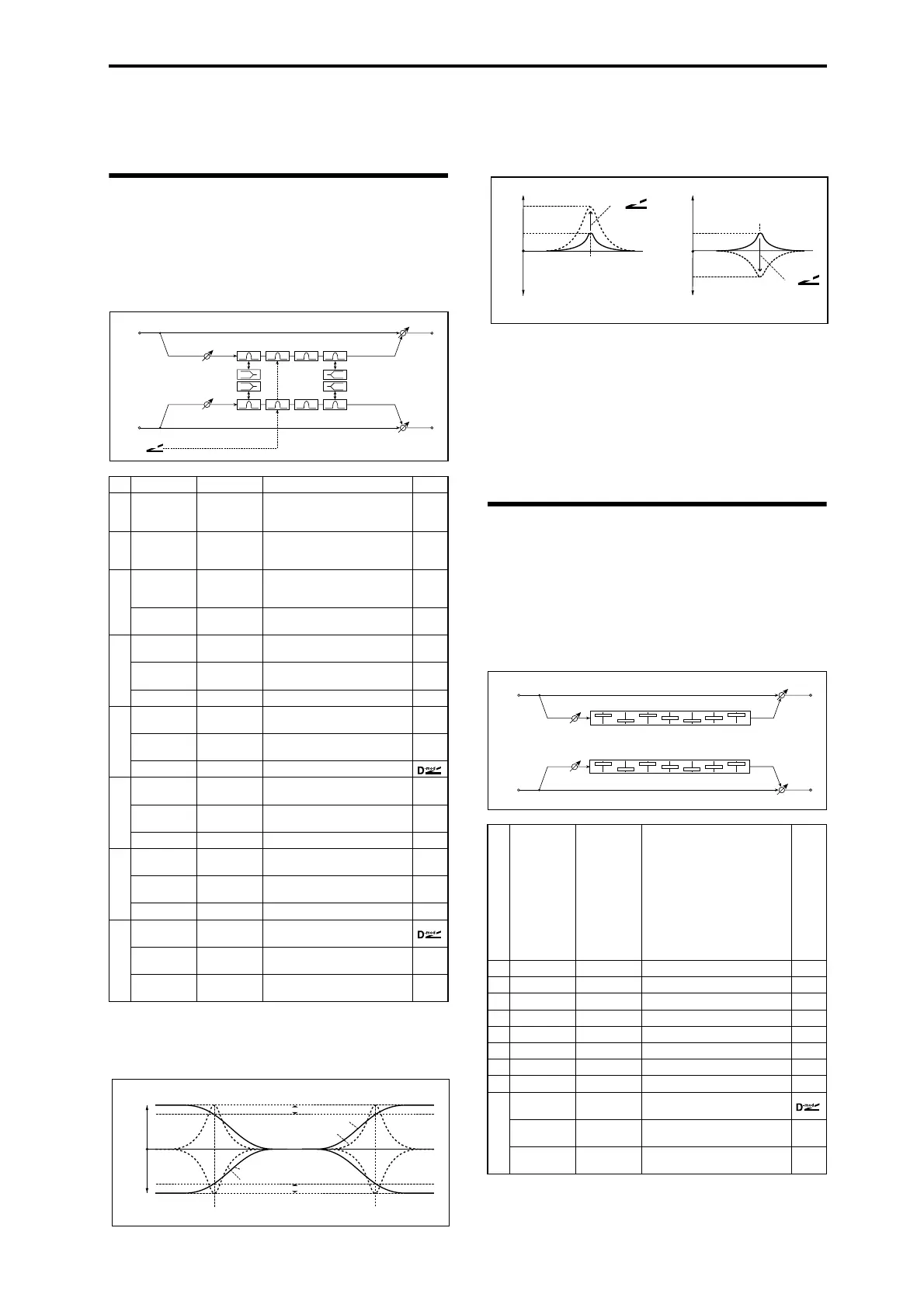

EQ and Filters (EQ/Filter)
445
EQ and Filters (EQ/Filter)
006: St.Parametric4EQ
(Stereo Parametric 4-Band EQ)
This is a stereo 4-band parametric equalizer. You can select
peaking type or shelving type for Band 1 and 4. The gain of
Band 2 can be controlled by dynamic modulation.
b: Band1 Type
c: Band4 Type
Selects a filter type for Band 1 and 4.
e, f, g, h: Q
These parameters set the bandwidth of each equalizer. The
higher the value, the narrower the band becomes.
d: Band2 Dynamic Gain Src
d: Amt [dB]
You can control the gain of Band 2 using the modulation
source.
007: St. Graphic 7EQ
(Stereo Graphic 7-Band EQ)
This is a stereo 7-band graphic equalizer. The bar graph of
the gain setting for each band gives you a clear, visual idea
of frequency responses. You can select a center frequency
setting for each band from twelve types, according to the
sound.
a: Type
This parameter selects a combination of center frequencies
for each band. The center frequency of each band is shown
in the right of the screen.
aTrim 0...100 Sets the input level
bBand1 Type
Peaking,
Shelving-
Low
Selects the type of Band 1
p.445
cBand4 Type
Peaking,
Shelving-
High
Selects the type of Band 4
p.445
d
Band2
Dynamic
Gain Src
Off...Tempo
Selects the modulation source
of the Band 2 gain p.445
Amt [dB] –18.0...+18.0
Sets the modulation amount of
Band 2 gain p.445
e
Band1 Cutoff
[Hz]
20...1.00k
Sets the center frequency of
Band 1
Q 0.5...10.0
Sets the bandwidth of Band 1
p.445
Gain [dB] –18.0...+18.0 Sets the gain of Band 1
f
Band2 Cutoff
[Hz]
50...10.00k
Sets the center frequency of
Band 2
Q 0.5...10.0
Sets the bandwidth of Band 2
p.445
Gain [dB] –18.0...+18.0 Sets the gain of Band 2
g
Band3 Cutoff
[Hz]
300...10.00k
Sets the center frequency of
Band 3
Q 0.5...10.0
Sets the bandwidth of Band 3
p.445
Gain [dB] –18.0...+18.0 Sets the gain of Band 3
h
Band4 Cutoff
[Hz]
500...20.00k
Sets the center frequency of
Band 4
Q 0.5...10.0
Sets the bandwidth of Band 4
p.445
Gain [dB] –18.0...+18.0 Sets the gain of Band 4
i
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Band1 Band2 Band3 Band4
PEQ PEQ PEQ PEQ
LEQ
LEQ
HEQ
HEQ
PEQ PEQ PEQ PEQ
Trim
Trim
D
-mod
3dB
3dB
Band1 Cutoff
Band4 Cutoff
0dB
+Gain
–Gain
Band1 Type=Peaking
Band1 Type=Shelving Low
Band4 Type=Peaking
Band4 Type=Shelving High
Parametric 4EQ - Band1, Band4 Type
aType
1:Wide 1,
2:Wide 2,
3:Wide 3,
4:Half Wide 1,
5:Half Wide 2,
6:Half Wide 3,
7:Low,
8:Wide Low,
9:Mid,
10:Wide Mid,
11:High,
12:Wide High
Selects a combination of center
frequencies for each band
p.445
bTrim 0...100 Sets the input level
cBand1 [dB] –18.0...+18.0 Sets the gain of Band 1
dBand2 [dB] –18.0...+18.0 Sets the gain of Band 2
eBand3 [dB] –18.0...+18.0 Sets the gain of Band 3
fBand4 [dB] –18.0...+18.0 Sets the gain of Band 4
gBand5 [dB] –18.0...+18.0 Sets the gain of Band 5
hBand6 [dB] –18.0...+18.0 Sets the gain of Band 6
iBand7 [dB] –18.0...+18.0 Sets the gain of Band 7
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Band2 Cutoff
Band2 Cutoff
0dB
+6dB
+15dB
Band2 Gain[dB]= +6.0
Band2 Gain Mod Amount[dB]= +9.0
D
-mod
0dB
+6dB
–9dB
Band2 Gain[dB]= +6.0
Band2 Gain Mod Amount[dB]= –15.0
D
-mod
Parametric 4EQ - Band2 Gain Mod
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Band1 Band2 Band3 Band4
Trim
Trim
Band5 Band6 Band7
Band1 Band2 Band3 Band4 Band5 Band6 Band7
