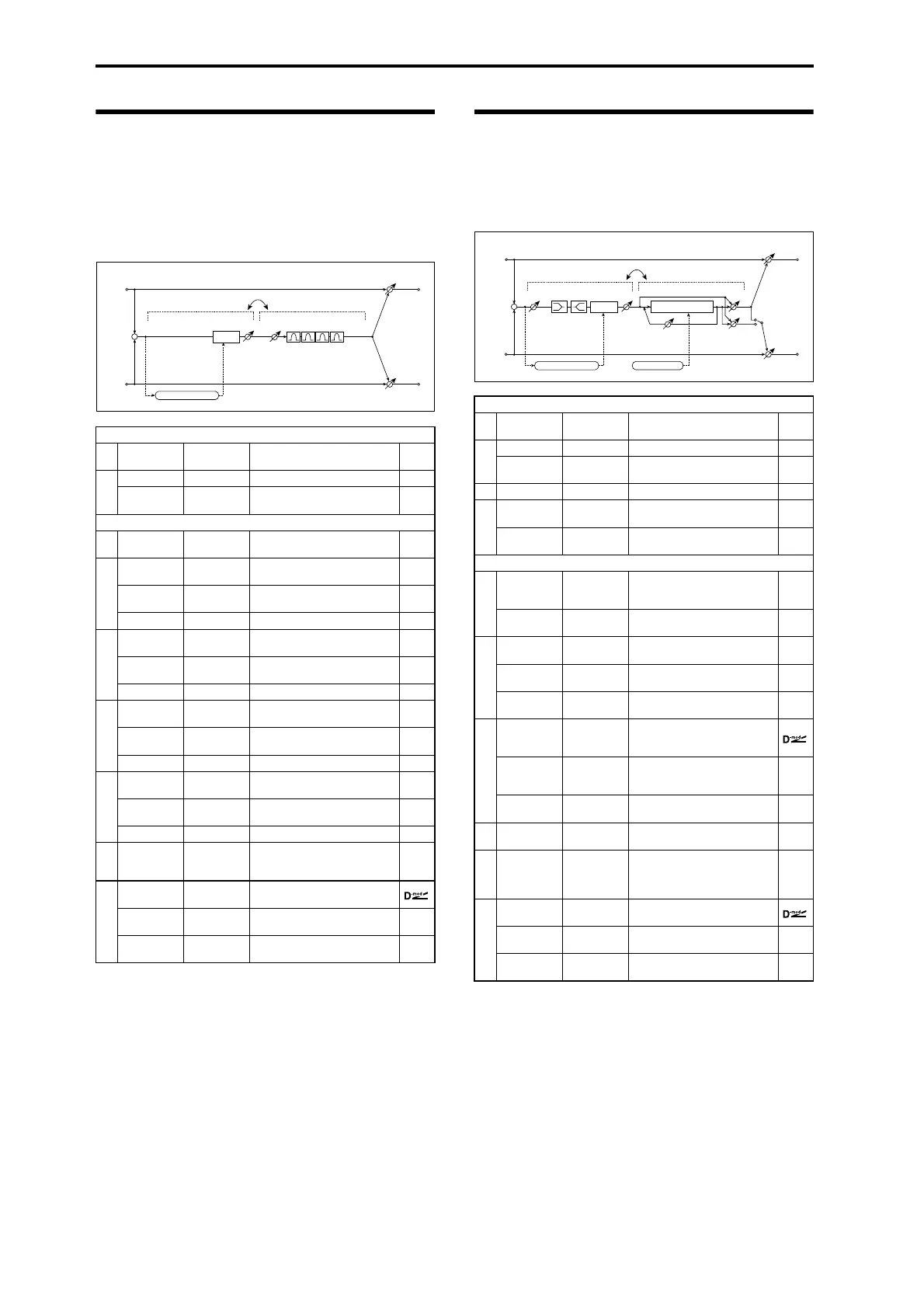

Effect Guide
492
085: Comp - P4EQ
(Compressor -
Parametric 4-Band EQ)
This effect combines a mono compressor and a four-band
parametric equalizer. You can change the order of the effects.
086: Comp - Cho/Flng
(Compressor - Chorus/Flanger)
This effect combines a mono compressor and a chorus/
flanger. You can change the order of the effects.
h: [F]Output Mode
i: Routing
When Wet Invert is selected, the right channel phase of the
chorus/flanger effect sound is inverted. This creates
pseudo-stereo effects and adds spread.
However, if a mono-input type effect is connected after this
effect, the left and right sounds may cancel each other,
eliminating the chorus/flanger effects.
When Routing is set to Flanger→Comp, [F]Output Mode
will be set to Normal.
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity p.441
b
[C]Attack 1...100 Sets the attack level p.441
Output Level 0...100
Sets the compressor output
level p.441
P4EQ
c [E]Trim 0...100
Sets the parametric EQ input
level
d
[E]B1 Cutoff
[Hz]
20...1.00k
Sets the center frequency of
Band 1
Q 0.5...10.0
Sets the bandwidth of Band 1
p.445
Gain [dB] –18...+18 Sets the gain of Band 1
e
[E]B2 Cutoff
[Hz]
50...5.00k
Sets the center frequency of
Band 2
Q 0.5...10.0
Sets the bandwidth of Band 2
p.445
Gain [dB] –18...+18 Sets the gain of Band 2
f
[E]B3 Cutoff
[Hz]
300...10.00k
Sets the center frequency of
Band 3
Q 0.5...10.0
Sets the bandwidth of Band 3
p.445
Gain [dB] –18...+18 Sets the gain of Band 3
g
[E]B4 Cutoff
[Hz]
500...20.00k
Sets the center frequency of
Band 4
Q 0.5...10.0
Sets the bandwidth of Band 4
p.445
Gain [dB] –18...+18 Sets the gain of Band 4
hRouting
Comp ➝
P4EQ, P4EQ
➝ Comp
Switches the order of the
compressor and parametric EQ
i
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
Trim
Parametric 4Band EQ
Output Level
Envelope - Control
Comp
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity p.441
b
[C]Attack 1...100 Sets the attack level p.441
Output Level 0...100
Sets the compressor output
level p.441
c [C]EQ Trim 0...100 Sets the EQ input level
d
[C]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
CHORUS/FLANGER
e
[F]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle,
Sine
Selects the LFO Waveform
f
[F]Delay
Time [msec]
0.0...1350.0 Sets the delay time
Depth 0...100
Sets the depth of LFO
modulation
Feedback –100...+100
Sets the feedback amount
p.461
g
[F]Cho/Flng
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the effect balance of the
chorus/flanger
p.450, p.461
Src Off...Tempo
Selects the Wet/Dry
modulation source for the
chorus/flanger
Amt –100...+100
Sets the Wet/Dry modulation
amount for the chorus/flanger
h
[F]Output
Mode
Normal,
Wet Invert
Selects the output mode for the
chorus/flanger p.492
iRouting
Comp ➝
Flanger,
Flanger ➝
Comp
Switches the order of the
compressor and chorus/flanger
p.492
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
Chorus/Flanger
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng Wet / Dry
Normal
Wet Invert
Output Mode
–
+
LEQ HEQ
EQ Trim
Comp
Output Level
Envelope - Control
