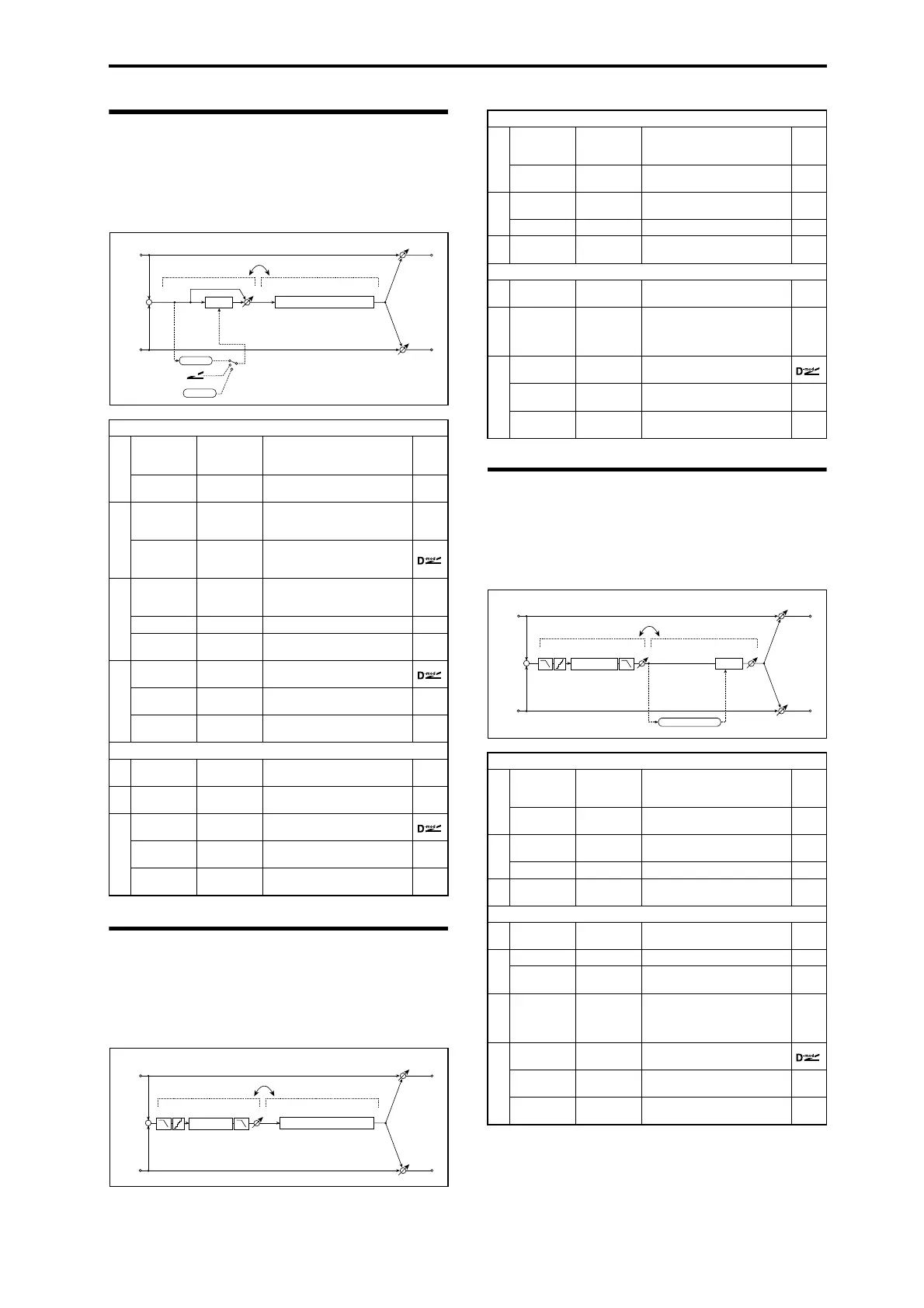

Mono-Mono Serial (Mono-Mono)
501
102: Wah - Amp Sim
(Wah - Amp Simulation)
This effect combines a mono wah and an amp simulation.
You can change the order of the effects.
103: Decimator - Amp
(Decimator - Amp Simulation)
This effect combines a mono decimator and an amp
simulation. You can change the order of the effects.
104: Decimator - Comp
(Decimator - Compressor)
This effect combines a mono decimator and a compressor.
You can change the order of the effects.
WAH
a
[W]
Frequency
Bottom
0...100
Sets the lower limit of the wah
center frequency p.448
Frequency
Top
0...100
Sets the upper limit of the wah
center frequency p.448
b
[W]Sweep
Mode
Auto,
D-mod,
LFO
Selects the control from auto-
wah, modulation source, and
LFO p.448
Src Off...Tempo
Selects the modulation source
for the wah when Sweep
Mode=D-mod
c
[W]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
Resonance 0...100 Sets the resonance amount
LPF Off, On
Switches the wah low pass filter
on and off
d
[W]Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the wah effect balance
Src Off...Tempo
Selects the Wet/Dry
modulation source for the wah
Amt –100...+100
Sets the Wet/Dry modulation
amount for the wah
AMP SIM
e
[A]Amplifier
Type
SS, EL84, 6L6
Selects the type of guitar
amplifier
fRouting
Wah
➝
Amp,
Amp
➝
Wah
Switches the order of the wah
and amp simulation
g
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Wet / Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Amp Simulation
Amp Simulation Filter
Wah/Auto Wah
Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Decimator
Routing
Amp Simulation
Amp Simulation Filter
Pre LPF
High Damp
Output Level
Decimator
Resolution
DECIMATOR
a
[D]Pre LPF Off, On
Turn the harmonic noise
caused by lowered sampling on
and off p.452
High Damp
[%]
0...100
Sets the ratio of high-range
damping
b
[D]Sampling
Freq [Hz]
1.00k...48.00k
Sets the sampling frequency
Resolution 4...24 Sets the data bit length p.452
c
[D]Output
Level
0...100
Sets the decimator output level
p.452
AMP SIM
d
[A]Amplifier
Type
SS, EL84, 6L6
Selects the type of guitar
amplifier
eRouting
Decimator ➝
Amp,
Amp ➝
Decimator
Switches the order of the
decimator and amp simulation
f
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
DECIMATOR
a
[D]Pre LPF Off, On
Turn the harmonic noise
caused by lowered sampling on
and off p.452
High Damp
[%]
0...100
Sets the ratio of high-range
damping
b
[D]Sampling
Freq [Hz]
1.00k...48.00k
Sets the sampling frequency
Resolution 4...24 Sets the data bit length p.452
c
[D]Output
Level
0...100
Sets the decimator output level
p.452
COMPRESSOR
d
[C]
Sensitivity
1...100 Sets the sensitivity p.441
e
[C]Attack 1...100 Sets the attack level p.441
Output Level 0...100
Sets the compressor output
level p.441
fRouting
Decimator ➝
Comp,
Comp ➝
Decimator
Switches the order of the
decimator and compressor
g
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Decimator
Routing
Pre LPF
High Damp
Output Level
Decimator
Resolution
Compressor
Comp
Output Level
Envelope - Control
