Mono-Mono Serial (Mono-Mono)
499

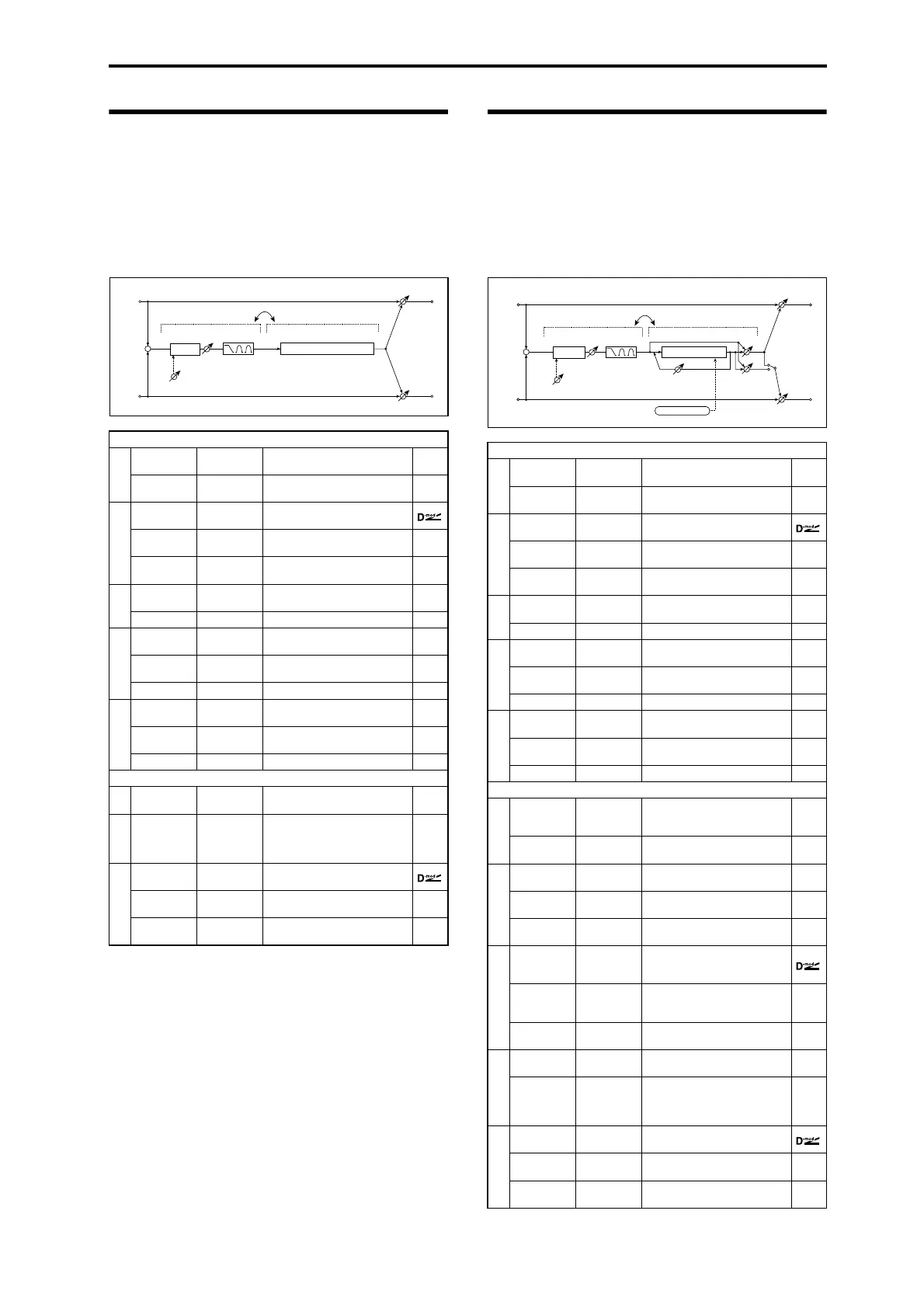

098: OD/HG - Amp Sim
(Overdrive/Hi.Gain -
Amp Simulation)
This effect combines a mono overdrive/high-gain distortion
and an amp simulation. You can change the order of the
effects.
099: OD/HG - Cho/Flng
(Overdrive/Hi.Gain -
Chorus/Flanger)
This effect combines a mono overdrive/high-gain distortion
and a chorus/flanger. You can change the order of the
effects.
OD/HI-GAIN
a
[O]Drive
Mode
Overdrive,
Hi-Gain
Switches between overdrive
and high-gain distortion
Drive 1...100
Sets the degree of distortion
p.453
b
[O]Output
Level
0...50
Sets the overdrive output level
p.453
Src Off...Tempo
Selects the modulation source
for the overdrive output level
Amt –50...+50
Sets the modulation amount of
the overdrive output level
e
[O]Low
Cutoff [Hz]
20...1.00k
Sets the center frequency for
Low EQ (shelving type)
Gain [dB] –18...+18 Sets the gain of Low EQ
f
[O]Mid1
Cutoff [Hz]
300...10.00k
Sets the center frequency for
Mid/High EQ 1 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 1 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 1
g
[O]Mid2
Cutoff [Hz]
500...20.00k
Sets the center frequency for
Mid/High EQ 2 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 2 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 2
AMP SIM
h
[A]Amplifier
Type
SS, EL84, 6L6
Selects the type of guitar
amplifie
iRouting
OD/HG ➝
Amp,
Amp ➝
OD/HG
Switches the order of the
overdrive and amp
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Amp Simulation
Amp Simulation Filter
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
OD/HI-GAIN
a
[O]Drive
Mode
Overdrive,
Hi-Gain
Switches between overdrive
and high-gain distortion
Drive 1...100
Sets the degree of distortion
p.453
b
[O]Output
Level
0...50
Sets the overdrive output level
p.453
Src Off...Tempo
Selects the modulation source
for the overdrive output level
Amt –50...+50
Sets the modulation amount of
the overdrive output level
e
[O]Low
Cutoff [Hz]
20...1.00k
Sets the center frequency for
Low EQ (shelving type)
Gain [dB] –18...+18 Sets the gain of Low EQ
f
[O]Mid1
Cutoff [Hz]
300...10.00k
Sets the center frequency for
Mid/High EQ 1 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 1 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 1
g
[O]Mid2
Cutoff [Hz]
500...20.00k
Sets the center frequency for
Mid/High EQ 2 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 2 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 2
CHORUS/FLANGER
h
[F]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle,
Sine
Selects the LFO Waveform
i
[F]Delay
Time [msec]
0.0...1350.0 Sets the delay time
Depth 0...100
Sets the depth of LFO
modulation
Feedback –100...+100
Sets the feedback amount
p.461
j
[F]Cho/Flng
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the effect balance of the
chorus/flanger
p.450, p.461
Src Off...Tempo
Selects the Wet/Dry
modulation source for the
chorus/flanger
Amt –100...+100
Sets the Wet/Dry modulation
amount for the chorus/flanger
k
[F]Output
Mode
Normal, Wet
Invert
Selects the output mode for the
chorus/flanger p.492
Routing
OD/HG ➝
Flanger,
Flanger ➝
OD/HG
Switches the order of the
overdrive and chorus / flanger
l
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Chorus/Flanger
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng Wet / Dry
Normal
Wet Invert
Output Mode
–
+
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
