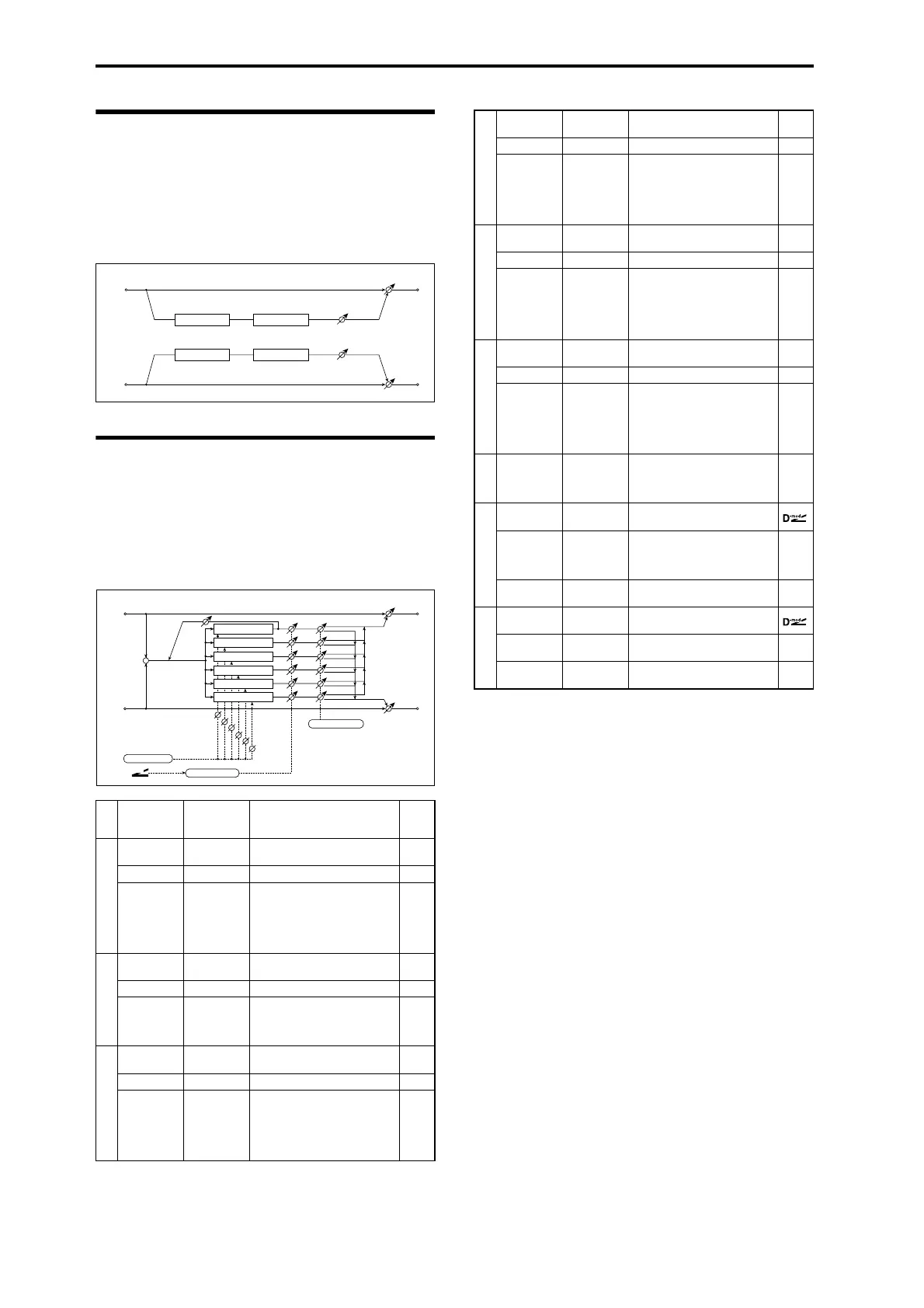

Effect Guide
518
160: St. Mic + PreAmp
(Stereo Mic Modeling + PreAmp)
This is a stereo mic and preamp simulator (see p.457, 025:
Mic Model+PreAmp (Mic Modeling + PreAmp)). For
example you might use this to simulate micing of a stereo
source such as a rotary speaker.
161: Multitap Cho/Delay
(Multitap Chorus/Delay)
This effect has six chorus blocks with different LFO phases.
You can produce a complex stereo image by setting a
different delay time and depth for each block. You can
control the delay output level via a modulation source.
b, c, d, e, f, g: Status
These parameters set the output status of each Tap.
Always On: Output is always on. (No modulation)
Always Off: Output is always off. (No modulation)
On→Off (dm): Output level is switched from on to off
depending on the modulation source.
Off→On (dm): Output level is switched from off to on
depending on the modulation source.
Combining these parameters, you can change from 4-phase
chorus to two-tap delay by crossfading them gradually via
the modulation source during a performance.
h: Panning Preset
This parameter selects combinations of stereo images of the
tap outputs.
a
LFO
Frequency
[Hz]
0.02...13.00 Sets the speed of the LFO
b
Tap1 (000)
[msec]
0...2000
Sets the Tap1 (LFO phase=0
degrees) delay time
Depth 0...30 Sets the Tap1 chorus depth
Status
Always On,
Always Off,
On➝Off
(Dm),
Off➝On
(Dm)
Selects on, off, or modulation
source for the control of Tap1
output
p.518
c
Tap2 (180)
[msec]
0...2000
Sets the Tap2 (LFO phase=180
degrees) delay time
Depth 0...30 Sets the Tap2 chorus depth
Status
Always On,
Always Off,
On➝Off (Dm),
Off➝On (Dm)
Selects on, off, or modulation
source for the control of Tap2
output
p.518
d
Tap3 (060)
[msec]
0...2000
Sets the Tap3 (LFO phase=60
degrees) delay time
Depth 0...30 Sets the Tap3 chorus depth
Status
Always On,
Always Off,
On➝Off
(Dm),
Off➝On
(Dm)
Selects on, off, or modulation
source for the control of Tap3
output
p.518
Tube Pre AmpMic Simulation
Tube Pre AmpMic Simulation
Left
Right
Wet / Dry
Output Level
Wet / Dry
Stereo In - Stereo Out
Left
Right
Feedback
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
LFO: Triangle
0 [degree]
180 [degree]
60 [degree]
240 [degree]
120 [degree]
300 [degree]
Tap1 Delay
Tap2 Delay
Tap3 Delay
Tap5 Delay
Tap6 Delay
Tap4 Delay
D
-mod
On/Off Control
Panning Preset
e
Tap4 (240)
[msec]
0...2000
Sets the Tap4 (LFO phase=240
degrees) delay time
Depth 0...30 Sets the Tap4 chorus depth
Status
Always On,
Always Off,
On➝Off
(Dm),
Off➝On
(Dm)
Selects on, off, or modulation
source for the control of Tap4
output
p.518
f
Tap5 (120)
[msec]
0...2000
Sets the Tap5 (LFO phase=120
degrees) delay time
Depth 0...30 Sets the Tap5 chorus depth
Status
Always On,
Always Off,
On➝Off
(Dm),
Off➝On
(Dm)
Selects on, off, or modulation
source for the control of Tap5
output
p.518
g
Tap6 (300)
[msec]
0...2000
Sets the Tap1 (LFO phase=300
degrees) delay time
Depth 0...30 Sets the Tap6 chorus depth
Status
Always On,
Always Off,
On➝Off
(Dm),
Off➝On
(Dm)
Selects on, off, or modulation
source for the control of Tap6
output
p.518
h
Panning
Preset
1 : L 1 2 3 4 5 6 R,
2 : L 135 246 R,
3 : L 1 3 5 2 4 6 R,
4 : L 1 4 5 6 3 2 R
Selects the stereo panning
pattern for each tap
p.518
i
Tap1
Feedback
–100...+100 Sets the Tap1 feedback amount
Src Off...Tempo
Selects the modulation source
for the Tap output level,
feedback amount, and effect
balance
Amt –100...+100
Sets the modulation amount of
Tap1 feedback amount
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
