EQ and Filters (EQ/Filter)
447

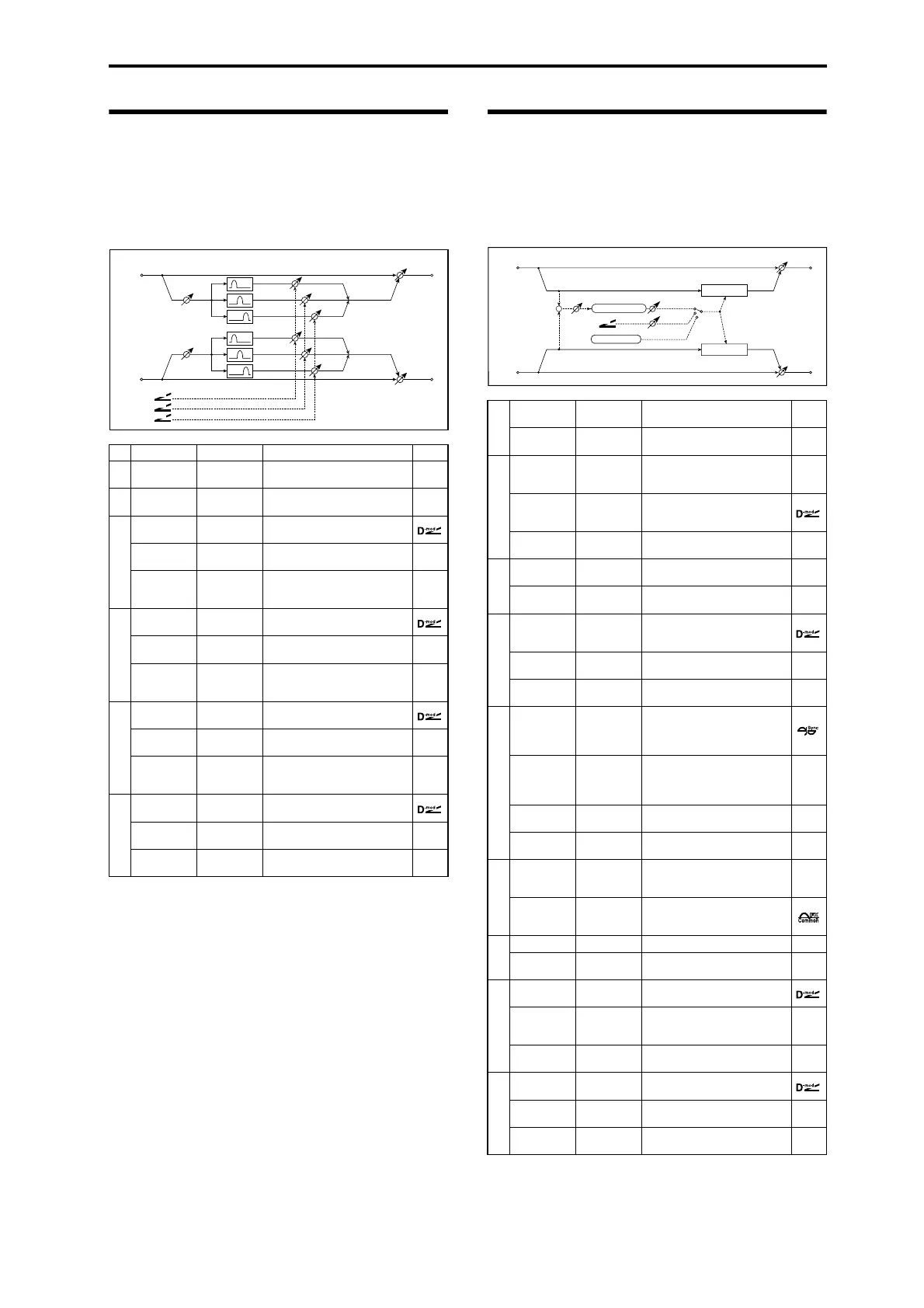

009: Stereo Isolator
This is a stereo effect that separates the input signal into low,
mid, and high-frequency bands, and controls the volume of
each band independently. For example you can separately
boost or cut the kick, snare, and hi-hat sounds from a drum
signal in realtime.
010: St. Wah/Auto Wah
(Stereo Wah/Auto Wah)
This stereo wah effect allows you to create sounds from
vintage wah pedal simulation to auto-wah simulation, and
much broader range settings.
aTrim 0...100 Sets the input level
b
Low/Mid
[Hz]
100...500
Sets the frequency at which the
low and mid bands are divided
c
Mid/High
[Hz]
2000...6000
Sets the frequency at which the
mid and high bands are divided
d
Low Gain
[dB]
–Inf,
–59...+12
Sets the low-frequency gain
Src Off...Tempo
Selects the source that will
modulate low-frequency gain
Amt –72...+72
Sets the amount by which the
low-frequency gain will be
modulated
e
Mid Gain
[dB]
–Inf,
–59...+12
Sets the mid-frequency gain
Src Off...Tempo
Selects the modulation source
for mid-frequency gain
Amt –72...+72
Sets the amount by which the
mid-frequency gain will be
modulated
f
High Gain
[dB]
–Inf,
–59...+12
Sets the high-frequency gain
Src Off...Tempo
Selects the modulation source
for high-frequency gain
Amt –72...+72
Sets the amount by which the
high-frequency gain will be
modulated
g
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
D
-mod
D
-mod
D
-mod
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Trim
Isolator
Low
Mid
High
Trim
Low
Mid
High
a
Frequency
Bottom
0...100
Sets the lower limit of the wah
center frequency p.448
Frequency
Top
0...100
Sets the upper limit of the wah
center frequency p.448
b
Sweep Mode
Auto,
D-mod,
LFO
Selects the control from auto-
wah, modulation source, and
LFO p.448
Src Off...Tempo
Selects the modulation source
for the wah when Sweep
Mode=D-mod
Respns 0...100
Sets the response speed when
Sweep Mode = Auto or D-mod
c
Envelope
Sens
0...100
Sets the sensitivity of auto-wah
p.448
Envelope
Shape
–100...+100
Sets the sweep curve of auto-
wah p.448
d
LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO p.448
Src Off...Tempo
Selects a modulation source for
LFO speed
Amt
–20.00...
+20.00
Sets the modulation amount of
LFO speed
e
MIDI Sync Off, On
When this is on, the LFO speed
is set by BPM, Base Note, and
Times, instead of Frequency
p.448
BPM
MIDI,
40.00...
300.00
MIDI syncs to the system
tempo; 40–300 sets the tempo
manually for this individual
effect p.448
Base Note ...
Selects the type of notes that
specify the LFO speed p.448
Times x1...x32
Sets the number of notes that
specify the LFO speed p.448
f
LFO Type
Individual,
Common1,
Common2
Selects either (individual) LFO,
Common FX LFO1, or Common
LFO2 p.448
CmnLFO
Offset [deg]
–180...+180
Sets the phase offset when
Type = Common 1 or Common
2p.448
g
Resonance 0...100 Sets the resonance amount
Low Pass
Filter
Off, On
Switches the wah low pass filter
on and off
h
Output Level 0...100
Sets the output level of the
effect sound
Src Off...Tempo
Selects the modulation source
that will control the effect
output level
Amt –100...+100
Sets the modulation amount of
the effect output level
i
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Stereo In - Stereo Out
D
-mod
Envelope Sens
Envelope Shape
Response
Wet / Dry
Wah
Sweep Mode
D-mod
Auto
Left
Right
Wet / Dry
LFO
LFO
Wah
+
