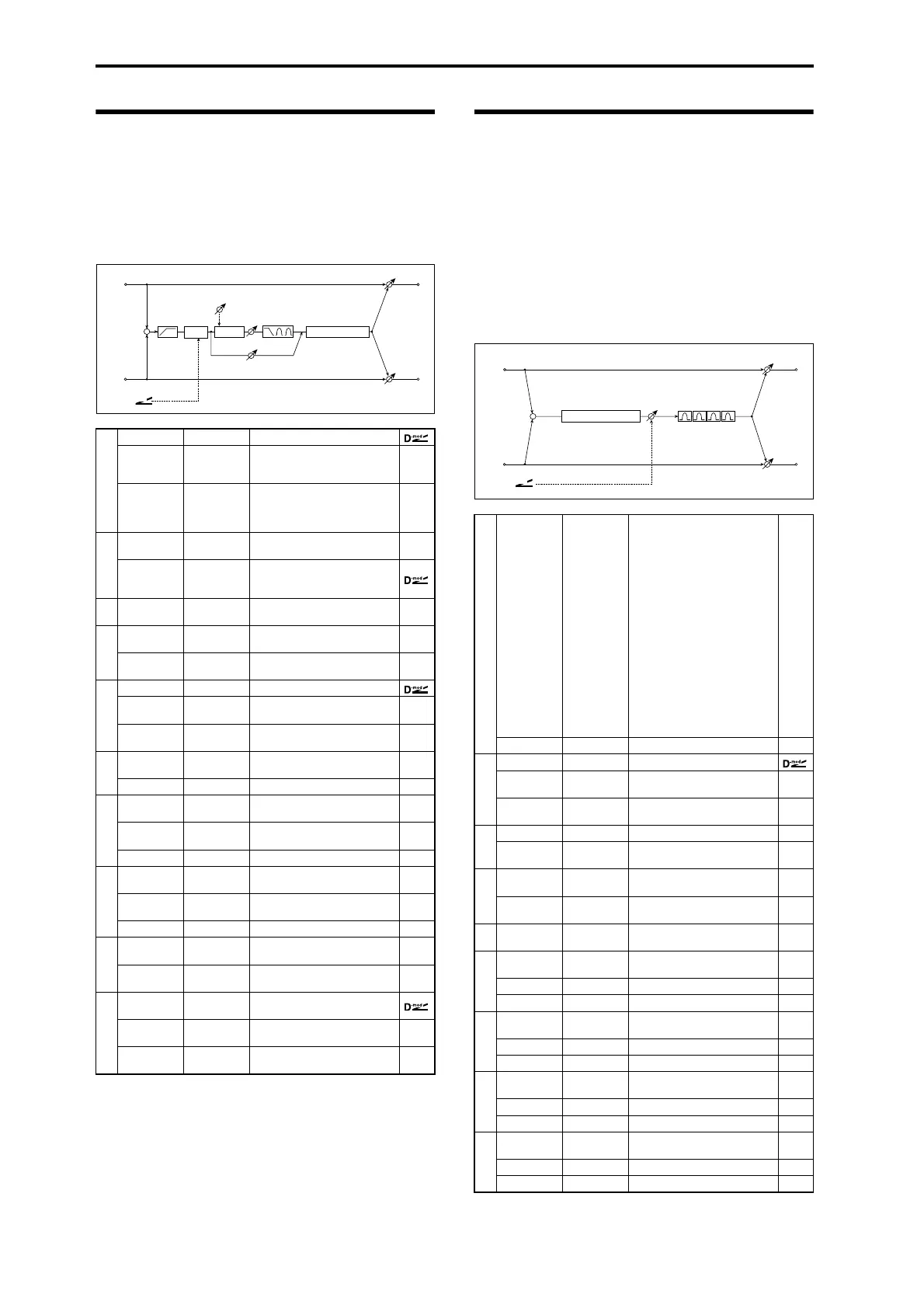

157: OD/HyperGain Wah
(Overdrive/Hyper Gain Wah)
This distortion effect has two modes: overdrive and hyper-
gain that produces a strong distortion. A higher high-gain
setting is required for this effect relative to a normal-size
effect.
158: GuitarAmp + P4EQ
(Guitar Amp Model +
Parametric 4-Band EQ)
This combines a guitar amp simulation (which even
faithfully replicates the distortion and tone control circuitry)
with a four-band equalizer.
By using this in conjunction with “019: St. Guitar Cabinet
(Stereo Guitar Cabinet)” on p.454, you can obtain an even
more realistic guitar sound that simulates a guitar amp +
speaker cabinet.
a
WahOff, On Switches Wah on/off p.453
Src Off...Tempo
Selects the modulation source
that switches the Wah on and
off p.453
Sw
Toggle,
Moment
Selects the switching mode for
the modulation source that
switches the Wah on and off
p.453
b
Wah Sweep
Range
–10...+10 Sets the range of Wah p.453
Wah Sweep
Src
Off...Tempo
Selects the modulation source
that controls the Wah
p.453
cDrive Mode
Overdrive,
Hyper-Gain
Switches between overdrive
and hi-gain distortion
d
Drive 1...120
Sets the degree of distortion
p.453
Pre Low-cut 0...10
Sets the low range cut amount
of the distortion input p.453
e
Output Level 0...50 Sets the output level p.453
Src Off...Tempo
Selects the modulation source
for the output level
Amt –50...+50
Sets the modulation amount of
the output level
f
Low Cutoff
[Hz]
20...1.00k
Sets the center frequency for
Low EQ (shelving type)
Gain [dB] –18...+18 Sets the gain of Low EQ
g
Mid1 Cutoff
[Hz]
300...10.00k
Sets the center frequency for
Mid/High EQ 1 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 1 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 1
h
Mid2 Cutoff
[Hz]
500...20.00k
Sets the center frequency for
Mid/High EQ 2 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 2 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 2
i
Direct Mix 0...50
Sets the amount of the dry
sound mixed to the distortion
Speaker
Simulation
Off, On
Switches the speaker
simulation on/off
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Amp Simulation
3 Band EQ
Output Level
Direct Mix
Pre Low-cut
D
-mod
Wah
Mode: Overdrive / Hyper-Gain
Drive
Driver
+
a
Amp Type
VOX AC15,
VOX AC15TB,
VOX AC30,
VOX AC30TB,
UK BLUES,
UK 70'S,
UK 80'S,
UK 90'S,
UK MODERN,
US MODERN,
US HIGAIN,
BOUTIQUE
OD,
BOUTIQUE
CL,
BLACK 2x12,
TWEED -
1x12,
TWEED -
4x10
Selects the type of the amplifier
p.517
Drive Gain 0...100 Sets the input gain
b
Volume 0...100 Sets the output level
Src Off...Tempo
Selects the modulation source
for the output level
Amt –100...+100
Sets the modulation amount of
the output level
c
Bass 0...100 Sets the bass (low range) level
Middle 0...100
Sets the middle (mid range)
level
d
Treble 0...100
Sets the treble (high range)
level
Presence 0...100
Sets the presence (high-
frequency tone) p.517
ePost P4EQ Thru, On
Selects through or on for the
equalizer p.517
f
Band1 Cutoff
[Hz]
20...1.00k
Sets the center frequency of
Band 1
Q 0.5...10.0 Sets Band 1’s bandwidth
Gain [dB] –18...+18 Sets the gain of Band 1
g
Band2 Cutoff
[Hz]
50...5.00k
Sets the center frequency of
Band 2
Q 0.5...10.0 Sets Band 2’s bandwidth
Gain [dB] –18...+18 Sets the gain of Band 2
h
Band3 Cutoff
[Hz]
300...10.00k
Sets the center frequency of
Band 3
Q 0.5...10.0 Sets Band 3’s bandwidth
Gain [dB] –18...+18 Sets the gain of Band 3
i
Band4 Cutoff
[Hz]
500...20.00k
Sets the center frequency of
Band 4
Q 0.5...10.0 Sets Band 4’s bandwidth
Gain [dB] –18...+18 Sets the gain of Band 4
+
Left
Right
Wet / Dry
Volume
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Parametric 4Band EQ
D
-mod
Guitar Amp Model
