Effect Guide
502

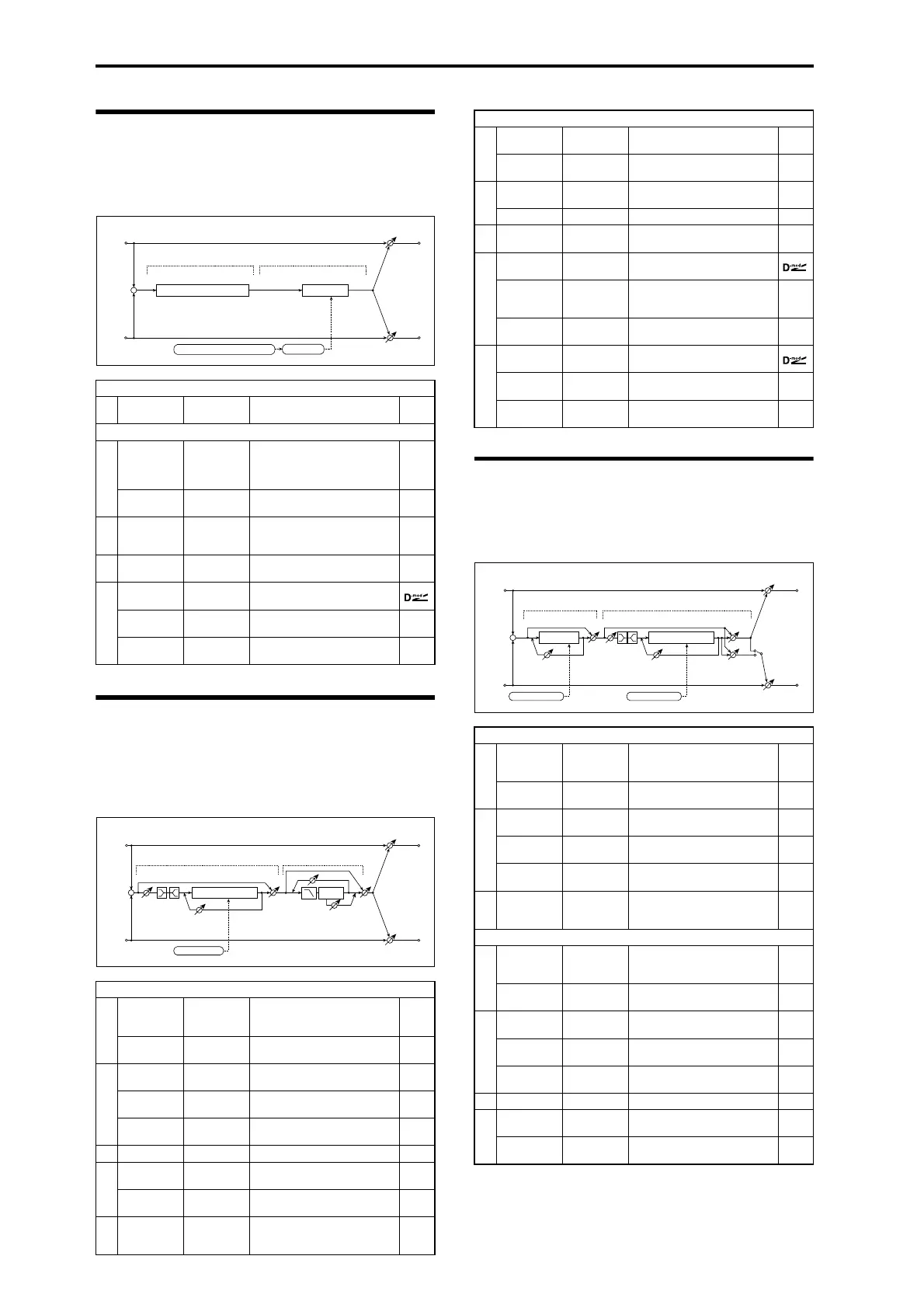

105: AmpSim - Tremolo
(Amp Simulation- Tremolo)
This effect combines a mono amp simulation and a tremolo.
106: Cho/Flng - Mt.Dly
(Chorus/Flanger - Multitap Delay)
This effect combines a mono chorus/flanger and a multitap
delay.
107: Phaser - Cho/Flng
(Phaser - Chorus/Flanger)
This effect combines a mono phaser and a chorus/flanger.
AMP SIM
a
[A]Amplifier
Type
SS, EL84, 6L6
Selects the type of guitar
amplifier
TREMOLO
b
[T]LFO
Waveform
Triangle,
Sine,
Vintage, Up,
Down
Selects the LFO Waveformp.469
LFO Shape –100...+100
Changes the curvature of the
LFO Waveform p.449
c
[T]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
d [T]Depth 0...100
Sets the depth of LFO
modulation
e
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
CHORUS/FLANGER
a
[F]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle,
Sine
Selects the LFO Waveform
b
[F]Delay
Time [msec]
0.0...1350.0 Sets the delay time
Depth 0...100
Sets the depth of LFO
modulation
Feedback –100...+100
Sets the feedback amount
p.461
c [F]EQ Trim 0...100 Sets the EQ input level
d
[F]PreLEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
PreHEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
e
[F]Cho/Flng
Wet/Dry
–Wet...–1 : 99,
Dry,
1 : 99...Wet
Sets the effect balance of the
chorus/flanger p.450, p.461
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Amp Simulation Tremolo
Amp Simulation Filter
Tremolo
LFO: Tri/Sin/Vintage/Up/Down
LFO Shape
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
LEQ HEQ
EQ
Trim
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Chorus/Flanger
Cho/Flng
Wet / Dry
Mt.Dly
Wet / Dry
Chorus/Flanger
Feedback
LFO: Tri / Sine
MULTITAP DELAY
a
[D]Tap1 Time
[msec]
0.0...1360.0 Sets the Tap1 delay time
Tap1 Level 0...100
Sets the Tap1 output level
p.477
b
[D]Tap2 Time
[msec]
0.0...1360.0 Sets the Tap2 delay time
Feedback –100...+100 Sets the Tap2 feedback amount
c
[D]High
Damp [%]
0...100
Sets the damping amount in
the high range p.476
d
[D]Mt.Delay
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the multitap delay effect
balance
Src Off...Tempo
Selects the Wet/Dry
modulation source for the
multitap delay
Amt –100...+100
Sets the Wet/Dry modulation
amount for the multitap delay
e
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
PHASER
a
[P]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle,
Sine
Selects the LFO Waveform
b
[P]Manual 0...100
Sets the frequency to which the
effect is applied
Depth 0...100
Sets the depth of LFO
modulation
Resonance –100...+100
Sets the resonance amount
p.463
c
[P]Phaser
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the phaser effect balance
p.450, p.463
CHORUS/FLANGER
d
[F]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle,
Sine
Selects the LFO Waveform
e
[F]Delay
Time [msec]
0.0...1350.0 Sets the delay time
Depth 0...100
Sets the depth of LFO
modulation
Feedback –100...+100
Sets the feedback amount
p.461
f [F]EQ Trim 0...100 Sets the EQ input level
g
[F]PreLEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
PreHEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Chorus/Flanger
Cho/Flng
Wet / Dry
LEQ
HEQ
EQ
Trim
Chorus/Flanger
Feedback
Phaser
Phaser
Wet / Dry
Phaser
Resonance
LFO: Tri / Sine
LFO: Tri / Sine
Normal
Wet Invert
Output Mode
–
+
