Delay
477

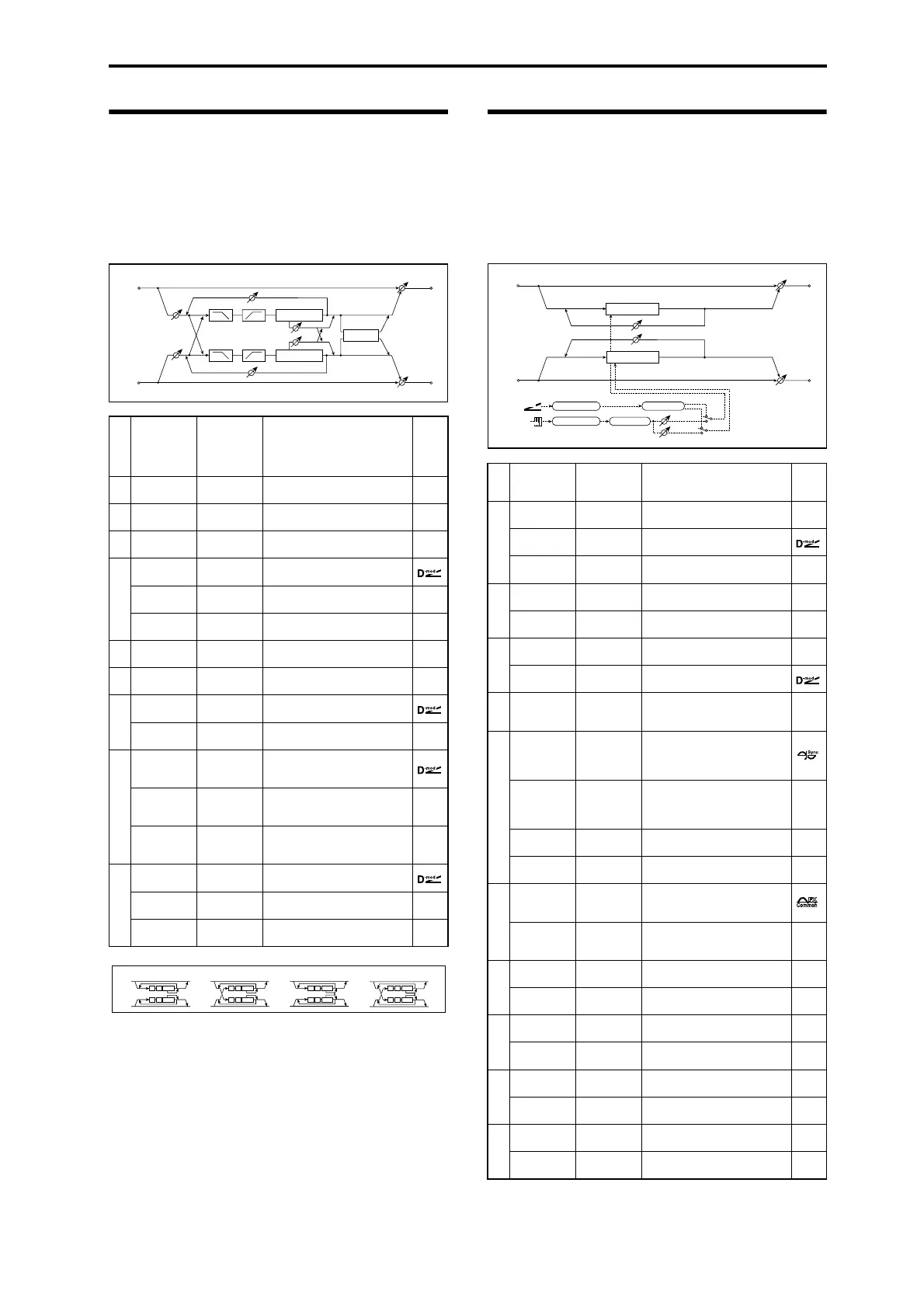

057: St. Multitap Delay
(Stereo Multitap Delay)
The left and right Multitap Delays have two taps
respectively. Changing the routing of feedback and tap
output allows you to create various patterns of complex
effect sounds.
a: Mode
You can change how the left and right delay signals are
panned by modifying the routing of the left and right delay
as shown in the figure above. You need to input different
sounds to each channel in order for this parameter to be
effective.
d: Tap1 Level
This parameter sets the output level of Tap1. Setting a
different level from Tap2 will add a unique touch to a
monotonous delay and feedback.
058: St. Mod Delay
(Stereo Modulation Delay)
This stereo delay uses an LFO to sweep the delay time. The
pitch also varies, creating a delay sound which swells and
shimmers. You can also control the delay time using a
modulation source.
aMode
Normal,
Cross
Feedback,
Cross Pan1,
Cross Pan2
Switches the left and right
delay routing p.477
b
Tap1 Time
[msec]
0.0...1360.0 Sets the Tap1 delay time
c
Tap2 Time
[msec]
0.0...1360.0 Sets the Tap2 delay time
dTap1 Level 0...100
Sets the Tap1 output level
p.477
e
Feedback
(Tap2)
–100...+100 Sets the Tap2 feedback amount
Src Off...Tempo
Selects the modulation source
of the Tap2 feedback amount
Amt –100...+100
Sets the modulation amount of
the Tap2 feedback amount
f
High Damp
[%]
0...100
Sets the damping amount in
the high range p.476
g
Low Damp
[%]
0...100
Sets the damping amount in
the low range p.476
h
Input Level
Dmod [%]
–100...+100
Sets the modulation amount of
the input level p.472
Src Off...Tempo
Selects the modulation source
for the input level p.472
i
Spread –100...+100
Sets the width of the stereo
image of the effect sound
p.476
Src Off...Tempo
Selects the modulation source
of the effect sound’s stereo
image width
Amt –100...+100
Sets the modulation amount of
the effect sound’s stereo image
width
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Feedback
Spread
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Input Level D-mod
Input Level D-mod
High Damp
Low Damp
High Damp
Low Damp
Delay
Delay
Feedback
Tap1 Level
Mode
Mode
(1)
(2)
(1)
(2)
Tap1=(1)
Tap2=(2)
Mode: Normal Mode: Cross Feedback Mode: Cross Pan1 Mode: Cross Pan2
a
Modulation
Mode
LFO, D-mod
Switches between LFO
modulation control and
modulation source control
b
D-mod
Modulation
L/R:+/+,
L/R:+/–
Reversed L/R control by
modulation source p.478
Src Off...Tempo
Selects the modulation source
that controls delay time
Response 0...30
Sets the rate of response to the
modulation source
c
LFO
Waveform
Triangle,
Sine
Selects the LFO Waveform
LFO Shape –100...+100
Changes the curvature of the
LFO Waveform p.449
d
LFO Sync Off, On
Switches LFO reset off/on
p.478
Src Off...Tempo
Selects the modulation source
that resets the LFO
e
LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO p.449
f
MIDI Sync Off, On
When this is on, the LFO speed
is set by BPM, Base Note, and
Times, instead of Frequency
p.448
BPM
MIDI,
40.00...
300.00
MIDI syncs to the system
tempo; 40–300 sets the tempo
manually for this individual
effect p.448
Base Note ...
Selects the type of notes that
specify the LFO speed p.448
Times x1...x32
Sets the number of notes that
specify the LFO speed p.448
g
LFO Type
Individual,
Common1,
Common2
Selects either (individual) LFO,
Common FX LFO1, or Common
LFO2 p.448
CmnLFO
Offset [deg]
–180...+180
Sets the phase offset when
Type = Common 1 or Common
2p.448
h
L LFO Phase
[deg]
–180...+180
Sets the phase obtained when
the left LFO is reset p.478
L Depth 0...200
Sets the depth of the left LFO
modulation
i
R LFO Phase
[deg]
–180...+180
Sets the phase obtained when
the right LFO is reset p.478
R Depth 0...200
Sets the depth of the right LFO
modulation
j
L Delay Time
[msec]
0.0...1000.0
Sets the delay time for the left
channel
L Feedback –100...+100
Sets the feedback amount of
left delay
k
R Delay Time
[msec]
0.0...1000.0
Sets the delay time for the right
channel
R Feedback –100...+100
Sets the feedback amount of
right delay
Left
Right
Feedback
LFO Phase
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
LFO: Tri / Sine
Modulation Mode
D-mod
LFO
D
-mod
Delay
Delay
L/R: +/+ +/–
LFO Shape
Response
LFO Sync
