Modulation and Pitch Shift (Mod./P.Shift)
475
b: Control Mode
c: Preset Type
d: Custom Mix
e: Custom Depth
f: Custom Speed [Hz]
If Control Mode=Preset, you can use c: Preset Type to select
the effect. In this case, the Custom Mix/Depth/Speed
settings are ignored. If Control Mode=Custom, the Custom
Mix/Depth/Speed settings are valid, and the c: Preset Type
setting is ignored.
c: Amt
If Preset Type=V1 and Src=JS+Y, you can set this to +5 and
move JS +Y to control the effect in the order of
V1➝C1➝V2➝C2➝V3➝C3.

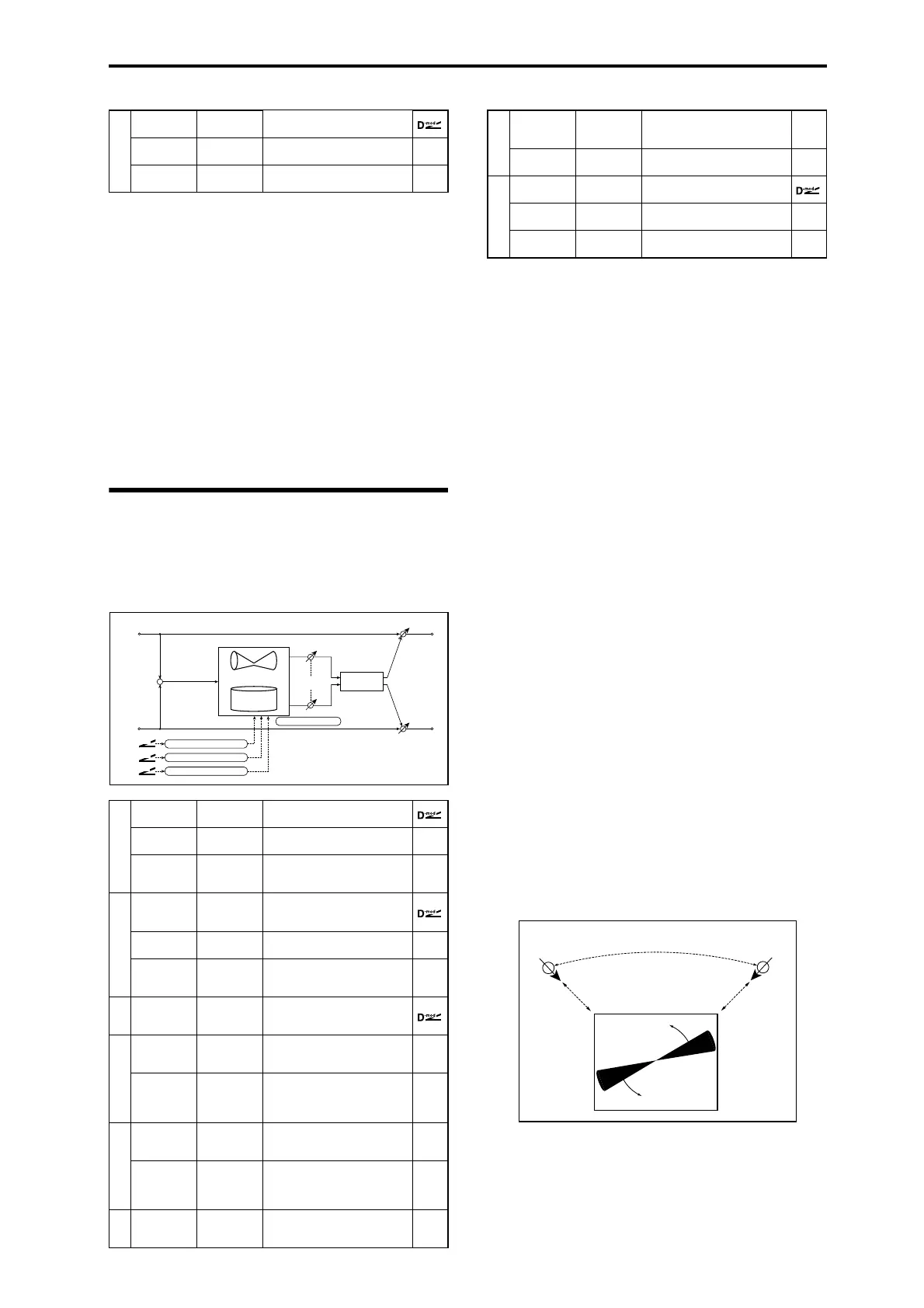

054: Rotary Speaker
This effect simulates a rotary speaker, and obtains a more
realistic sound by simulating the rotor in the low range and
the horn in the high range separately. The effect also
simulates the stereo microphone settings.
a: Mode
This parameter sets how the modulation source switches
between rotation and stop.
When Mode = Toggle, the speaker rotates or stops
alternately each time you press the pedal or move the
joystick. Via MIDI, rotation will switch between start and
stop each time the modulation amount exceeds 64.
When Mode = Moment, the speaker rotates by default, and
stops only when you press the pedal or move the joystick.
Via MIDI, modulation values above 64 make the speaker
rotate, and values below 64 make it stop.
b: Speed Switch
This parameter controls how the rotation speed (slow and
fast) is switched via the modulation source.
When Mode = Toggle, the speed will switch between slow
and fast each time you press the pedal or move the joystick.
Via MIDI, the speed will switch each time the modulation
amount exceeds 64.
When Mode = Moment, the speed is usually slow. It
becomes fast only when you press the pedal or move the
joystick. Via MIDI, modulation values above 64 set the
speed to Fast, and values below 64 set it to Slow.
c: Manual Speed Ctrl
If you wish to control the rotation speed manually, instead
of switching between Slow and Fast, select a modulation
source in the Manual Speed Ctrl parameter. If you don’t
want to use manual control, set this to Off.
d: Horn Acceleration
e: Rotor Acceleration
On a real rotary speaker, the rotation speed accelerates or
decelerates gradually after you switch the speed. The Horn
and Rotor Acceleration parameters set the transition times
between fast and slow speeds.
g: Mic Distance
g: Mic Spread
This is a simulation of stereo microphone settings.
g
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
a
Mode Switch Rotate, Stop
Switches between speaker
rotation and stop
Src Off...Tempo
Selects a modulation source for
Rotate/Stop
Mode
Toggle,
Moment
Sets the switch mode for
Rotate/Stop modulation
p.475
b
Speed
Switch
Slow, Fast
Switches the speaker rotation
speed between slow and fast
p.475
Src Off...Tempo
Selects a modulation source for
Slow/Fast
Mode
Toggle,
Moment
Sets the switch mode for Slow/
Fast modulation
p.475
c
Manual
Speed Ctrl
Off...Tempo
Sets a modulation source for
direct control of rotation speed
p.475
d
Horn
Acceleration
0...100
How quickly the horn rotation
speed in the high range is
switched p.475
Horn Ratio
Stop,
0.50...2.00
Adjusts the (high-range side)
horn rotation speed. Standard
value is 1.00. Selecting “Stop”
will stop the rotation
e
Rotor
Acceleration
0...100
Determines how quickly the
rotor rotation speed in the low
range is switched p.475
Rotor Ratio
Stop,
0.50...2.00
Adjusts the (low-frequency)
rotor speed. Standard value is
1.00. Selecting “Stop” will stop
the rotation
f
Horn/Rotor
Balance
Rotor, 1...99,
Horn
Sets the level balance between
the high-frequency horn and
low-frequency rotor
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
D
-mod
D
-mod
D
-mod
Mode Switch: Rotate/Stop
Speed Switch: Slow/Fast
Manual Speed Control
Speaker Simulation
Mic Distance
Mic Spread
Horn/Rotor
Balance
Horn
Rotary Speaker
Rotor
+
g
Mic Distance 0...100
Sets the distance between the
microphone and rotary speaker
p.475
Mic Spread 0...100
Sets the angle of left and right
microphones p.475
h
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Mic Spread
Microphone
Microphone
Mic Distance
Mic Distance
Rotary Speaker (Top View)
Rotary Speaker - Mic Placement
