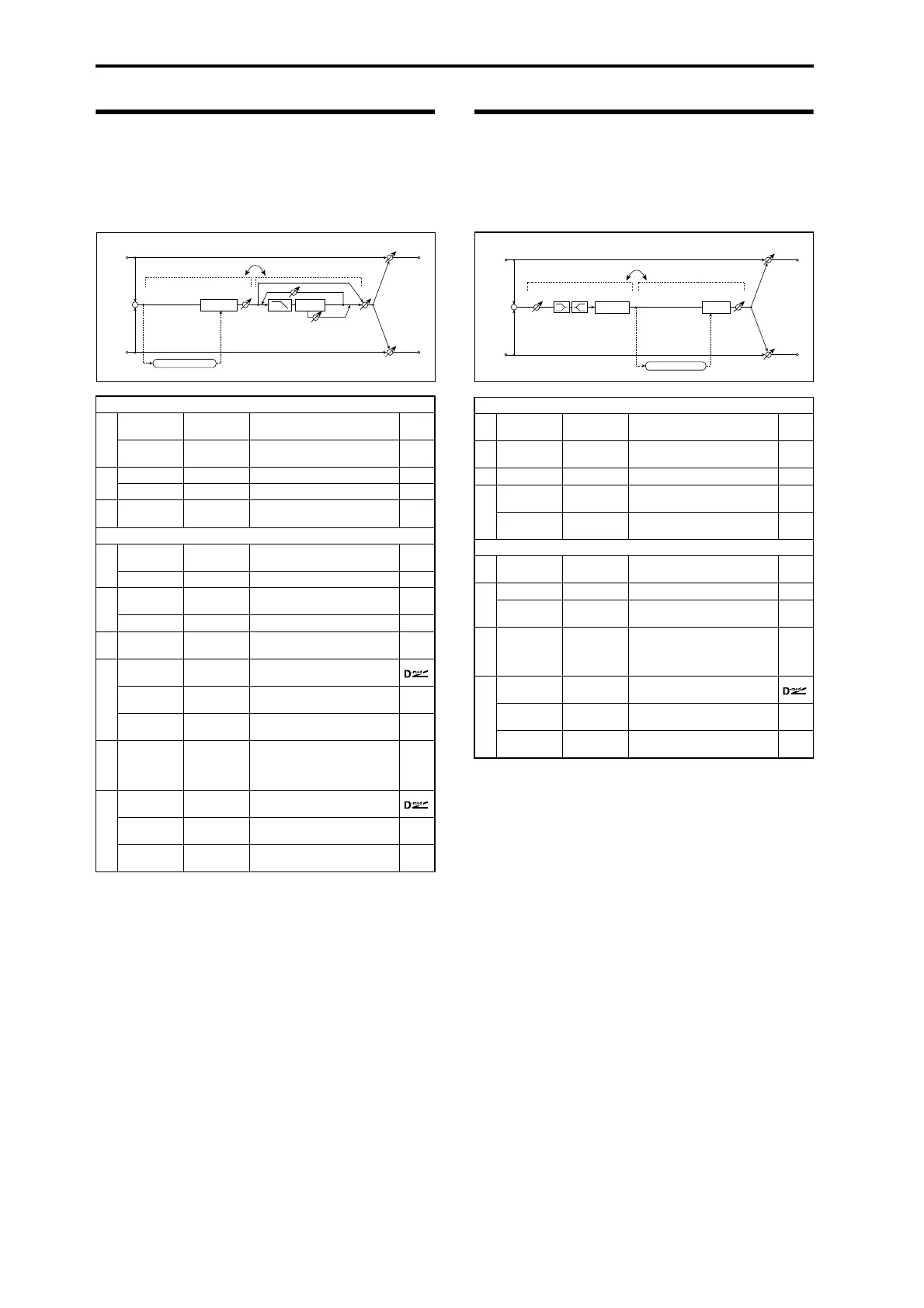

Effect Guide
496
092: Limiter - Mt.Delay
(Limiter - Multitap Delay)
This effect combines a mono limiter and a multitap delay.
You can change the order of the effects.
093: Exciter - Comp
(Exciter - Compressor)
This effect combines a mono exciter and a compressor. You
can change the order of the effects.
LIMITER
a
[L]Ratio
1.0 : 1...
50.0 : 1, Inf : 1
Sets the signal compression
ratio p.494
Threshold
[dB]
–40...0
Sets the level above which the
compressor is applied p.494
b
[L]Attack 1...100 Sets the attack time
Release 1...100 Sets the release time
c
[L]Gain
Adjust [dB]
–Inf,
–38...+24
Sets the limiter output gain
p.494
MULTITAP DELAY
d
[D]Tap1 Time
[msec]
0.0...1360.0 Sets the Tap1 delay time
Tap1 Level 0...100 Sets the Tap1 output levelp.477
e
[D]Tap2 Time
[msec]
0.0...1360.0 Sets the Tap2 delay time
Feedback –100...+100 Sets the Tap2 feedback amount
f
[D]High
Damp [%]
0...100
Sets the damping amount in
the high range p.476
g
[D]Mt.Delay
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the multitap delay effect
balance
Src Off...Tempo
Selects the multitap delay’s
Wet/Dry modulation source
Amt –100...+100
Sets the multitap delay’s Wet/
Dry modulation amount
hRouting
Limiter ➝
Mt.Delay,
Mt.Delay ➝
Limiter
Switches the order of the
limiter and multitap delay
i
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
Limiter
Limiter
Gain Adjust
Envelope - Control
EXCITER
a
[X]Exciter
Blend
–100...+100
Sets the intensity (depth) of the
Exciter effect p.446
b
[X]Emphasis
Frequency
0...70
Sets the frequency range to be
emphasized p.446
c [X]EQ Trim 0...100 Sets the EQ input level
d
[X]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
COMPRESSOR
e
[C]
Sensitivity
1...100 Sets the sensitivity p.441
f
[C]Attack 1...100 Sets the attack level p.441
Output Level 0...100
Sets the compressor output
level p.441
gRouting
Exciter ➝
Comp,
Comp ➝
Exciter
Switches the order of the
exciter and compressor
h
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
LEQ HEQ
EQ Trim
Comp
Output Level
Envelope - Control
Exciter
Exciter
