You can configure a 21-Band Graphic EQ ranging from 80
Hz to 18 kHz if you route three Graphic 7-Band EQ effects in
series, with a setting of 7:Low, 9:Mid, and 11:High for each
EQ.
008: St.Exciter/Enhncr
(Stereo Exciter/Enhancer)
This effect is a combination of the Exciter, which adds a
punch to the sound and the Enhancer, which adds spread
and presence.
a: Exciter Blend
This parameter sets the depth (intensity) of the Exciter effect.
Positive values give a frequency pattern (to be emphasized)
different from negative values.
b: Emphasis Point
This parameter sets the frequency to be emphasized. Higher
values will emphasize lower frequencies.
c: Enhancer Delay L [msec]
d: Enhancer Delay R [msec]
These parameters set the delay time for the Enhancer left
and right channel. Specifying a slightly different delay time
for the left and right channel will add a stereo image, depth,
and width to the sound.

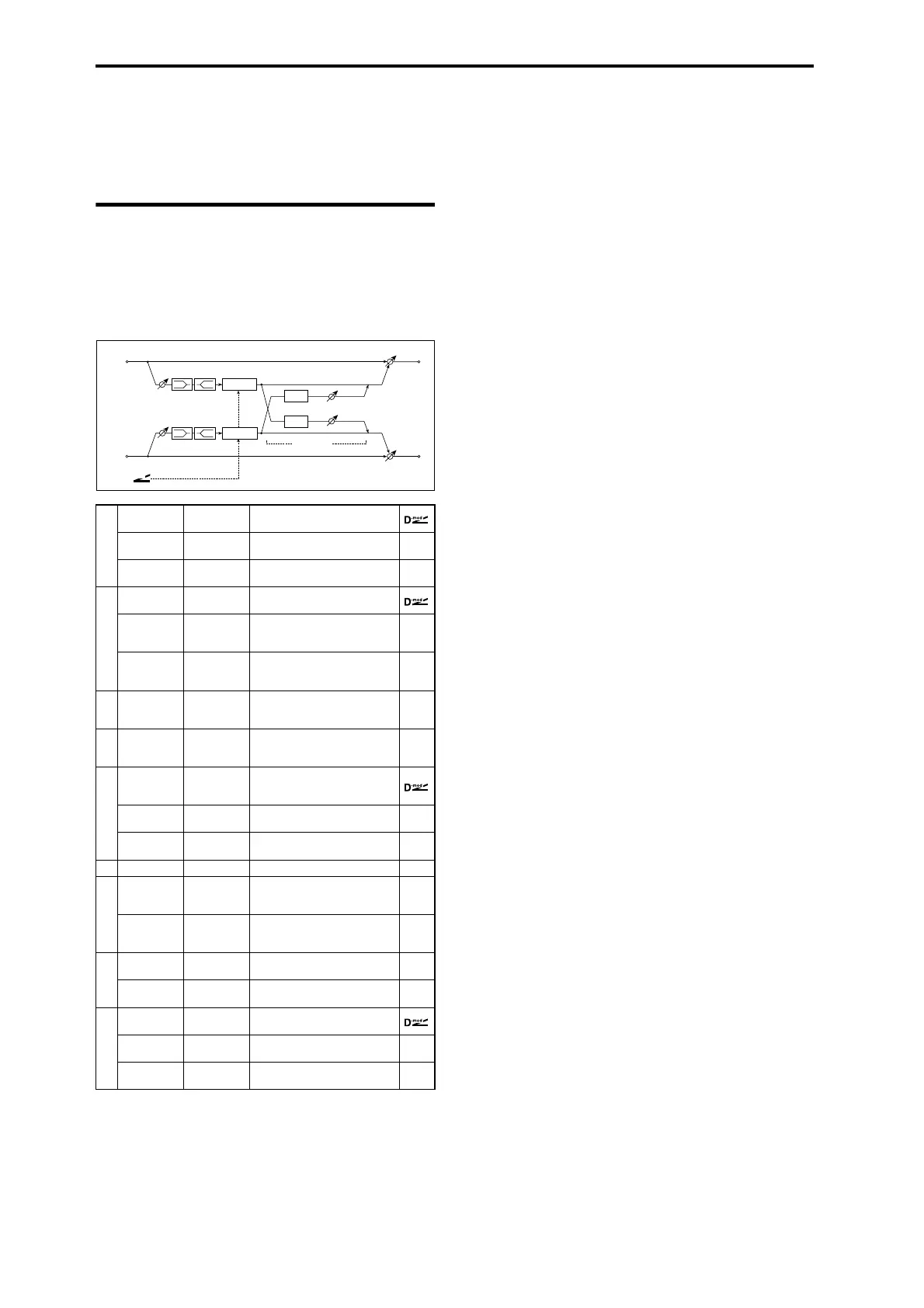

a
Exciter Blend –100...+100
Sets the intensity (depth) of the
Exciter effect p.446
Src Off...Tempo
Selects the modulation source
of the Exciter intensity
Amt –100...+100
Sets the modulation amount of
the Exciter intensity
b
Emphasis
Point
0...70
Sets the frequency to be
emphasized p.446
Src Off...Tempo
Selects the modulation source
of the frequency to be empha-
sized
Amt –70...+70
Sets the amount of modulation
of the frequency to be empha-
sized
c
Enhancer
Delay L
[msec]
0.0...50.0
Sets the delay time for the
Enhancer left channel p.446
d
Enhancer
Delay R
[msec]
0.0...50.0
Sets the delay time for the
Enhancer right channel p.446
e
Enhancer
Depth
0...100
Sets the determines to what
degree the Enhancer effect is
applied
Src Off...Tempo
Selects the modulation source
of the Enhancer width
Amt –100...+100
Sets the modulation amount of
the Enhancer width
f EQ Trim 0...100 Sets the 2-band EQ input level
g
Pre LEQ Fc
Low,
Mid-Low
Selects the cutoff frequency
(low or mid-low) of the low-
range equalizer
Pre HEQ Fc
High,
Mid-High
Selects the cutoff frequency
(high or mid-high) of the high-
range equalizer
h
Pre LEQ Gain
[dB]
–15.0...+15.0 Sets the gain of the Low EQ
Pre HEQ Gain
[dB]
–15.0...+15.0 Sets the gain of the High EQ
i
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
EQ Trim
LEQ HEQ
EQ Trim
Delay
Delay
Depth
D
-mod
Exciter
Exciter
Enhancer
