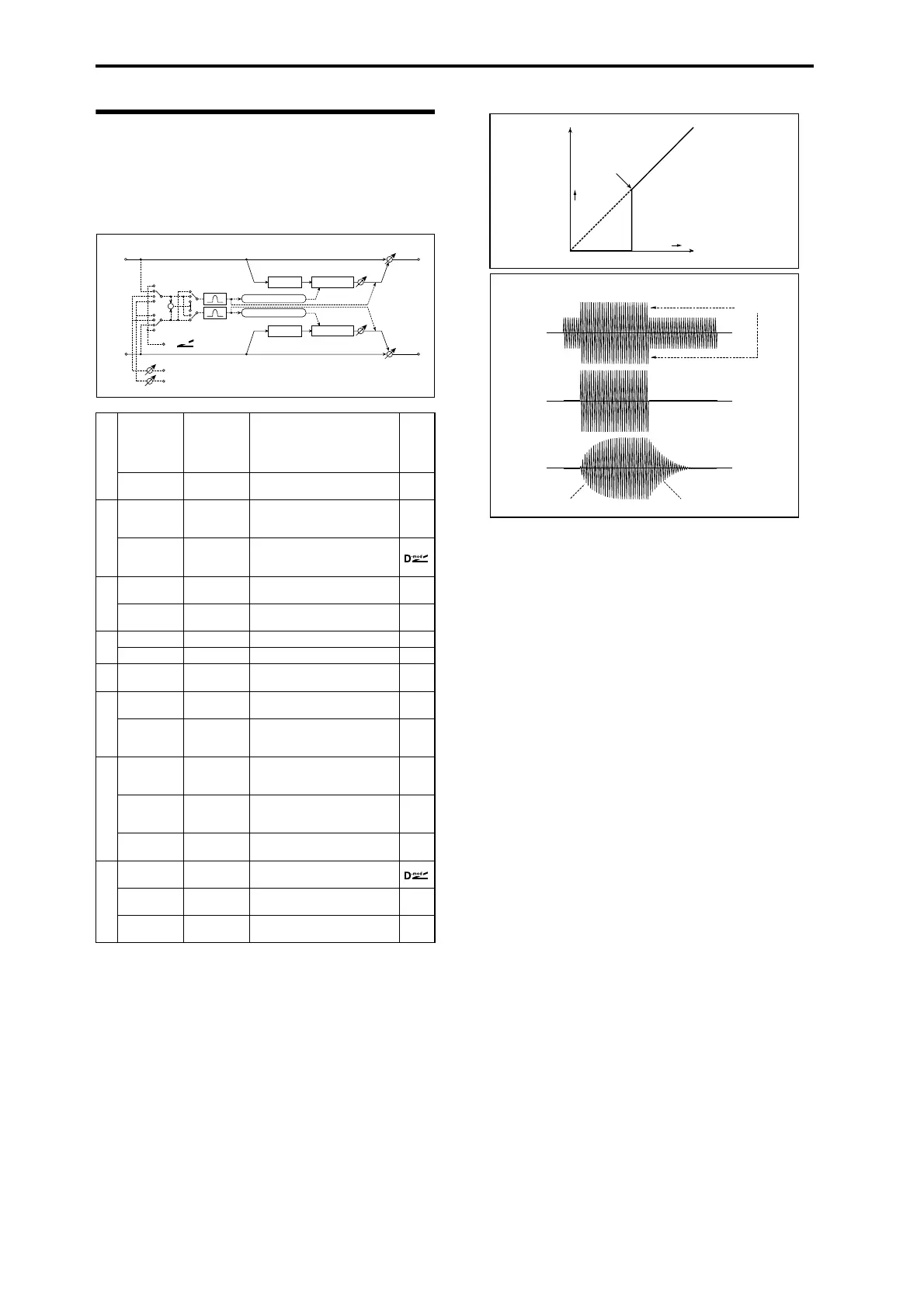

005: Stereo Gate
This effect mutes the input signal when it falls below a
specified level. You can also invert the on/off status of the
gate, or use note-on/off messages to turn the gate on/off
directly.
c: Threshold
d: Attack
d: Release
Threshold specifies the level at which gating occurs when
Envelope Select is set to L/R Mix, L Only, or R Only.
Attack and Release specify the attack time and release time
of the gate.
c: Polarity
This inverts the polarity of the gate on/off operation. With
the “–” setting, the gate will close when the input signal
exceeds the specified level. The direction in which the
modulation source opens or closes the gate will also be
reversed.
e: Delay Time [msec]
This sets the delay time for the input to the gate. When using
shorter Attack Time settings, you can lengthen the Delay
Time so that the sound is input after the gate opens.
a
Envelope
Source
D-mod,
Input,
FX Control 1,
FX Control 2
Selects the source to control
the gate: D-mod control, or use
the input signal or FX Control
Bus 1 or 2 as a trigger
p.442
Fx Ctrl Trim 0...100
Sets the trigger input level from
FX Control Bus 1/2
b
Envelope
Select
L/R Mix,
L Only,
R Only
Selects the control signal: left
and right linked, left only, or
right only p.442
Src Off...Tempo
Selects the source that will
control the gate when
Envelope Src = D-mod
c
Threshold 0...100
Sets the level at which gating is
applied p.444
Polarity +, –
Switches the polarity of gating
p.444
d
Attack 1...100 Sets the attack time p.444
Release 1...100 Sets the release time p.444
e
Delay Time
[msec]
0...100
Sets the delay time for the gate
input p.444
f
Side PEQ
Insert
Off, On
Switches the trigger signal
equalizer on/off p.442
Trigger
Monitor
Off, On
Switches between monitoring
the effect output and the
trigger signal p.442
g
Side PEQ
Cutoff [Hz]
20...12.00k
Sets the center frequency of
the equalizer for the trigger
signal p.442
Q 0.5...10.0
Sets the bandwidth of the
equalizer for the trigger signal
p.442
Gain [dB] –18.0...+18.0
Sets the gain of the equalizer
for the trigger signal p.442
h
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
FX Control BUS 1
FX Control BUS 2
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Envelope Source
Gain Adjust
Gain Adjust
Side PEQ
Envelope - Control
Envelope - Control
Trigger Monitor
+
Envelope Select
Gate
Delay
Gate
Delay
D
-mod
Input Level
Output Level
Threshold
Louder
Louder
Threshold
Attack=1
Release=1
Attack=100
Release=100
Dry
Wet
Wet
Attack
Release
Gate - Attack / Release
Gate - Threshold
