PROG P4: Amp/EQ 4–8: EQ
65
4–8: EQ
This three-band EQ, with sweepable mid, is shared by both
of the Program’s oscillators 1, 2.
In Combinations and Sequencers, each timbre and track has
its own individual EQ. You can import the Program’s EQ
settings into Tracks and Timbres by using the Combination
and Sequencer “Auto Load Program EQ” options.

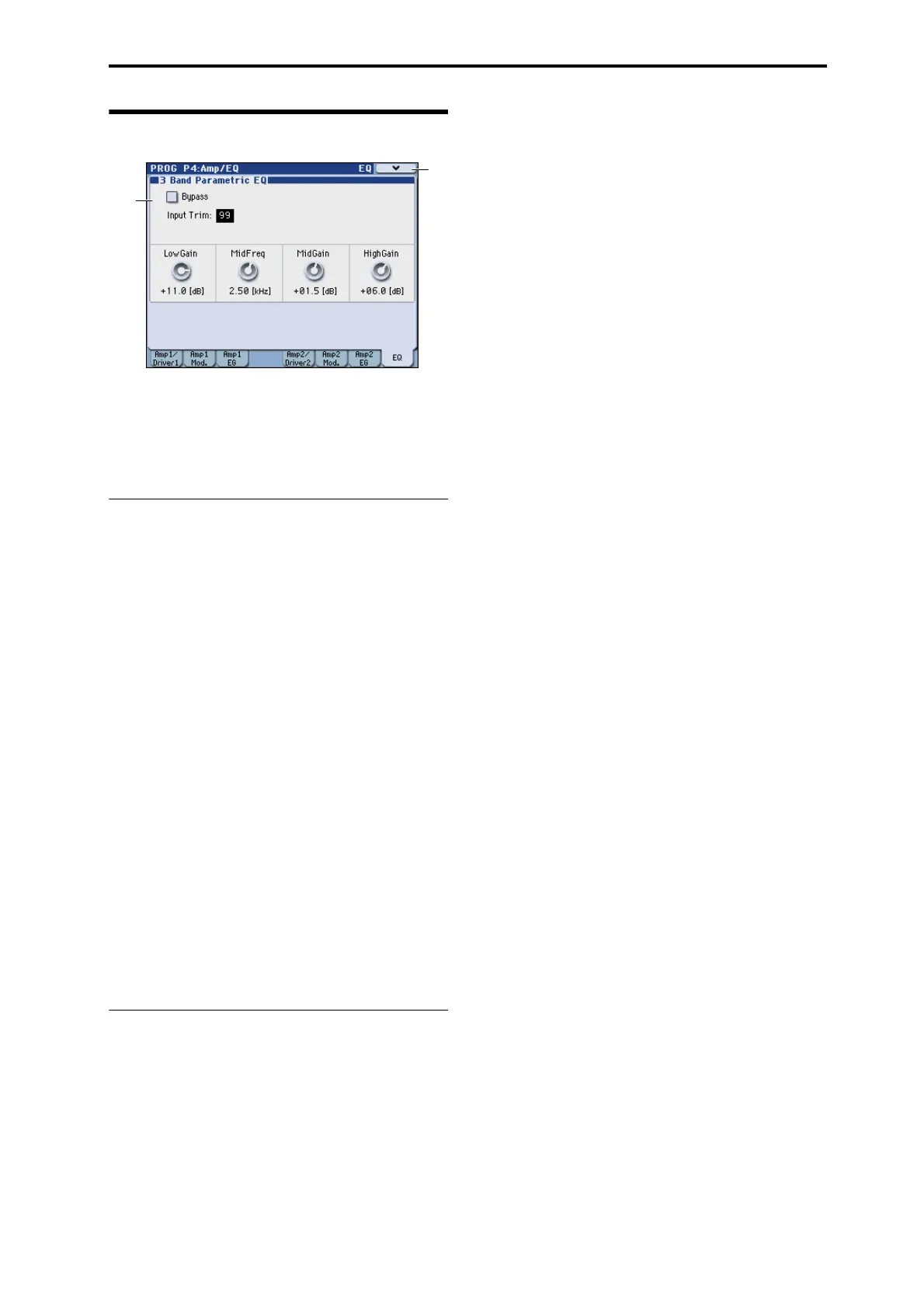

4–8a: 3 Band Parametric EQ
Bypass [On, Off]
When Bypass is checked, all of the EQ will be disabled,
including the Input Trim.
Bypass can be convenient for comparing the results of the
EQ with the original signal.
Input Trim [00...99]
This controls the volume level going into the EQ. The setting
corresponds to the volume; 50 corresponds to –12 dB, and 25
corresponds to –24 dB.
High settings of the Low, Mid, and High Gain controls can
cause substantial increases in the overall level. You can
compensate for this by turning down the input trim.
Low Gain [–18.0...+00.0...+18.0dB]
This controls the gain of the 80 Hz Low Shelf EQ, in
increments of 0.5 dB.
Mid Frequency [100Hz...10.00kHz]
This sets the center frequency for the Mid sweep EQ.
Mid Gain [–18.0...+00.0...+18.0dB]
This controls the gain of the Mid Sweep EQ, in increments of
0.5 dB.
High Gain [–18.0...+00.0...+18.0dB]
This controls the gain of the 10 kHz High Shelf EQ, in
increments of 0.5 dB.
▼4–8: Menu Command
• 0: Write Program ☞p.106
• 1: Panel–SW Solo Mode On ☞p.106
• 2: Exclusive Solo ☞p.107
• 3: Copy Oscillator ☞p.111
• 4: Swap Oscillator ☞p.111
For more information, please see “Program: Menu
Command” on page 106.
