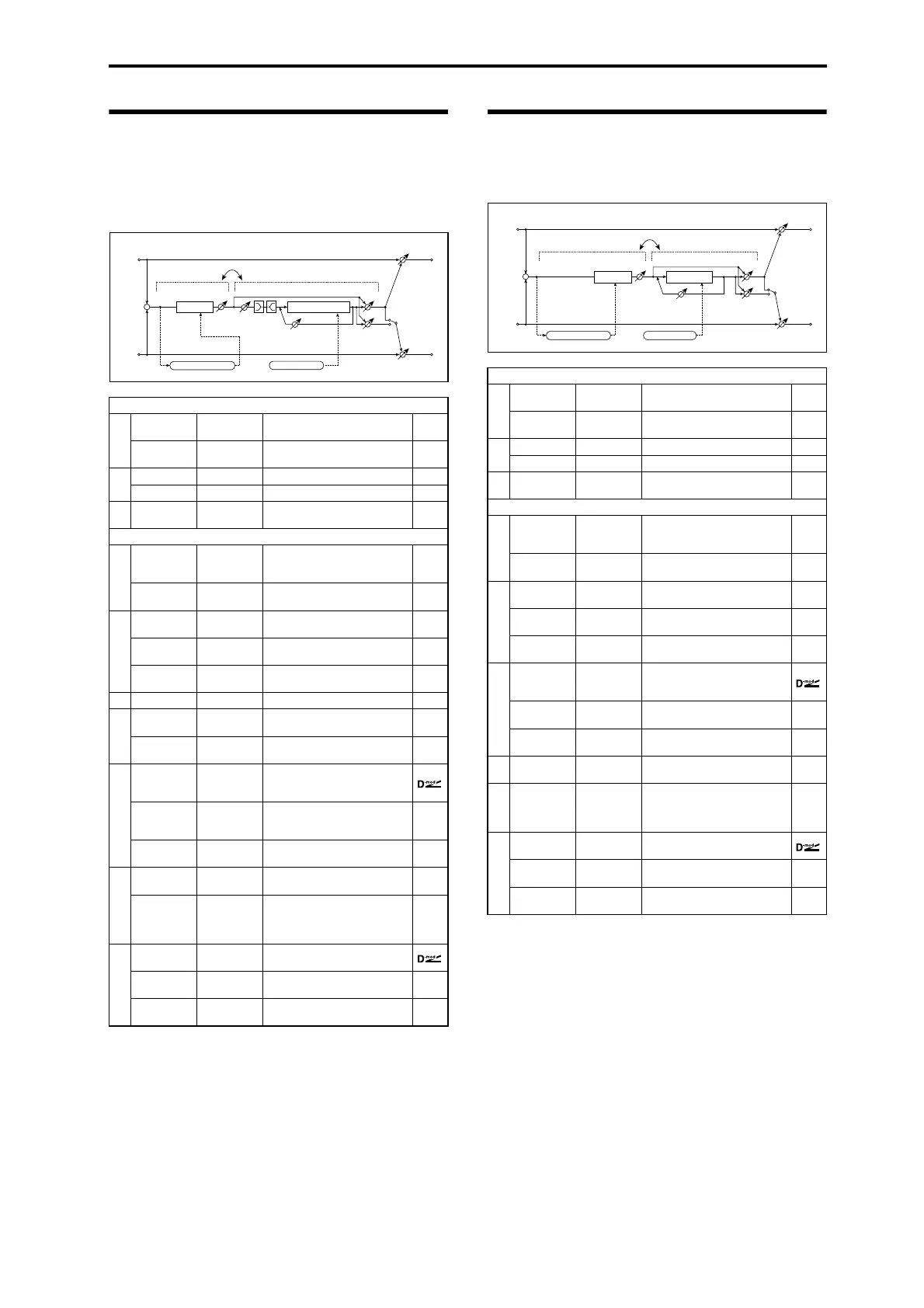

Mono-Mono Serial (Mono-Mono)
495
090: Limiter - Cho/Flng
(Limiter - Chorus/Flanger)
This effect combines a mono limiter and a chorus/flanger.
You can change the order of the effects.
091: Limiter - Phaser
This effect combines a mono limiter and a phaser. You can
change the order of the effects.
LIMITER
a
[L]Ratio
1.0 : 1...
50.0 : 1, Inf : 1
Sets the signal compression
ratio p.494
Threshold
[dB]
–40...0
Sets the level above which the
compressor is applied p.494
b
[L]Attack 1...100 Sets the attack time
Release 1...100 Sets the release time
c
[L]Gain
Adjust [dB]
–Inf,
–38...+24
Sets the limiter output gain
p.494
CHORUS/FLANGER
d
[F]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle,
Sine
Selects the LFO Waveform
e
[F]Delay
Time [msec]
0.0...1350.0 Sets the delay time
Depth 0...100
Sets the depth of LFO
modulation
Feedback –100...+100
Sets the feedback amount
p.461
f [F]EQ Trim 0...100 Sets the EQ input level
g
[F]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
h
[F]Cho/Flng
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the effect balance of the
chorus/flanger
p.450, p.461
Src Off...Tempo
Selects the Wet/Dry
modulation source for the
chorus/flanger
Amt –100...+100
Sets the Wet/Dry modulation
amount for the chorus/flanger
i
[F]Output
Mode
Normal,
Wet Invert
Selects the output mode for the
chorus/flanger p.492
Routing
Limiter ➝
Flanger,
Flanger ➝
Limiter
Switches the order of the
limiter and chorus/flanger
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Chorus/Flanger
Feedback
Cho/Flng Wet / Dry
Normal
Wet Invert
Output Mode
–
+
Limiter
Limiter
Gain Adjust
Envelope - Control
LEQ
HEQ
EQ Trim
Chorus/Flanger
LFO: Tri / Sine
LIMITER
a
[L]Ratio
1.0 : 1...
50.0 : 1, Inf : 1
Sets the signal compression
ratio p.494
Threshold
[dB]
–40...0
Sets the level above which the
compressor is applied p.494
b
[L]Attack 1...100 Sets the attack time
Release 1...100 Sets the release time
c
[L]Gain
Adjust [dB]
–Inf,
–38...+24
Sets the limiter output gain
p.494
PHASER
d
[P]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle,
Sine
Selects the LFO Waveform
e
[P]Manual 0...100
Sets the frequency to which the
effect is applied
Depth 0...100
Sets the depth of LFO
modulation
Resonance –100...+100
Sets the resonance amount
p.463
f
[P]Phaser
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the phaser effect balance
p.450, p.463
Src Off...Tempo
Selects the phaser’s Wet/Dry
modulation source
Amt –100...+100
Sets the phaser’s Wet/Dry
modulation amount
g
[P]Output
Mode
Normal,
Wet Invert
Selects the phaser output
mode p.489
hRouting
Limiter ➝
Phaser,
Phaser ➝
Limiter
Switches the order of the
limiter and phaser p.492
i
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Limiter
Limiter
Gain Adjust
Envelope - Control
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
