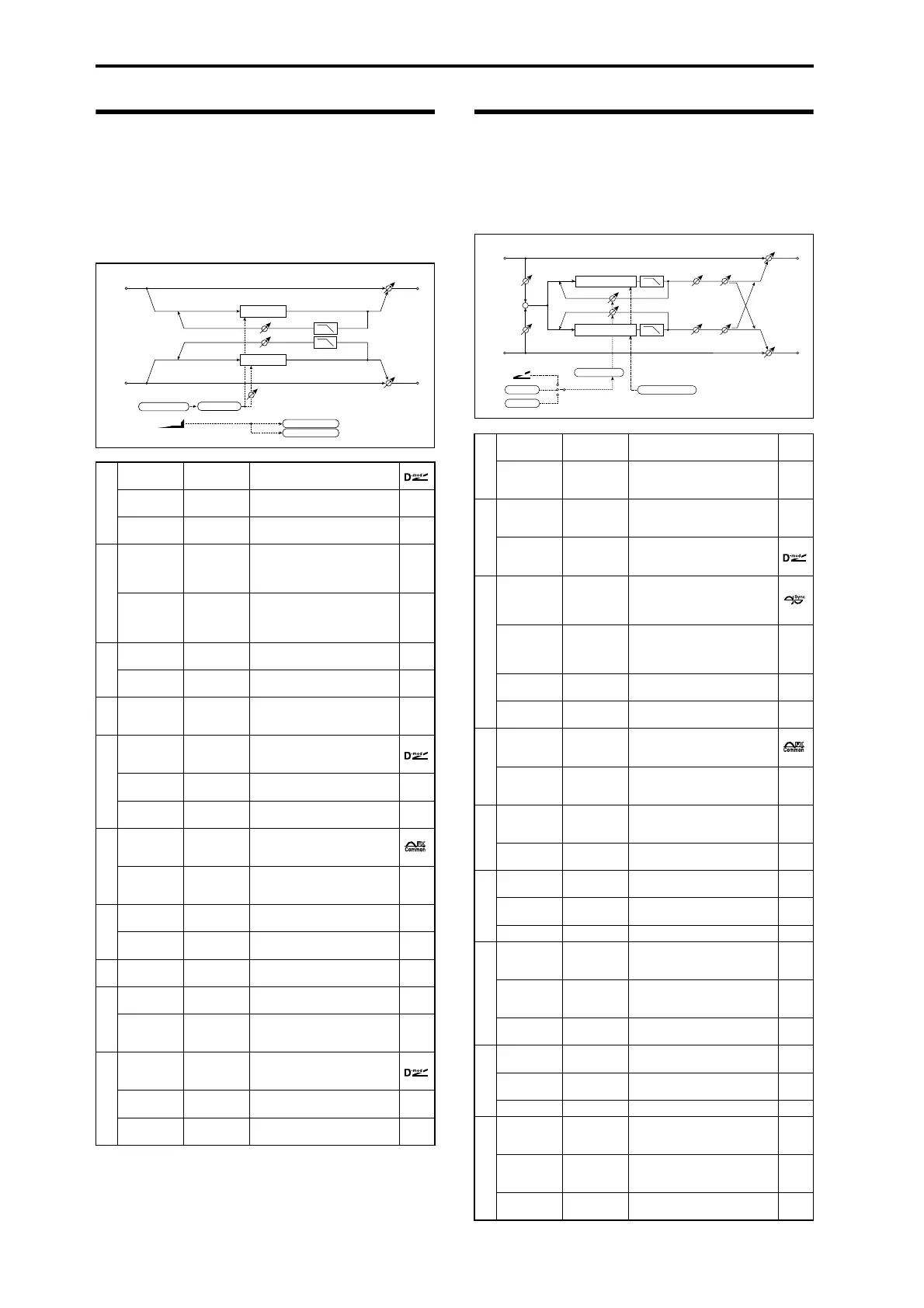

039: St. Auto Fade Mod.
(Stereo Auto Fade Modulation)
This stereo chorus/flanger effect enables you to control the
LFO speed and effect balance using auto fade, and you can
spread the sound by offsetting the phase of the left and right
LFOs from each other.
040: 2Voice Resonator
This effect resonates the input signal at a specified pitch. You
can set the pitch, output level, and pan settings for two
resonators individually. You can control the resonance
intensity via an LFO.
a
AUTOFADE
Src
Off...Tempo
Selects the modulation source
that starts AutoFade p.465
Fade-In
Delay [msec]
00...2000
Sets the fade-in delay time
p.465
Rate 1...100
Sets the rate of fade-in
p.465
b
LFO
Frequency
Mod
D-mod,
AUTOFADE
Switches between D-mod and
AUTOFADE for the LFO
frequency modulation
p.465
Wet/Dry
Mod
D-mod,
AUTOFADE
Switches between D-mod and
AUTOFADE for the effect
balance modulation
p.465
c
LFO
Waveform
Triangle,
Sine
Selects the LFO Waveform
LFO Shape –100...+100
Changes the curvature of the
LFO Waveform p.449
d
LFO Phase
[degree]
–180...+180
Sets the LFO phase difference
between the left and right
p.449
e
LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
Src Off...Tempo
Selects a modulation source for
LFO speed
Amt
–20.00...
+20.00
Sets the modulation amount of
LFO speed
f
LFO Type
Individual,
Common1,
Common2
Selects either (individual) LFO,
Common FX LFO1, or Common
LFO2 p.448
CmnLFO
Offset [deg]
–180...+180
Sets the phase offset when
Type = Common 1 or Common
2p.448
g
L Delay Time
[msec]
0.0...500.0 Sets the left channel delay time
R Delay Time
[msec]
0.0...500.0
Sets the right channel delay
time
hDepth 0...200
Sets the depth of LFO
modulation
i
Feedback –100...+100
Sets the feedback amount
p.461
High Damp
[%]
0...100
Sets the feedback damping
amount in the high range
p.461
j
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the balance between the
effect and the dry input
p.450, p.461
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
AutoFade
LFO Frequency
Wet / Dry
Delay
Delay
Left
Right
Feedback
LFO Shape
LFO Phase
LFO: Tri / Sine
Wet / Dry
Wet / Dry
High Damp
Stereo In - Stereo Out
a
Control
Mode
Manual, LFO,
D-mod
Switches the controls of
resonance intensity p.467
LFO/D-mod
Invert
Off, On
Reverses the Voice 1 and 2
control when LFO/D-mod is
selected p.467
b
LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
D-mod Src Off...Tempo
Selects the modulation source
that controls resonance
intensity
c
MIDI Sync Off, On
When this is on, the LFO speed
is set by BPM, Base Note, and
Times, instead of Frequency
p.448
BPM
MIDI,
40.00...
300.00
MIDI syncs to the system
tempo; 40–300 sets the tempo
manually for this individual
effect p.448
Base Note ...
Selects the type of notes that
specify the LFO speed p.448
Times x1...x32
Sets the number of notes that
specify the LFO speed p.448
d
LFO Type
Individual,
Common1,
Common2
Selects either (individual) LFO,
Common FX LFO1, or Common
LFO2 p.448
CmnLFO
Offset [deg]
–180...+180
Sets the phase offset when
Type = Common 1 or Common
2p.448
e
Mod. Depth –100...+100
Sets the amount of resonance
intensity control via LFO/D-
mod
Trim 0...100
Sets the input level at the
resonator
f
Voice1: Pitch C0...B8
Sets the voice1 Pitch for
resonance p.467
Fine [cents] –50...+50
Fine-adjusts the voice 1 pitch
for resonance p.467
Level 0...100 Sets the Voice1 output level
g
Voice1:
Resonance
–100...+100
Sets the intensity of resonance
when Control Mode = Manual
p.467
High Damp
[%]
0...100
Sets the damping amount of
resonant sound in the high
range p.467
Pan
L6...L1, C,
R1...R6
Sets the Voice1 stereo image
h
Voice2: Pitch C0...B8
Sets the voice 2 Pitch for
resonance p.467
Fine [cents] –50...+50
Fine-adjusts the voice 2 pitch
for resonance p.467
Level 0...100 Sets the Voice2 output level
i
Voice2:
Resonance
–100...+100
Sets the intensity of resonance
when Control Mode = Manual
p.467
High Damp
[%]
0...100
Sets the damping amount of
resonant sound in the high
range p.467
Pan
L6...L1, C,
R1...R6
Sets the Voice2 stereo image
Left
Right
Resonance
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
High Damp
High Damp
Trim
Trim
+
Level
Level
Pan
Pan
Control Mode
D
-mod
LFO
Manual
Invert: On/Off
Resonator
Resonator
Pitch, Fine [cents]
