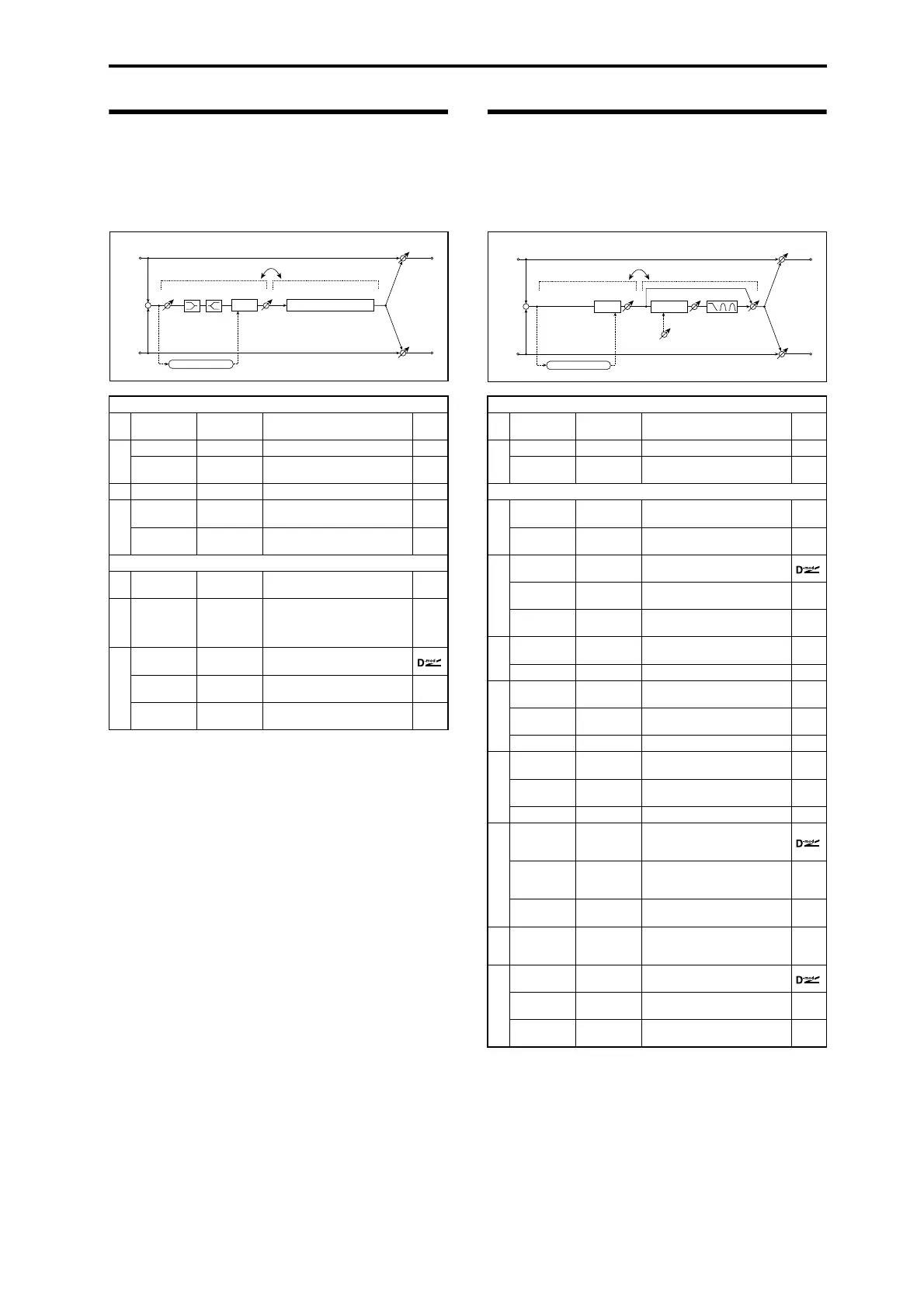

Mono-Mono Serial (Mono-Mono)
491
083: Comp - Amp Sim
(Compressor - Amp Simulation)
This effect combines a mono compressor and an amp
simulation. You can change the order of the effects.
084: Comp - OD/HiGain
(Compressor - Overdrive/Hi.Gain)
This effect combines a mono compressor and an overdrive/
high-gain distortion. You can change the order of the effects.
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity p.441
b
[C]Attack 1...100 Sets the attack level p.441
Output Level 0...100
Sets the compressor output
level p.441
c [C]EQ Trim 0...100 Sets the EQ input level
d
[C]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
AMP SIM
e
[A]Amplifier
Type
SS, EL84, 6L6
Selects the type of guitar
amplifier
fRouting
Comp ➝
Amp,
Amp ➝
Comp
Switches the order of the
compressor and amp
simulation
g
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Amp Simulation
Amp Simulation Filter
LEQ HEQ
EQ Trim
Output Level
Envelope - Control
Comp
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity p.441
b
[C]Attack 1...100 Sets the attack level p.441
Output Level 0...100
Sets the compressor output
level p.441
OD/HI-GAIN
c
[O]
Drive Mode
Overdrive,
Hi-Gain
Switches between overdrive
and high-gain distortion
Drive 1...100
Sets the degree of distortion
p.453
d
[O]Output
Level
0...50
Sets the overdrive output level
p.453
Src Off...Tempo
Selects the modulation source
for the overdrive output level
Amt –50...+50
Sets the modulation amount of
the overdrive output level
e
[O]Low
Cutoff [Hz]
20...1.00k
Sets the center frequency for
Low EQ (shelving type)
Gain [dB] –18...+18 Sets the gain of Low EQ
f
[O]Mid1
Cutoff [Hz]
300...10.00k
Sets the center frequency for
Mid/High EQ 1 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 1 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 1
g
[O]Mid2
Cutoff [Hz]
500...20.00k
Sets the center frequency for
Mid/High EQ 2 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 2 p.445
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 2
h
[O]Wet/Dry
Dry,
1 : 99...99 : 1,
Wet
Sets the overdrive effect
balance
Src Off...Tempo
Selects the Wet/Dry
modulation source for the
overdrive
Amt –100...+100
Sets the Wet/Dry modulation
amount for the overdrive
iRouting
Comp ➝
OD/HG, OD/
HG ➝ Comp
Switches the order of the
compressor and overdrive
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Compressor
Output Level
Envelope - Control
Comp
Wet / Dry
