9/29/09 System 824 Views 5-37

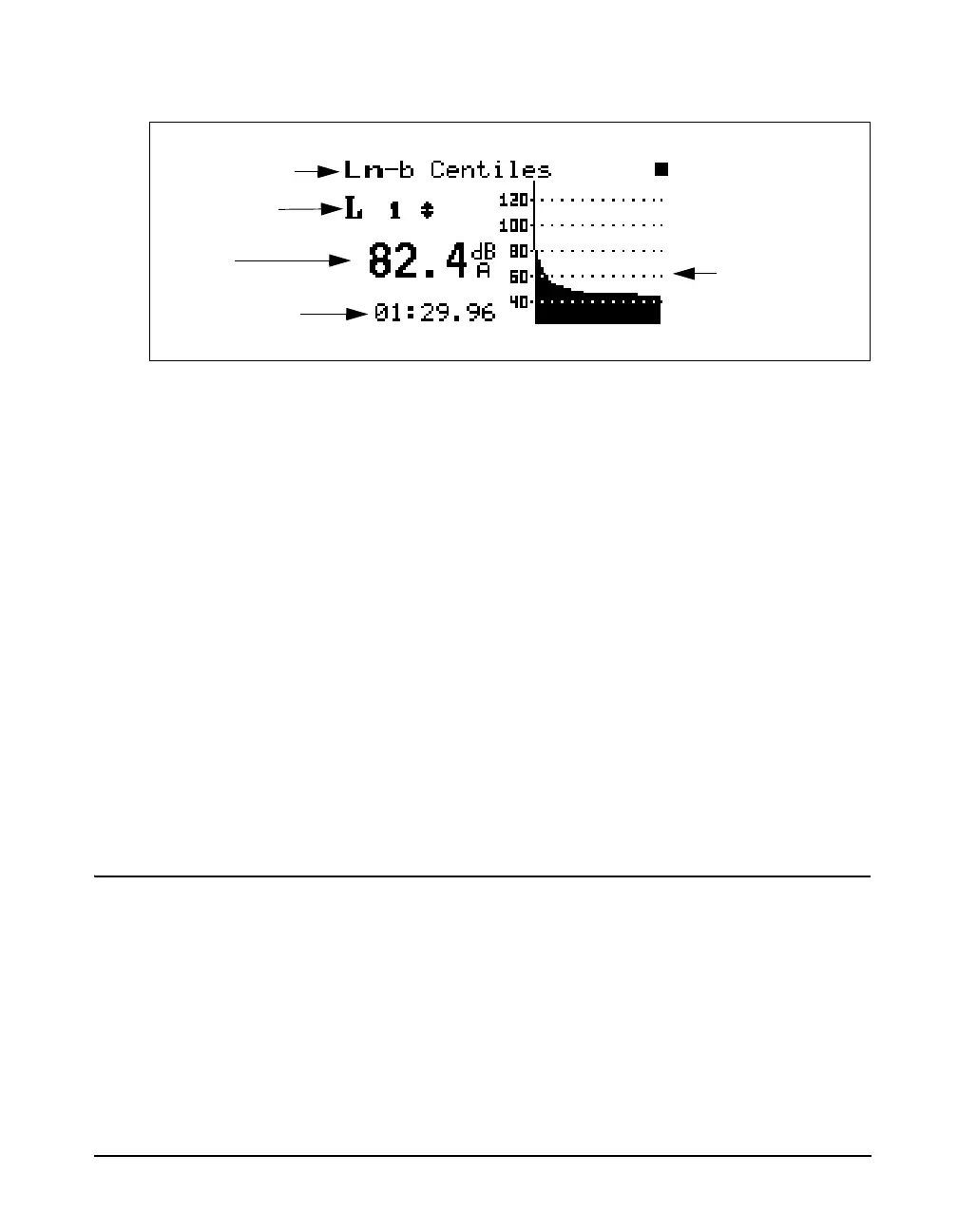

The following explains each of the display’s components:
Display label - Shows the current display (for example,
“Ln-b Centiles”).
Current% - Selects percentage of Ln to display (1 to 99),
using the
u and d arrow keys to move from one
percentile to another.
Ln - This display shows the current Ln value.
Elapsed time - Shows the elapsed run time accumulated
since the last current reset.
Ln graph- Graph of Ln’s from 1 to 99 (1 being on the left,
99 on the right).
NOTE: There are two Lns per bar in the
graph. The higher of the two is graphed.
Stats Views
The Stats View has three displays which can be accessed by
simply selecting Stats with the
c Check key from within
the main View menu then cycling through the views with the
randlarrow keys until the desired display appears.
Display label
Ln graph
Ln
Elapsed Time
Current%
