• The measurement will repeat 2 more times before stop-
ping for a total of 3 measurements.
As the settings are changed the Trigger Setup display will
show the relevant settings in an easy to read form.
Autostore Views
If triggering is enabled, the record is
stored when the End condition is met
or when the
s R/S key stops the
measurement. If triggering is not
enabled the record is stored when the
s R/S key stops the measurement.
An Autostore is a historical record of triggered data that is
stored automatically when the Autostore setting is set to Ye s.
The Autostore includes summary data (Leq, Max, and Min
spectra) covering the entire duration of the Autostore and,
optionally, ByTime spectra. RT-60 analysis of the ByTime
spectral time history is also provided.
If you just came from the Trigger
Setup display, press the
lleft
arrow key to back out to the main
VIEW menu.
The Autostore Display Views are accessed through the
V
VIEW key. To select the Autostore Display Views, press the
V VIEW key and the u up and ddown arrow keys to

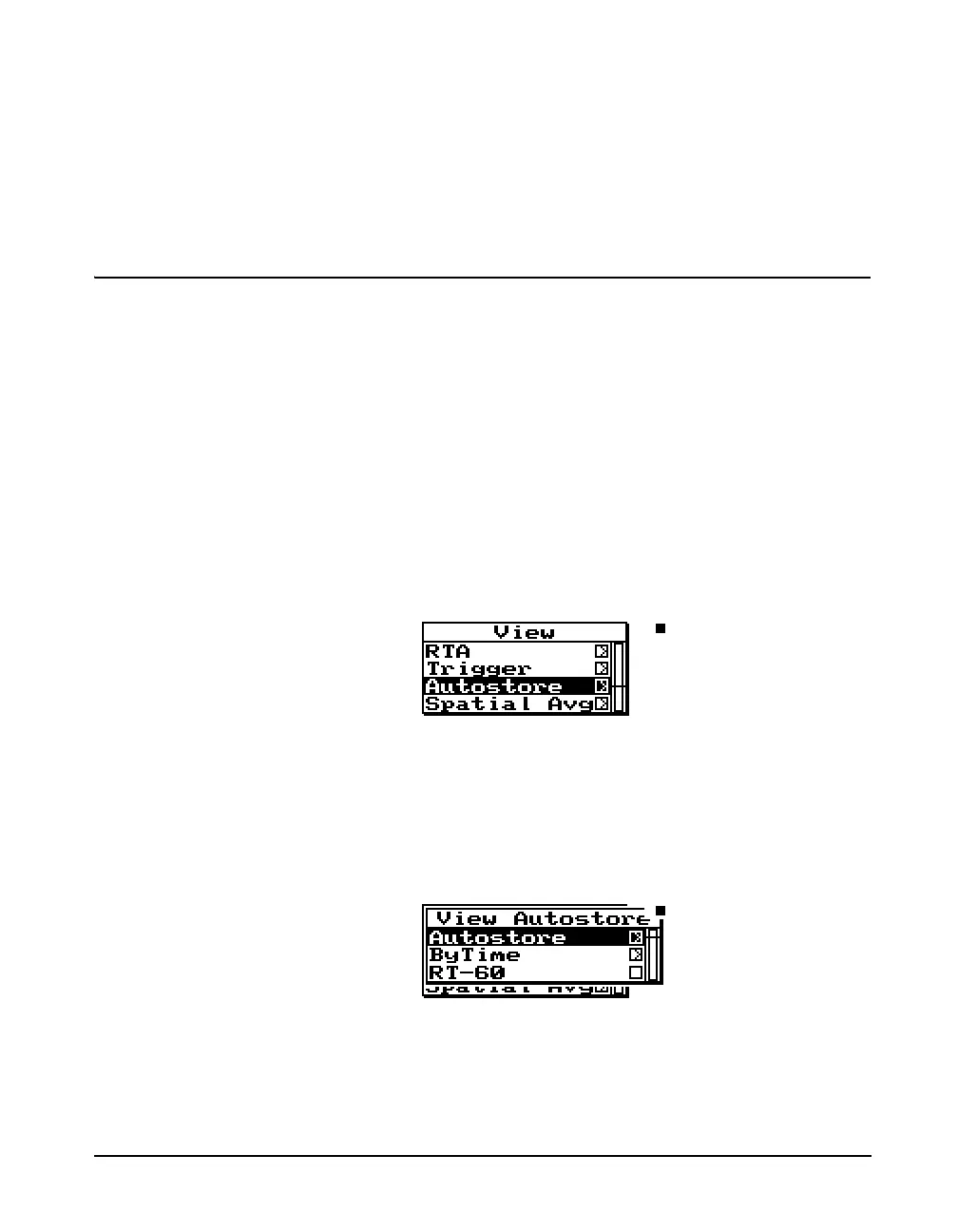

highlight “Autostore”. The menu will appear like this:
Now press the
rright arrow key to bring up the “View
Autostore” view menu.
Press the
rright arrow key to select the available
Autostore summary data views which are Leq, Max, and
