Larson Davis 824 - Using the AC Power Adapter

1-20 824 Reference Manual 9/29/09

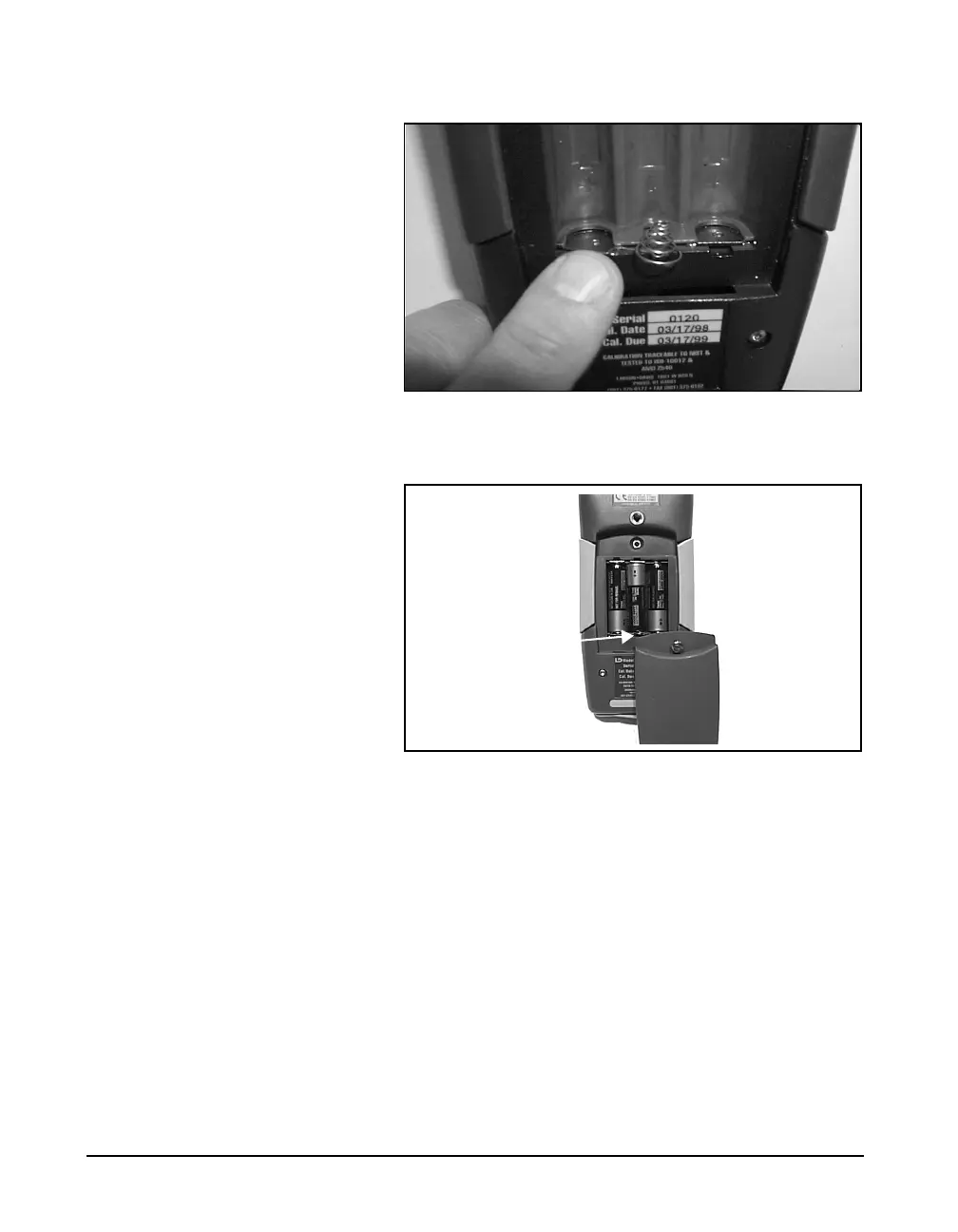

Figure 1-8 Battery Terminal Assembly orientation.
Figure 1-9 Battery cover and compartment with alkaline
batteries and Terminal Assembly installed. (Note location of
Terminal Assembly.)
Using the AC Power Adapter You may use an external power source via the external
power connector using the provided power adapter. The
System 824 accepts 6 to 15 VDC and is internally fused at
0.5 A.
Terminal
Assembly
