5-50 824 Reference Manual 9/29/09

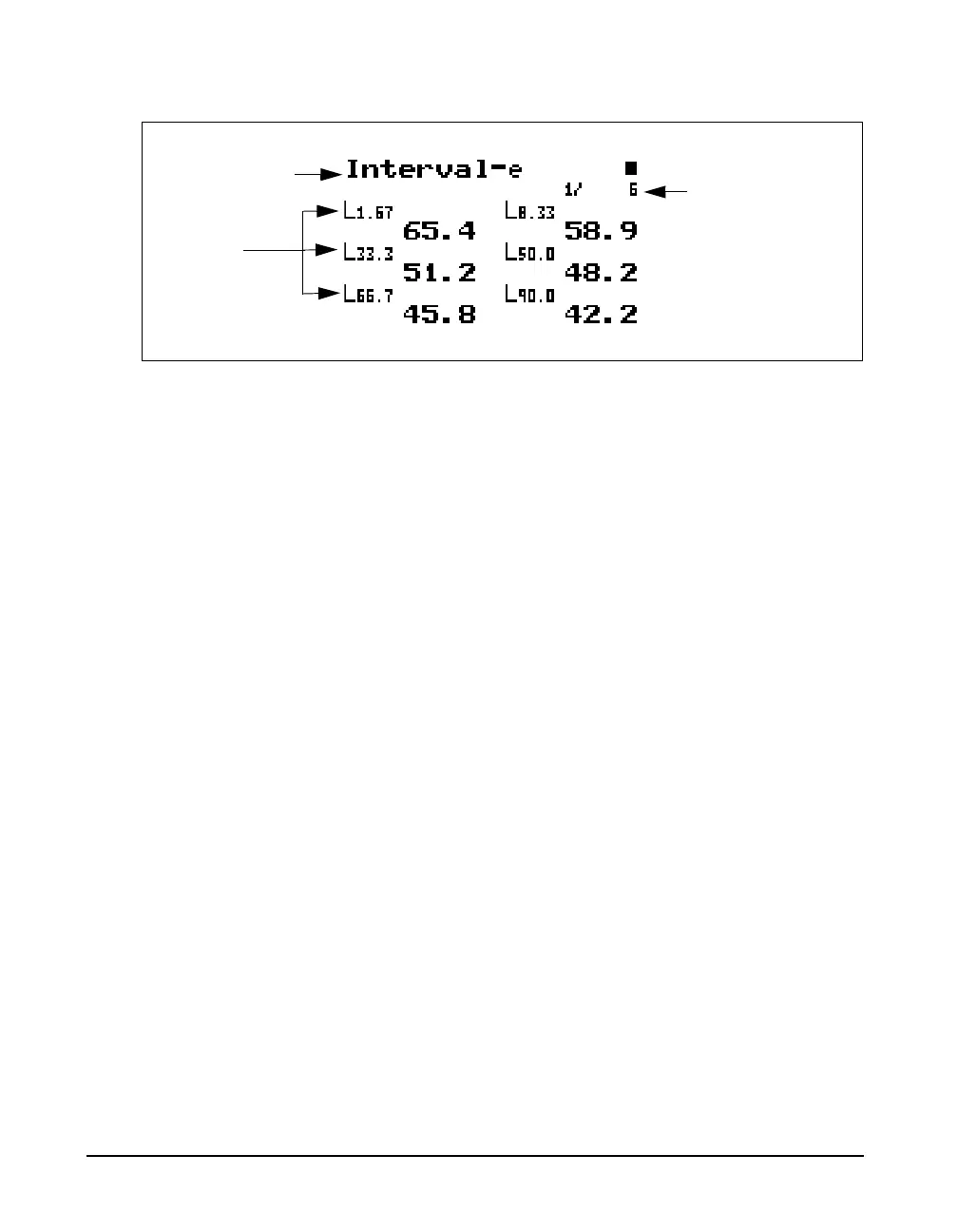

The following explains each of the display’s components:
Display label - This shows the current display (for example,
“Interval-e”).
Interval Number - The “Interval Number” display shows
each measurement interval in the order that it occurred. The
Interval Number indicates the order of the displayed interval
in relation to the other interval records.
Ln Centiles Readings - Shows the six Ln Centiles readings
for this interval.
Intervals-f Display The Interval-f display consists of seven major components:
• Display label
• Interval Number
• Interval Date/Time
• Average Windspeed
• Maximum Windspeed
• Direction of Maximum Windspeed
• Interval Duration
The Interval-f display is shown below (LOG instrument only)
Display label
Interval Number
Ln Centiles
Readings
