C-24 824 Reference Manual 9/29/09

Frequency Response

Random Incidence Microphone Correction

When random incidence correction is turned on in the 824, a

digital filter is added which gives the necessary correction to

provide random incidence response when measuring with a

free-field microphone.

NOTE: Tested with the preamplifier

and microphone attached directly to

the 824.

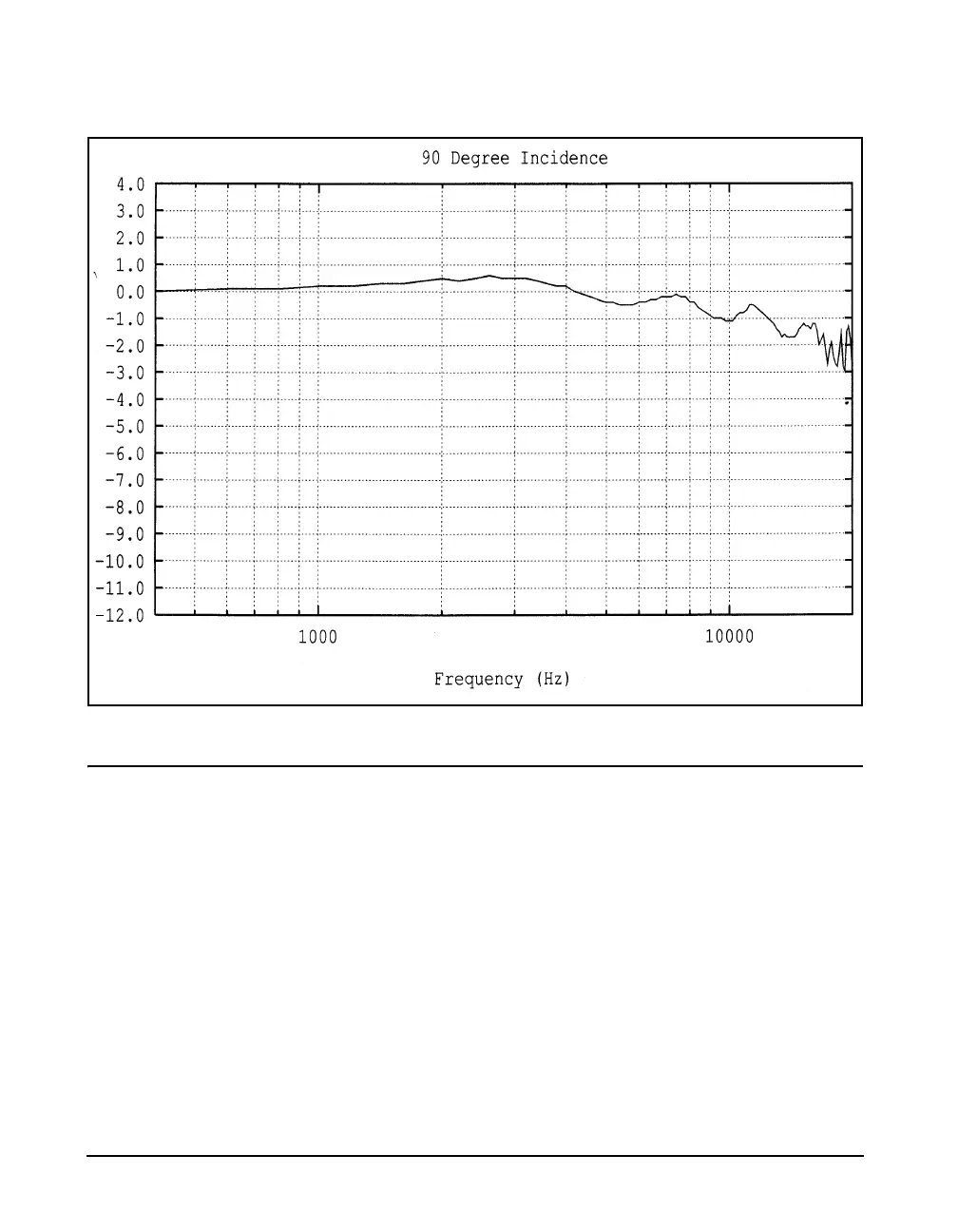

The graphs below show the response of the free-field

microphones before and after the random incidence

correction has been added.
