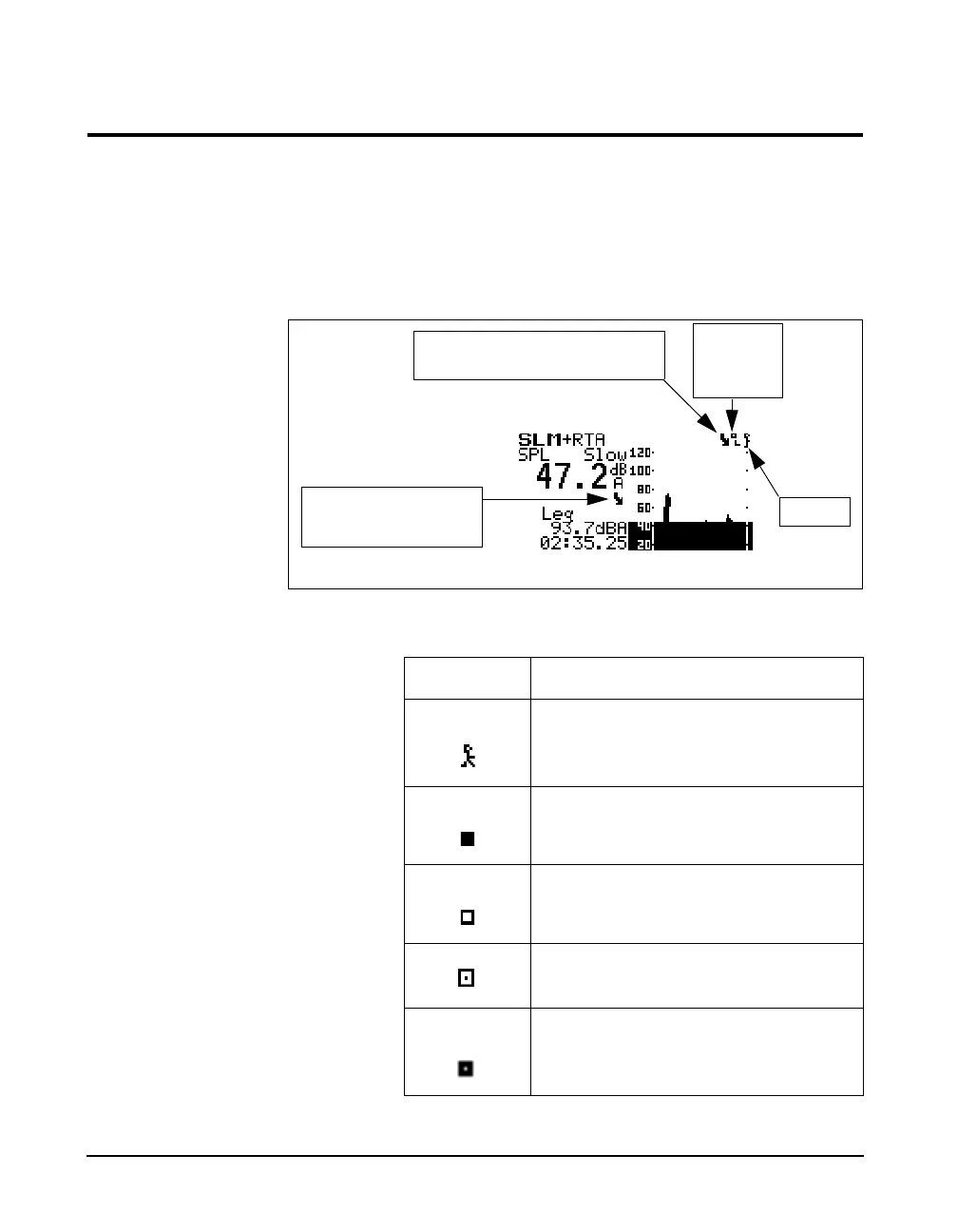

Status Icons and Indicators
When using the System 824 you will encounter a number of
different display views. Each display contains an instrument
status icon in the upper right hand corner of the display. This
icon changes according to the current state of the instrument.
The following table describes the icons that may appear
:
Icon Description
Animated Running Figure - The
instrument is running and acquiring
data.
Solid Box - The instrument is stopped,
data available.
Open Box - The instrument is stopped,
and reset.
Open Box with small solid box -
Viewing a recalled file.
Solid Box with open box in middle -
OverAll or Current data are available
but not both.
System under range/near noise
floor indicator
Latching
Overload
detector
Mode
Indicated weight under
range/near noise floor
indicator
