12-12 824 Reference Manual 9/29/09
Snapshot Check Menu

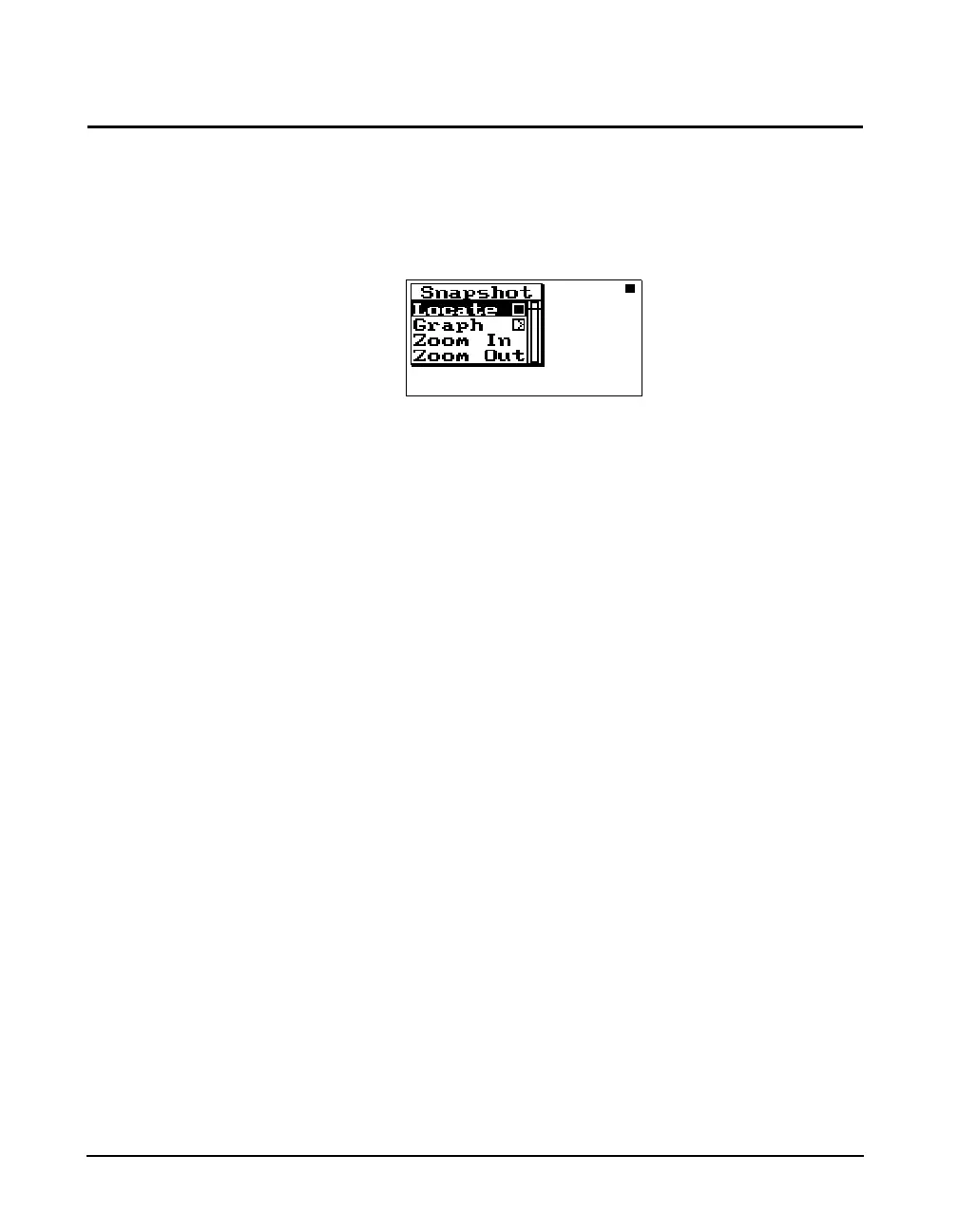

To access the snapshot check menu, press the Check c key
while viewing the snapshot data. The following menu
appears:
The check menu offers the following options:
• Locate - Locate Snapshot record
- First - The first Snapshot record
- Last - The last Snapshot record
- Find - Finds the specified Snapshot record
• Graph - Adjusts the graph scale and offset (See 824
Reference Manual)
- Graph Level - Allows numerical entry of graph
level in dB.
- Graph Scale - Allows numerical entry of graph
scale.
• Zoom in - Allows you to see FFT spectrum with more
detail. (See page 6 for more information)
• Zoom out - Allows you to see FFT spectrum with less
detail. (See page 6 for more information)
