5-54 824 Reference Manual 9/29/09
• Max Reading

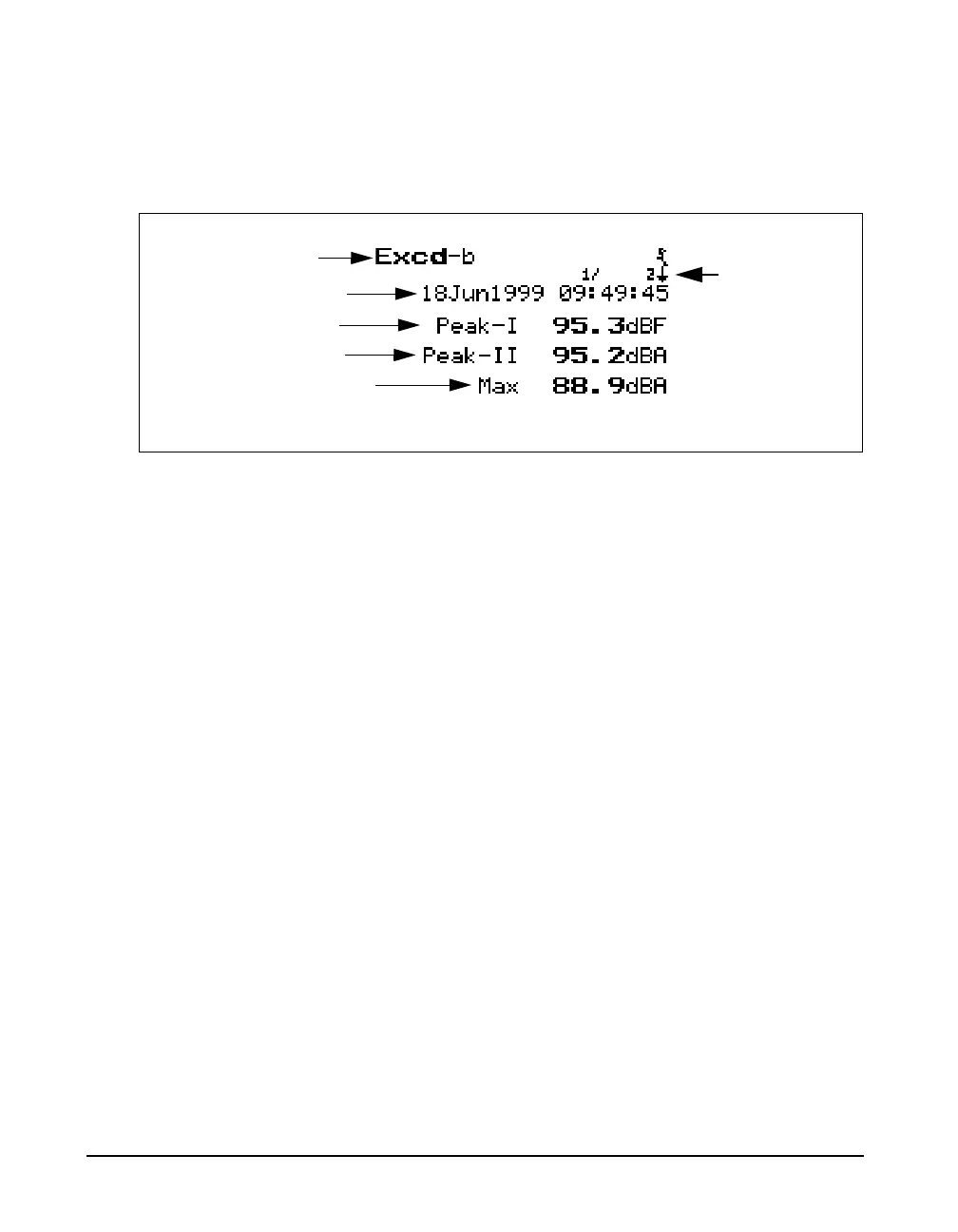

The Excd-b display is shown below:
The following explains each of the display’s components:
Display label - This shows the current display (for example,
“Excd-b”)
Exceedance Number - The “Exceedance” display shows
each exceedance record in the order that it occurred. The
exceedance number indicates the order of the displayed
exceedance in relation to the other exceedance records.
Exceedance Date/Time - The Event Date/Time shows the
time and date that this exceedance occurred.
Peak-I Reading - The Peak-I Reading shows the Peak-I
level recorded during this exceedance.
Peak-II Reading - The Peak-II Reading shows the Peak-II
level recorded during this exceedance.
Maximum Reading - The Max Reading shows the
maximum level recorded during this exceedance.
Excd-c Display The Excd-c display consists of six major components:
• Display label
• Exceedance Number
• Exceedance Date / Time
Display label
Excd Number
Exceedance Date/Time
Peak-I Reading
Peak-II Reading
Maximum level during excd
