Larson Davis 824 - Current;Overall SLM Display-B (Times)

5-28 824 Reference Manual 9/29/09
Current/Overall SLM Display-b
(Times)
The Current / Overall-b SLM or Times display consists of
four major components:
• Display label
• Start date / time
• Elapsed time
• End date / time

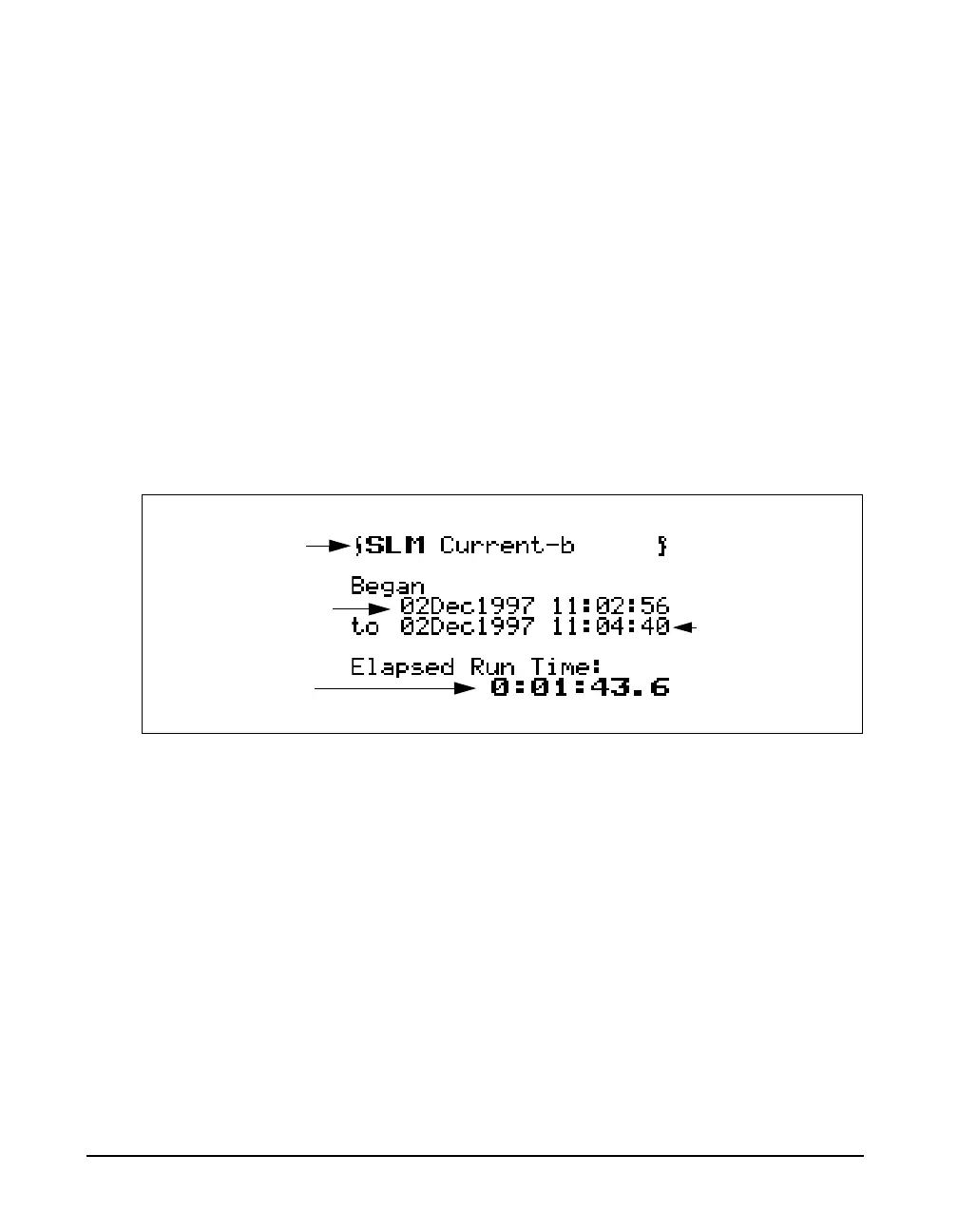

The SLM Current-b or Times display is shown below:
The following explains each of the display’s components:
Display label - This shows the current display (for example,
“SLM Current-b”). The display represents both Current-b
and Overall-b display.
Start date/time - Date and time the current/overall
measurement began.
Elapsed time - The Elapsed Time displays the length of
time the current or overall measurements have been running.
It will restart at zero when the
R Reset key is pressed
(Current SLM only). It will also pause when the
p Pause
key is pressed and then continue when it is pressed again.
The timer is displayed as hhhhh:mm:ss.s
Display label
Start date/time
End date / time
Elapsed time
