Connecting the Test System

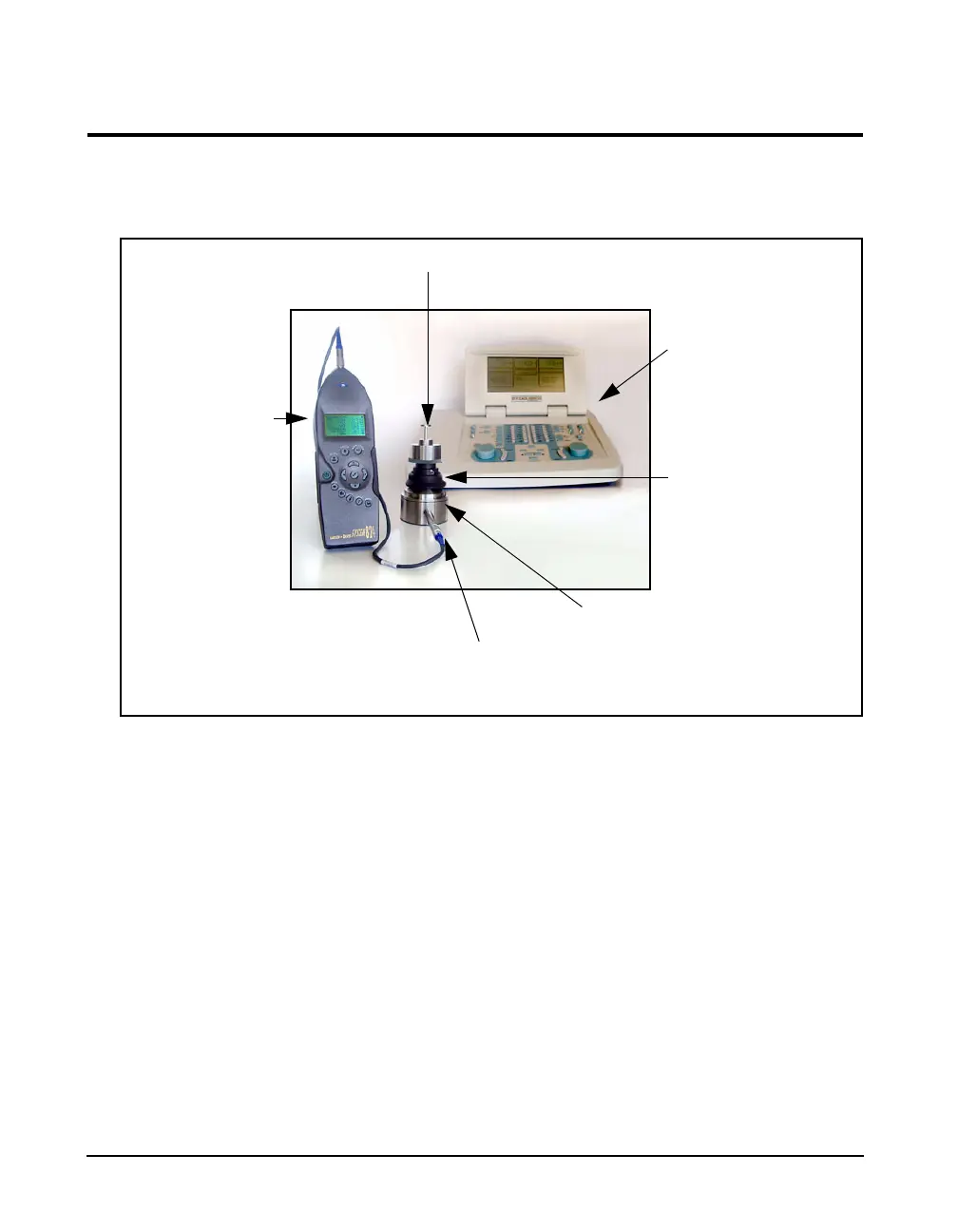

For performing audiometric calibration measurements,
connect the components as shown below.
The microphone is threaded into a connection inside the
artificial ear and the microphone preamplifier is inserted into
the opening on the side of the artificial ear base and threaded
into place. A microphone extension cable connects the
microphone preamplifier to the input of the System 824.
One of the audiometer earphones, connected to the
audiometer via a cable (not visible here), is placed on top of
the artificial ear and then the weight is placed on top to hold
it firmly in place.
Audiometer
Artificial Ear
Microphone Preamplifier
System 824
Weight
Audiometer
Earphone
