9/29/09 System 824 Virtual Instruments 6-3
Selecting an Instrument ID
To select one of the System 824 instrument setups or IDs, do
the following:
There will be a ‘>’ to the left of the
currently enabled instrument ID. The
current ID will generally also
remain at the top of the list. If the
user changes the ID that is in use,
the current ID will then have an
asterisk to the left of the title.

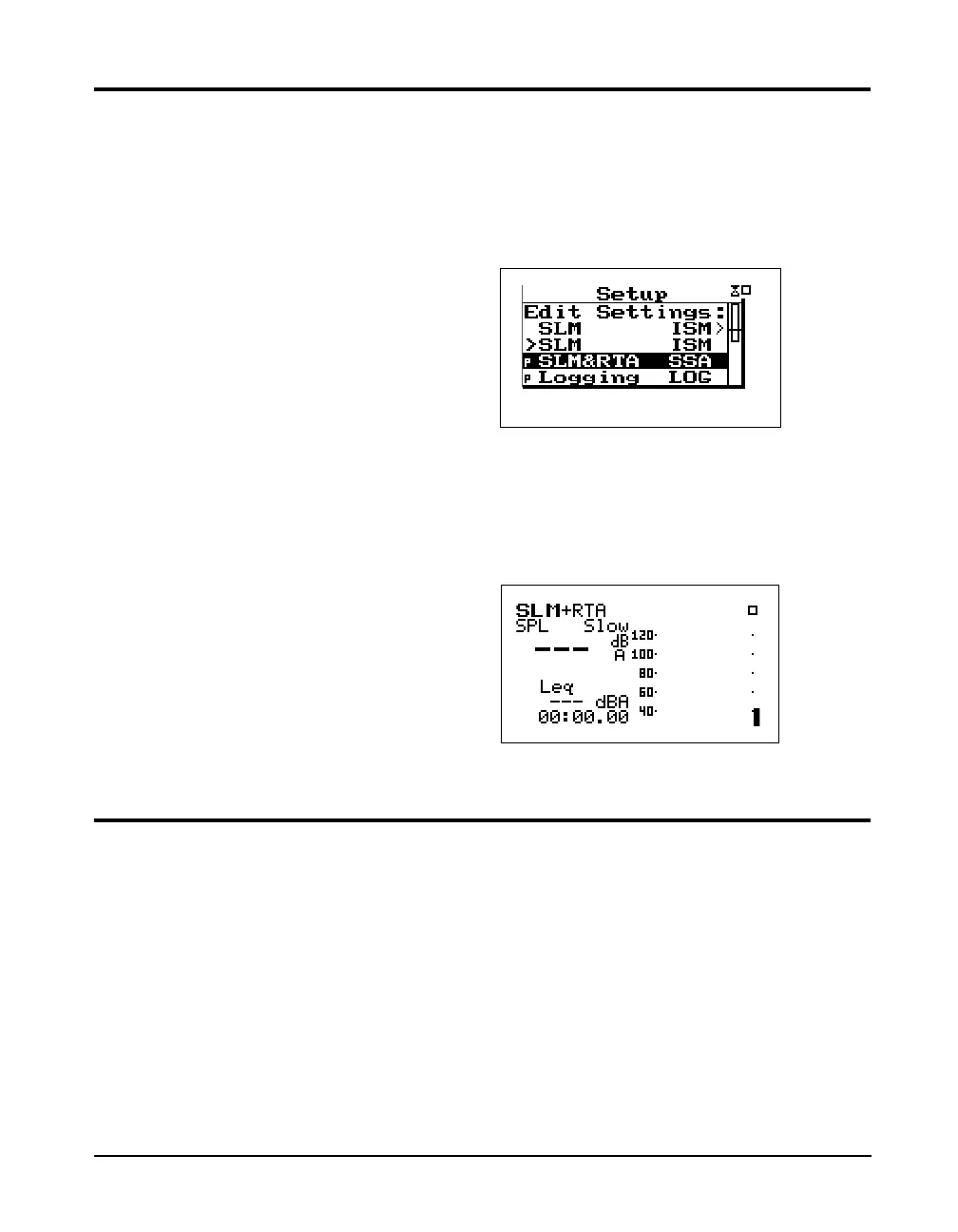

Step 1 Press the
S SETUP key. A menu similar to the
following appears:
Step 2 Select the desired ID from the menu by using the
uordkeys to highlight it, then press the c
key to select it. That instrument’s main display
will appear:
Sound Spectrum Analyzer (SSA)
There are applications which call for the simultaneous
measurement of both the sound pressure level and the real-
time frequency spectrum. Very often you will wish to
measure the weighted (A, C or Flat) sound pressure level
while simultaneously measuring the unweighted frequency
spectrum.
For these applications, the System 824 provides the SSA
instrument.
