Larson Davis 824 User Manual

5-64 824 Reference Manual 9/29/09
• Display label
•Date
• Record Number
• Hourly Leq reading
• Exceedance Leq
• Background Leq
• Partial hour indicator
• Hourly Leq graph

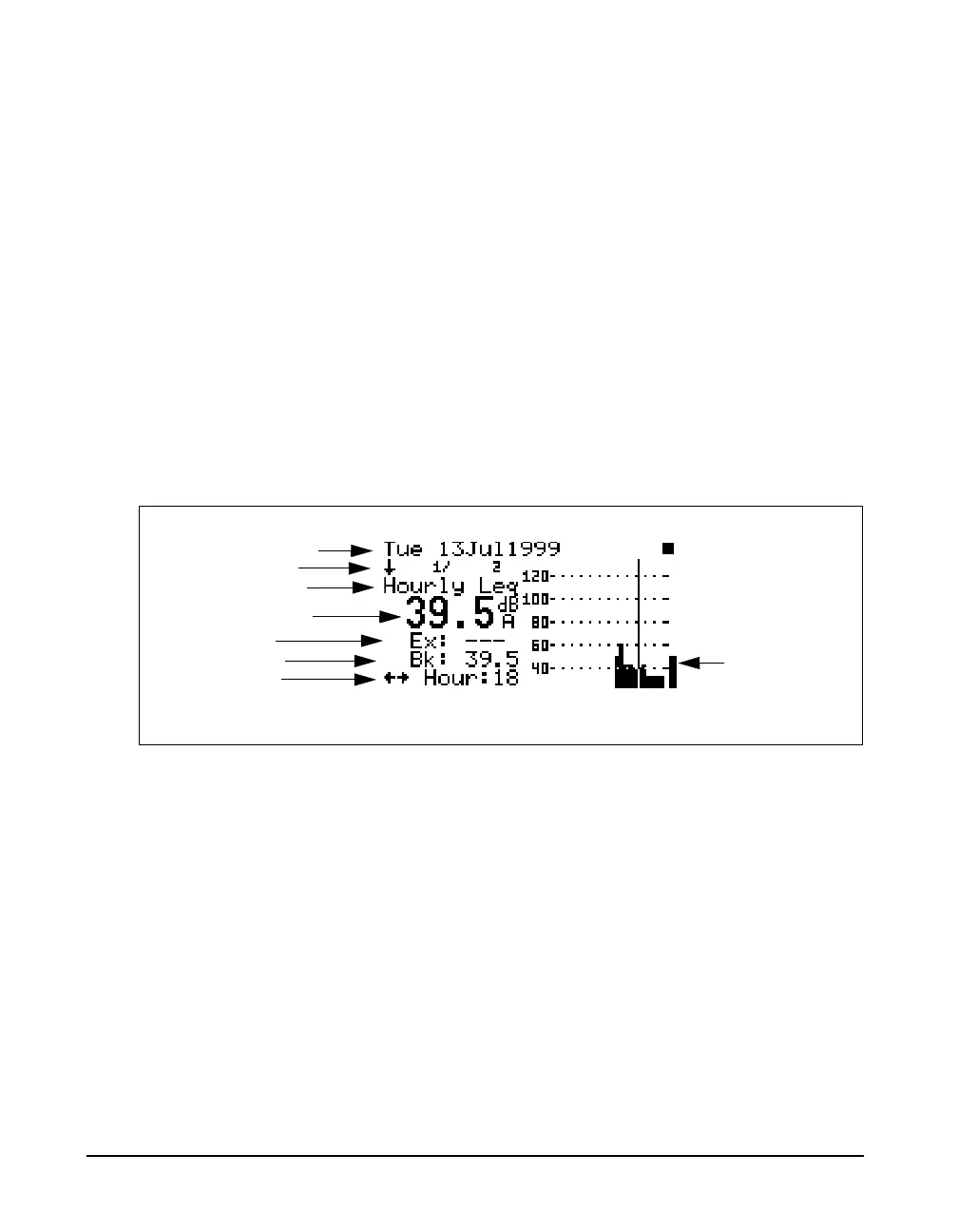

The Hourly Leq display is shown below:
The following explains each of the display’s components:
Display label - This shows the current display (for example,
“Hourly Leq”).
Date - Date of the record
Record Number - The record number indicates the order of
the displayed Daily record in relation to the other records.
Hourly Leq Reading - This is the hourly Leq as shown by
the cursor.
Exceedance Leq - This shows the average level of all of the
exceedance events.
Date
Display label
Hourly Leq Reading
Exceedance Leq
Background Leq
Hour indicator
Record Number
Hourly Leq
graph
