12-16 824 Reference Manual 9/29/09
Linear Units
Linear Units is simply 4 alphanumeric characters defining
the units name as it will appear on the screen.
Linear Scale
Linear Scale is the value of Linear Scale calculated as shown
in the preceding sections.
Input the desired values for both Linear Units and Linear
Scale by highlighting the item, pressing the Check
c key,
entering the values and pressing the Check
c key again to
close the menu.

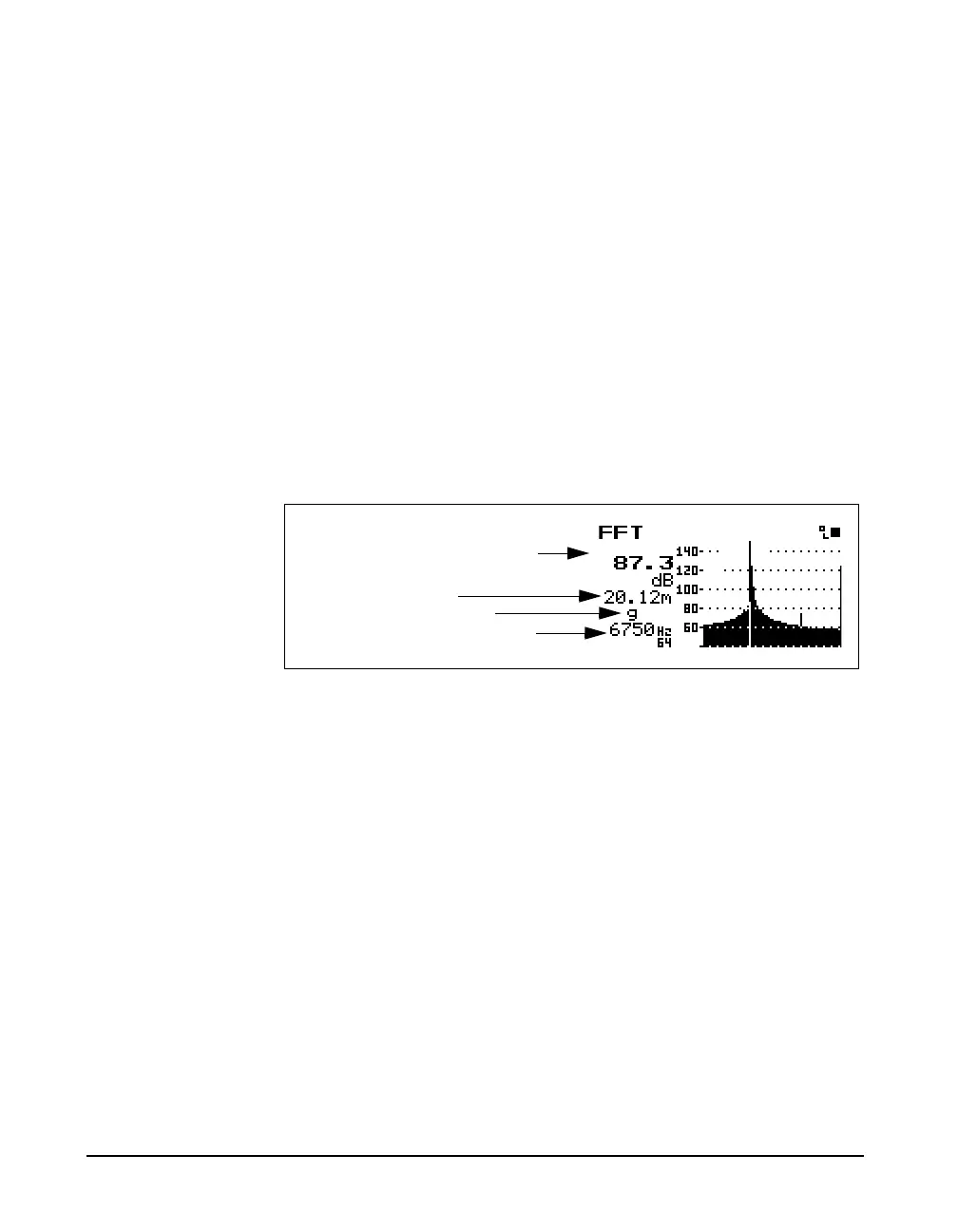

Below is an example of the FFT live display with linear
units:
The following explains each of the display’s components:
In this case it shows 20.12 milli-g
acceleration.
Standard dB level at cursor - This is the dB display which
appears whether or not the linear amplitude is displayed.
Read out at cursor - This is the linear units level at the
cursor.
NOTE: The units level is displayed in engineering
exponential notation.
Linear Units - This is the unit entered by the user in the
menu for “Linear Units”. In this particular case we have
entered “g” for acceleration.
Frequency shown by cursor - This is the frequency as
shown by the cursor.
Linear Units
Frequency shown by cursor
Linear amplitude
Standard dB level at cursor
