3-2 Service Manual
5061

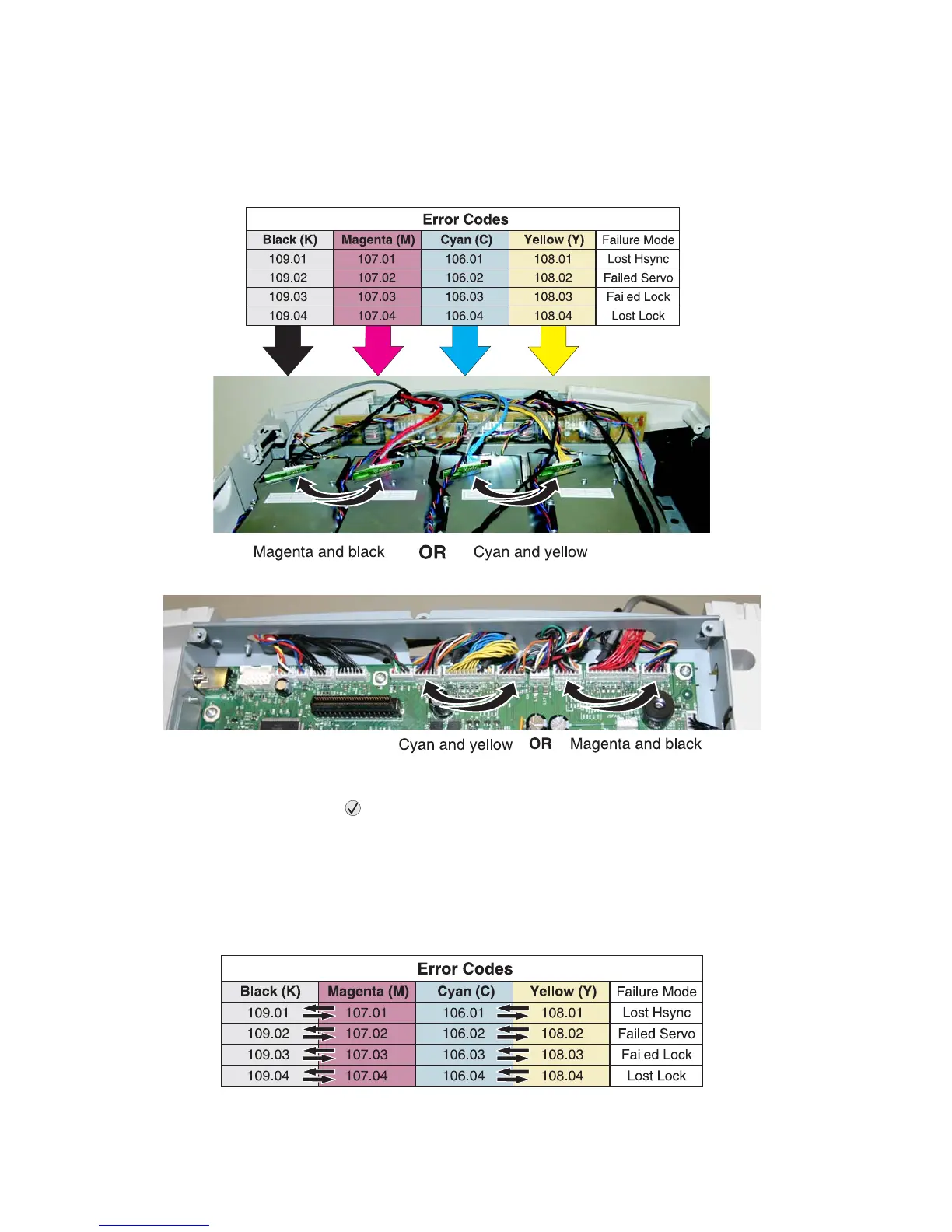

4. Select which pair of printheads to switch based on the error code.
• If the printer displays one of the codes that indicate yellow or cyan, switch the yellow with the cyan
printhead cable and the yellow with the cyan mirror motor cable.
• If the error code indicates a magenta or a black error, switch the magenta with the black printhead
cable and the magenta with the black mirror motor cable.
5. Turn on the printer and compare the new error codes with the original error code you recorded.
Note: If an automatic calibration begins, 36 Printer Service Required may appear. Check the printhead
cable connections. Press to clear the error.
• If the error code remains the same, replace the system board. See “System board removal” on
page 4-90. If that solves the problem, you are finished. Make sure you return all the cables to the
original positions.
• If the printer displays a different printhead error code, which indicates the code for the other color of
the pair you switched, the printhead or the printhead cables are defective. Return all the cables to the
original positions. Replace the printhead cables. If the problem remains, replace the printhead. See
“Printhead removal and adjustments” on page 4-73.
