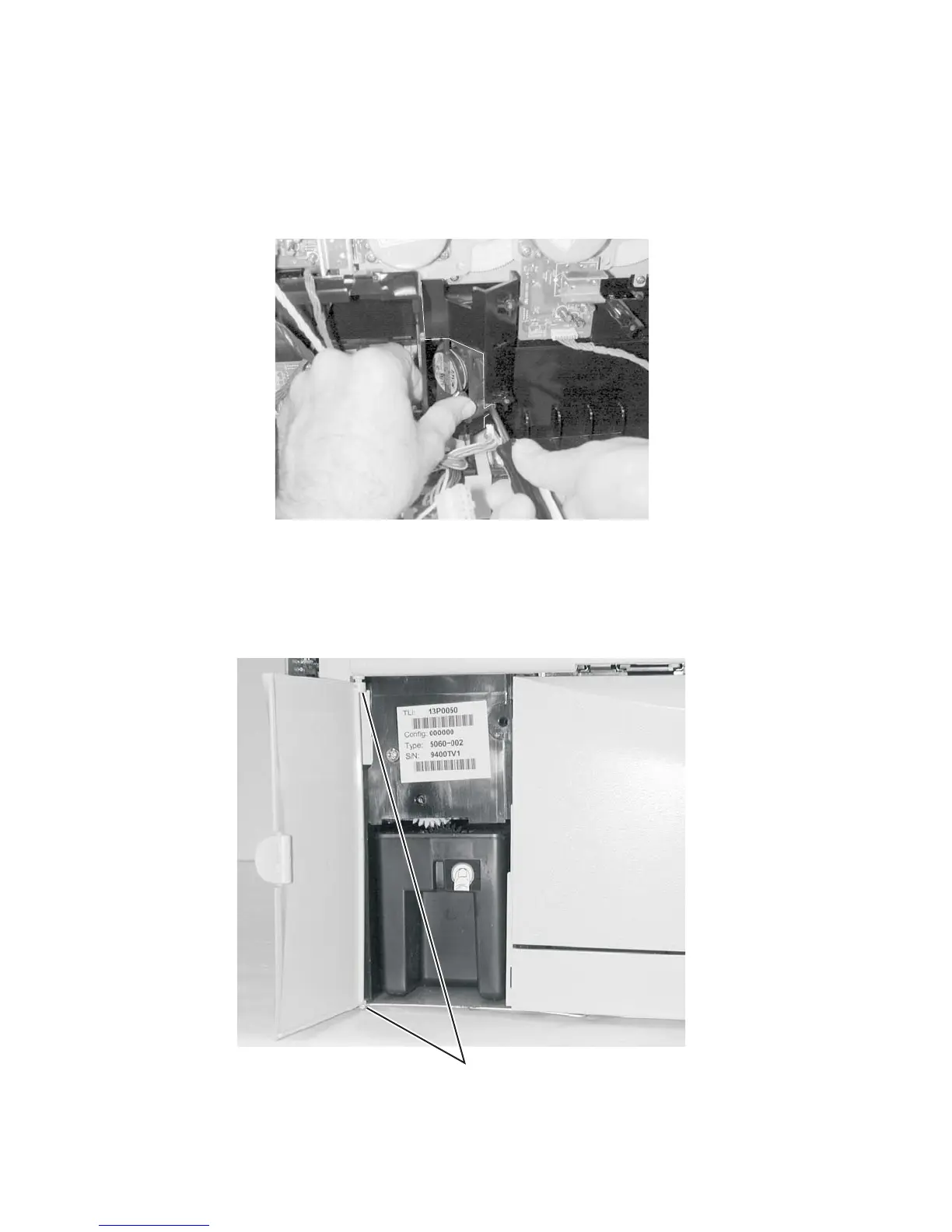

Vacuum transport belt (VTB) fan removal
See “VTB fan, 60 mm” on page 7-35 for the part number.
1. Remove the rear cover. See “Rear cover removal” on page 4-22.
2. Disconnect VTB fan from the system board.
3. Remove VTB fan with a flatblade screwdriver.
Waste container door removal
See “Waste container door” on page 7-5 for the part number.
1. Open the waste container door.
2. Flex the door, and remove it from the hinges (A).
