Repair information 4-11
5061
Front cover or front cover backplate assembly removal
The front cover does not include the front cover backplate assembly and operator panel. To remove the front
cover, remove the front cover backplate and operator panel and reinstall on the new front cover.
See “Front cover” or “Front cover backplate assembly” on page 7-3 for the part numbers.

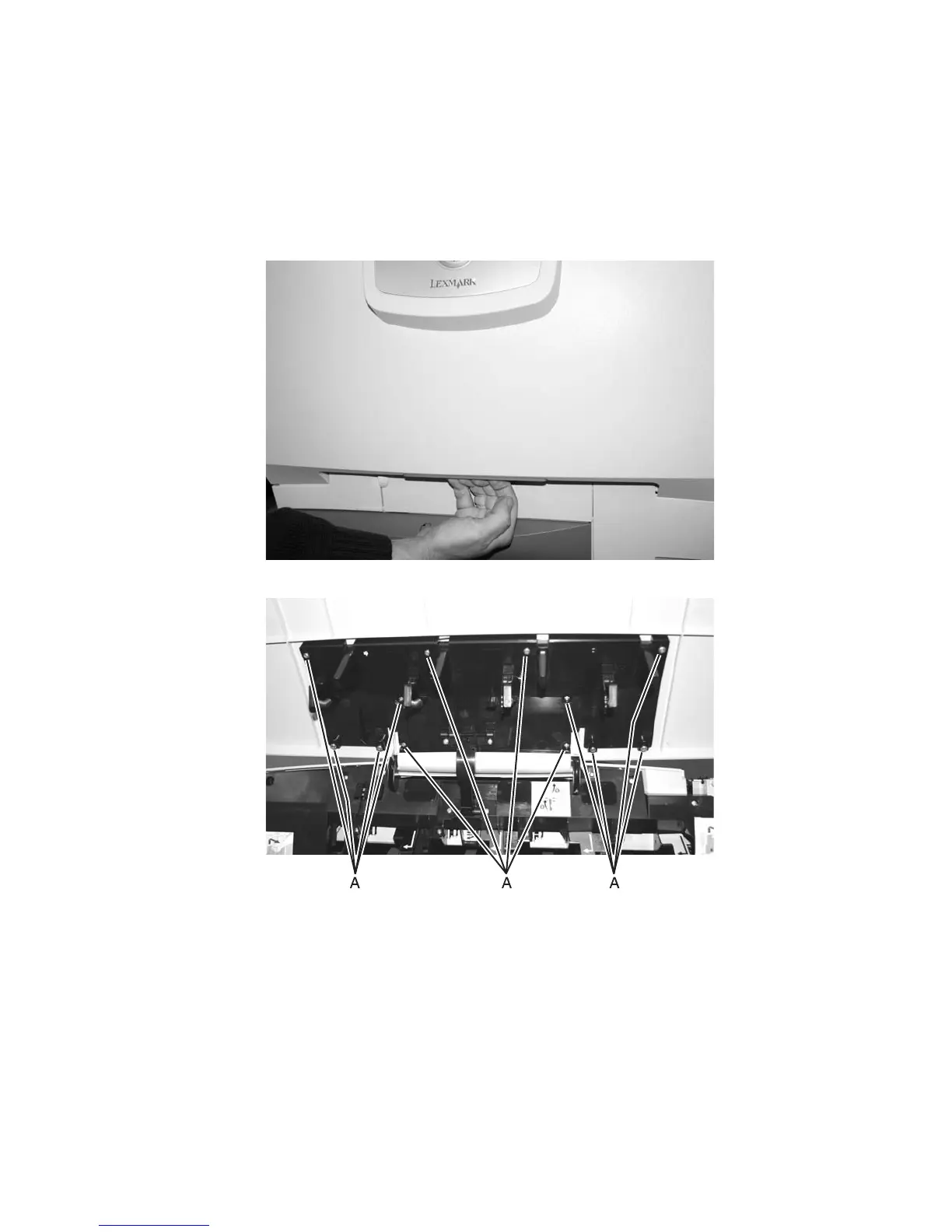

1. Remove the front cover rear pivot cover. See “Front cover rear pivot cover removal” on page 4-10.
2. Open the front cover assembly.
3. Remove the 12 screws (A).
4. Remove the front cover backplate assembly.
