High-capacity input tray (HCIT)

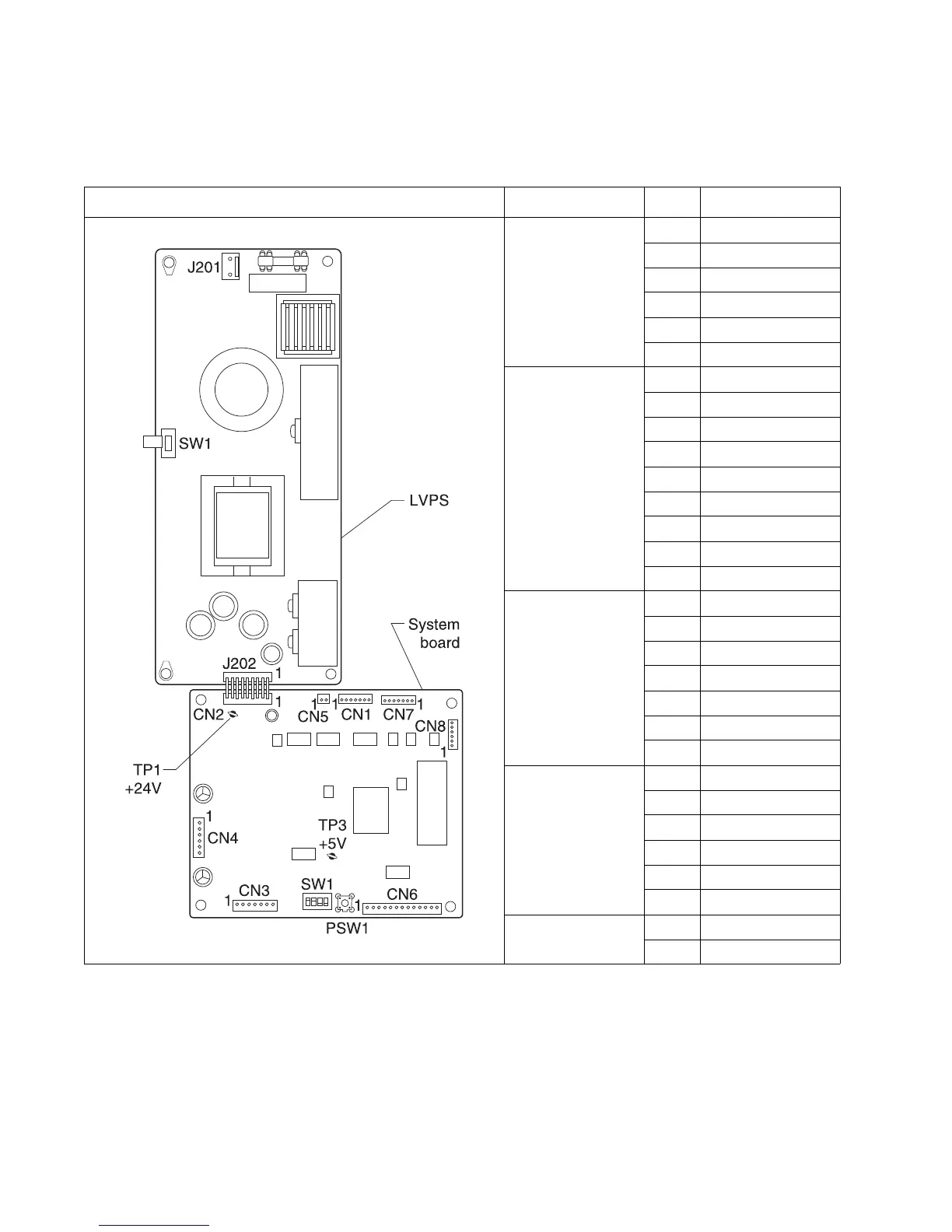

HCIT 2000-sheet board
Connector Pin Signal
CN1 I/F 1 Send
2 PRI RXD
3PGND
4 PERON
5SGND
6PRI TXD
CN2 LVPS 1 Poweron
2+5 V dc
3SGND
4PGND
5PGND
6PGND
7 +24 V dc
8 +24 V dc
9 +24 V dc
CN3 REG Motor 1 +24 V dc
2 +24 V dc
3REG A
4REG A
5REG B
6REG B
7 No Connection
CN4 PICK Motor 1 +24 V dc
2 +24 V dc
3PICK A
4*PICK A
5PICK B
6*PICK B
CN5 LIFT Motor 1 +24 V dc
2LHOT
