Paper jams
Identifying jams
If the printer jams, the appropriate jam message will be displayed on the printer operator panel. If you select
Show areas on the operator panel, you can view one or more images to help you clear the jam.
See the diagram “Access doors and trays” on page 3-36 for an overview of the paper path and areas where
jams may occur. The path varies depending on the paper source and output bins.

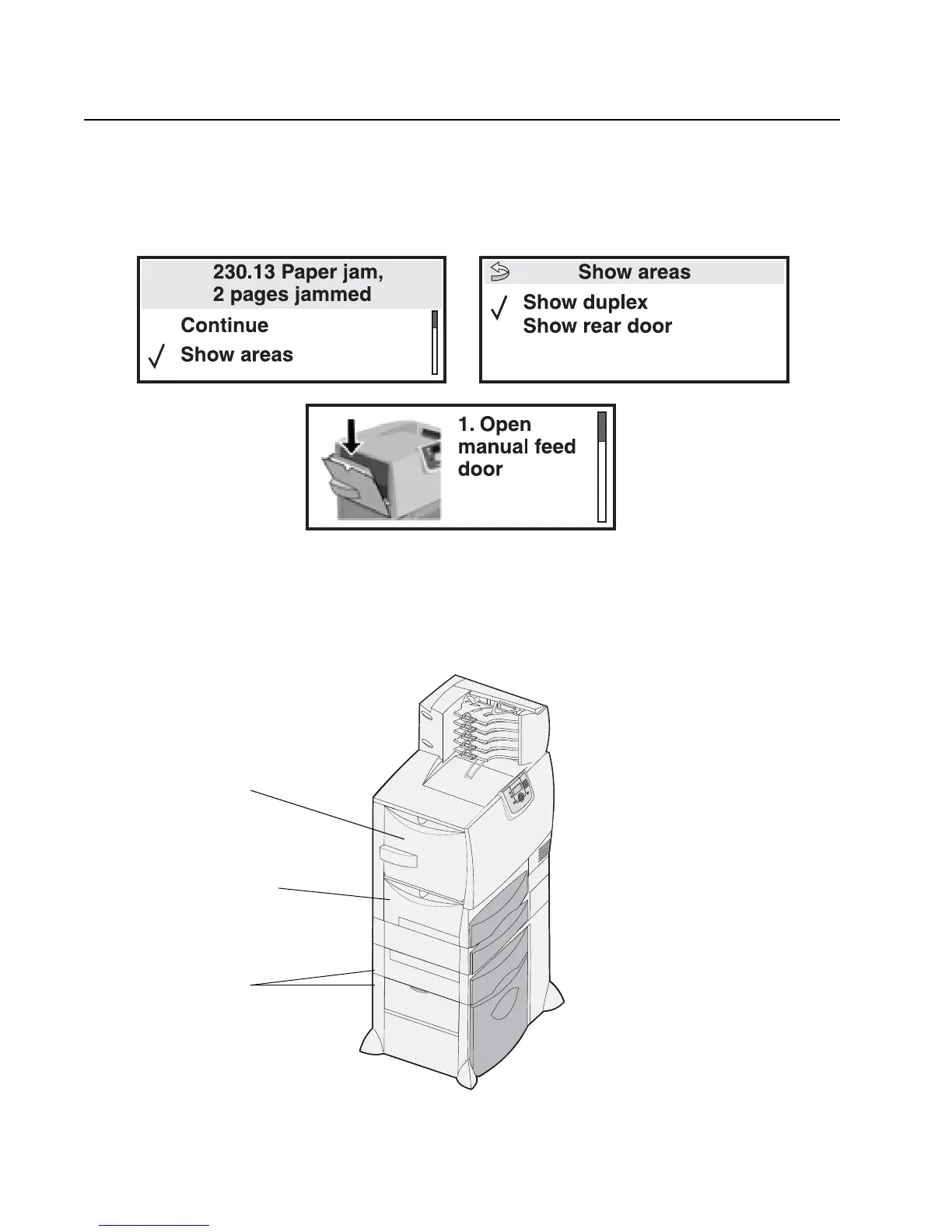

Access doors and trays
The following illustrations show areas where jams can occur.
Area A
Multipurpose feeder
250.xx Paper Jam
Area B
Left access door (beside
tray 1)
200.xx Paper Jam
24<x>.xx Paper Jam
Area C
Paper input options:
500-sheet drawer or
2000-sheet drawer
24<x>.xx Paper Jam
To Next Page
