4-70 Service Manual
5061
Pick rolls removal
See “Pick roll tires (2 per pack)” on page 7-53 for the part number.
Note: Replace both rolls at the same time.
Front roll
1.
Remove the paper tray.
2. Wipe any toner or debris from the bottom pan to avoid contaminating the pick rolls.

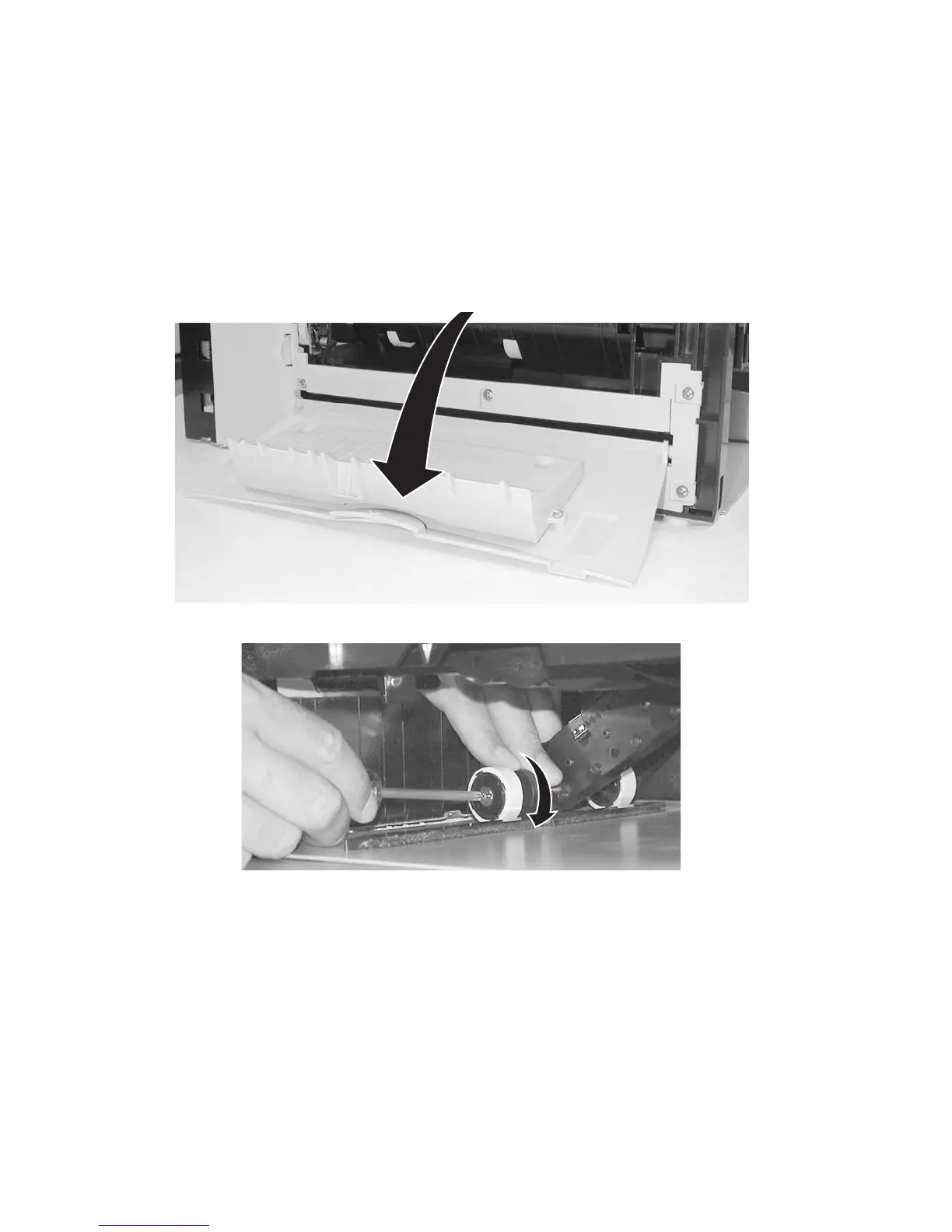

3. Open the lower jam access door assembly for access.
4. Pull the pick assembly down into the bottom pan, and remove the screw.
Note: Do not attempt to remove either the shaft or the clutch races.
Installation notes for the front roll:
• When you replace the front roll, make sure the roll is pressed against the shaft and the screw is fastened
all the way down.
• When replacing both the front and back rolls, note the directional markings on the roll and make sure the
rolls turn clockwise when viewed from the front. Check out the directional arrows in the pictures. Verify the
rolls turn freely.
