4-22 Service Manual
5061
Rear cover removal
See “Rear cover” on page 7-5 for the part number.
1. Remove the outer system board shield. See “Outer system board shield removal” on page 4-69.

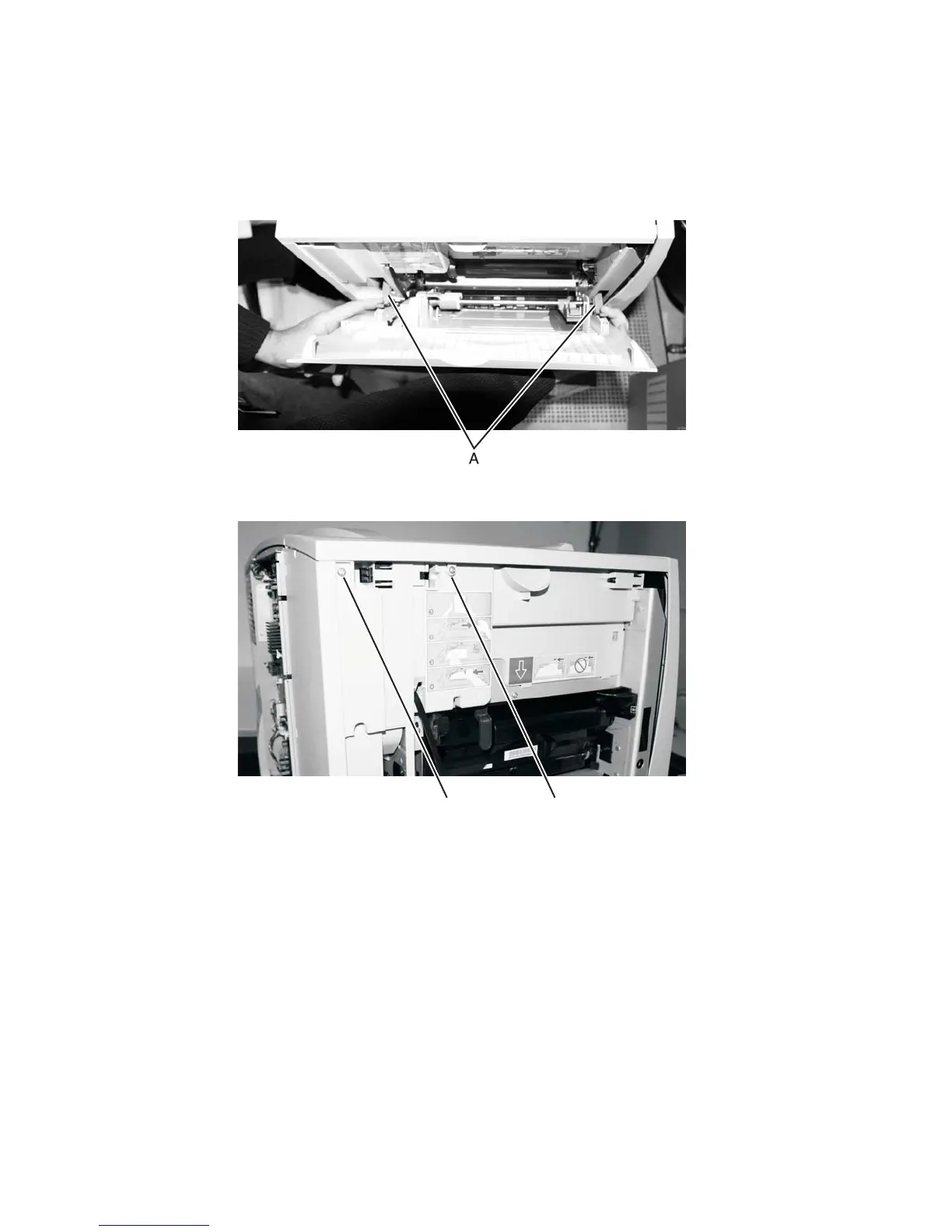

2. Press the releases (A) to open the MPF all the way.
3. Loosen the screw (B).
4. Remove the screw (C).
C B
