Lexmark C78x User Manual

5-24 Service Manual
5061

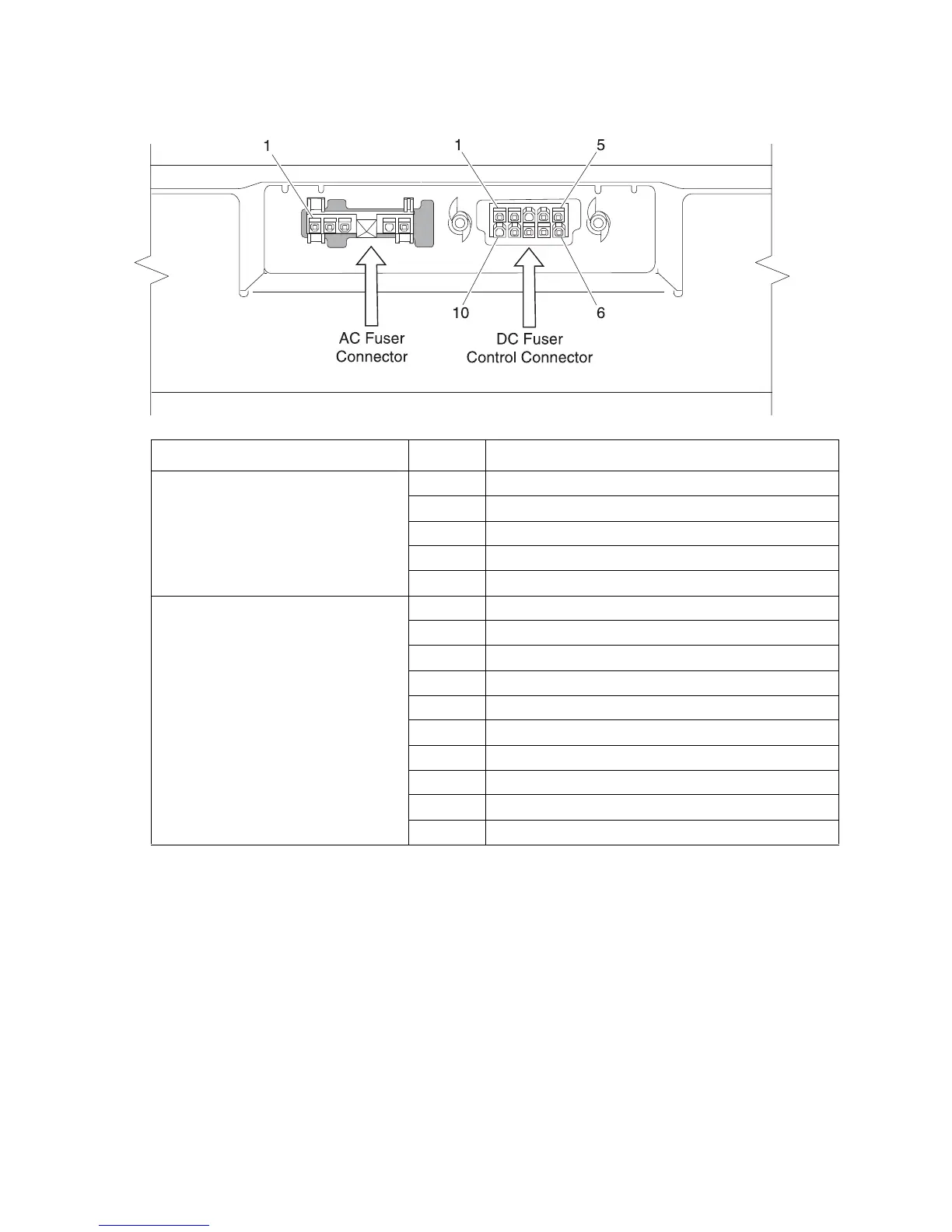

LVPS fuser connectors
Connector Pin no. Signal
LVPS AC Fuser Connector 1 AC Load #1
2 AC Common
3 Ground
4N/C
5 AC Load #2x
LVPS DC Fuser Control Connector 1 FusExitSen
2 BURCam1
3N/C
4 WebEncoderA
5 WebEncoderB
6 HRThermistor
7 BURThermistor
8 Return—Analog Ground
9 +5 V dc switched
10 N/C
