Repair information 4-21
5061
Front right handle cover assembly removal
Se “Front right handle cover assembly” on page 7-3 for the part number.

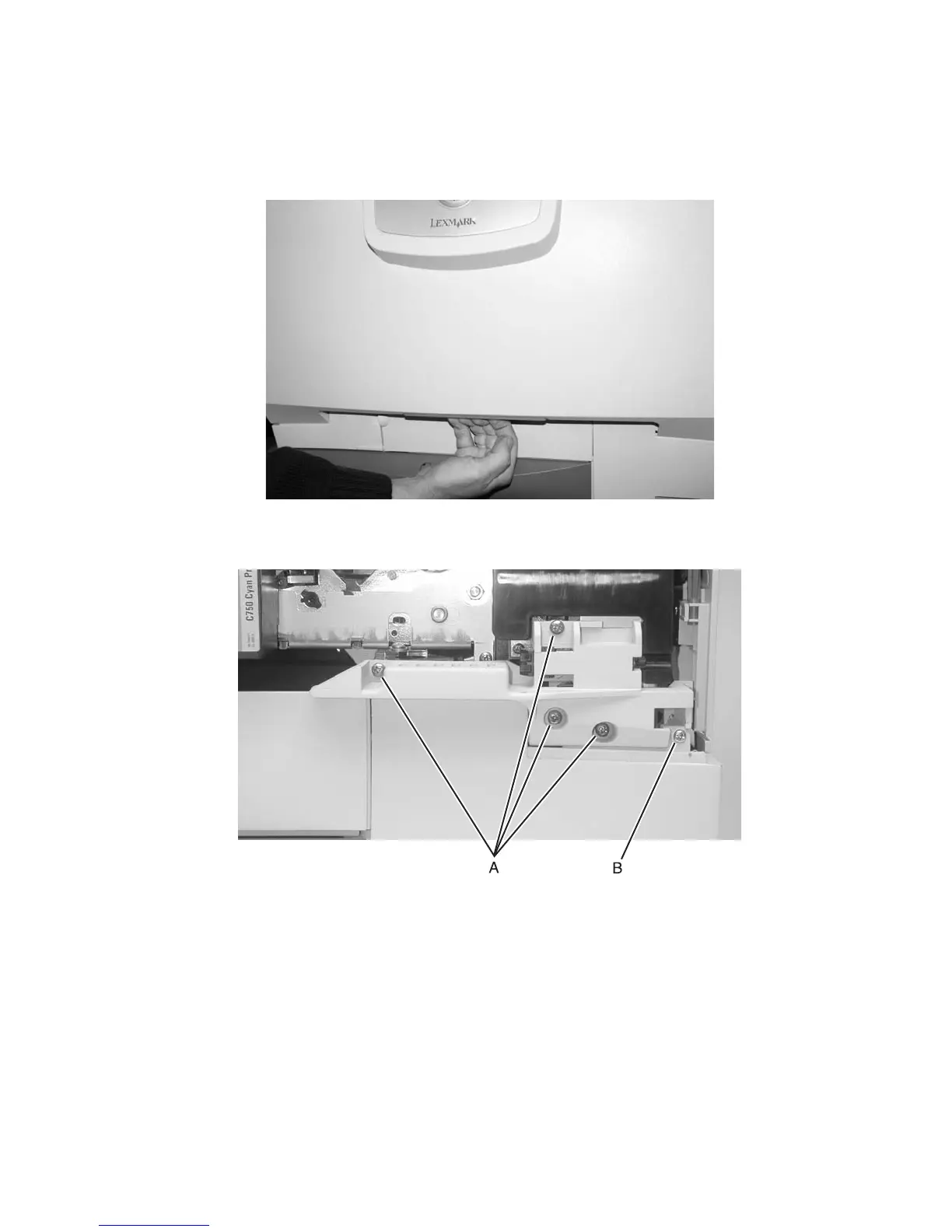

1. Open the front cover assembly.
2. Remove the toner cartridges.
3. Remove the four front right handle cover assembly screws (A) type “323” on page 4-3 and the screw (B)
from the front lower right cover.
4. Remove the assembly.
