Repair information 4-89
5061
S2/narrow media/transparency/multipurpose feeder sensors removal
The individual sensors are not available separately from the cable. If you need to replace a single sensor, remove
it from the S2/narrow media/transparency/multipurpose feeder cable and replace that one. See
“S2/XPAR/NMS/MPF cable assembly (with sensors)” on page 7-37 for the part number.
1. Remove the rear cover. See “Rear cover removal” on page 4-22.

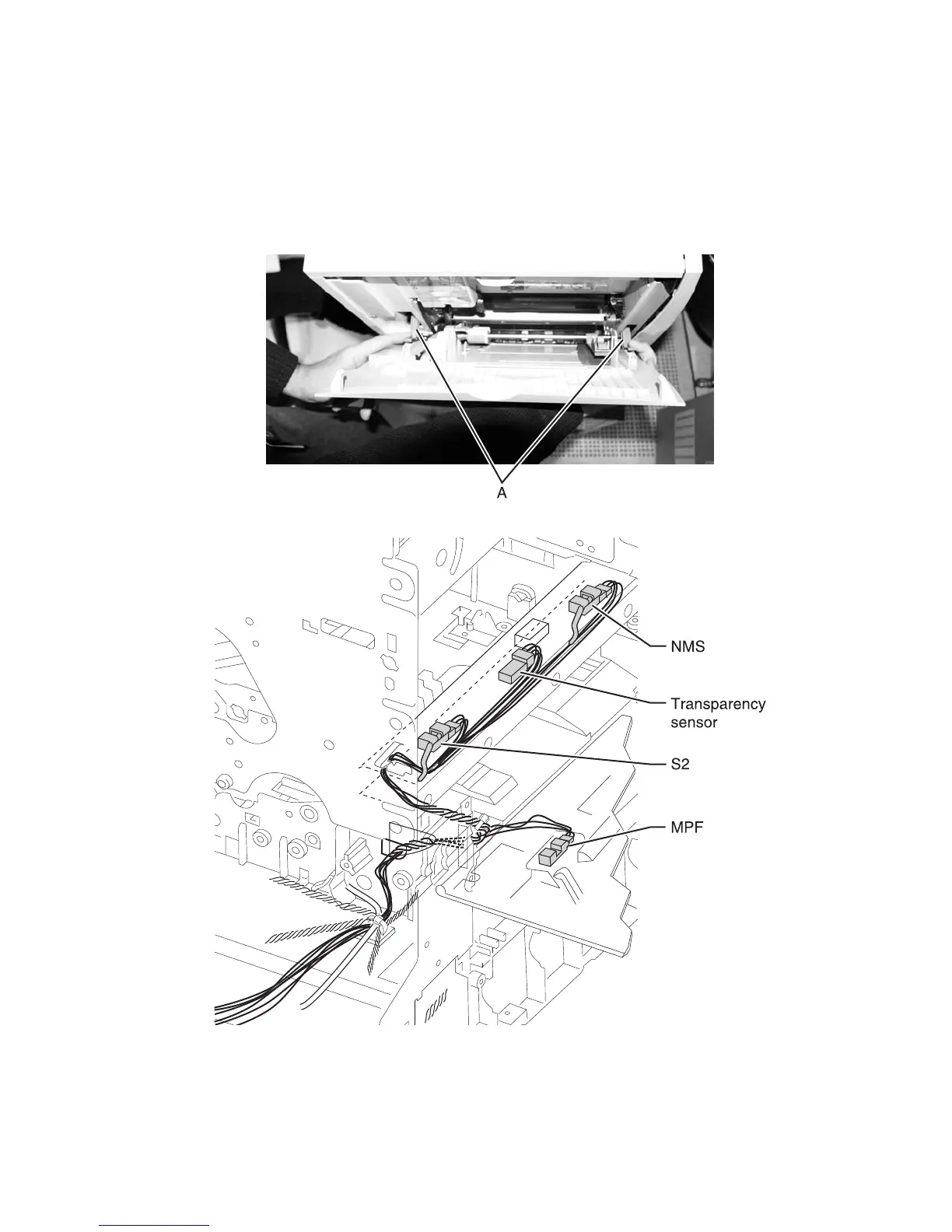

2. Open the MPF and press the releases (A) to open the MPF to the lowest position.
3. Remove the sensor you sensor you need from the new cable FRU and replace it in the installed cable.
Second transfer roll removal
See “Second transfer roll” on page 7-12 for the part number.
See “ITU assembly removal” on page 4-49 for removal of the ITU and the second transfer roll.
