Repair information 4-25
5061
Lower jam access door assembly removal
See “Lower jam access door assembly” on page 7-5 for the part number.
1. Remove the paper path access door cover. See “Paper path access door removal” on page 4-18.
2. Remove the front left handle cover assembly. See “Front left handle cover assembly removal” on
page 4-19.

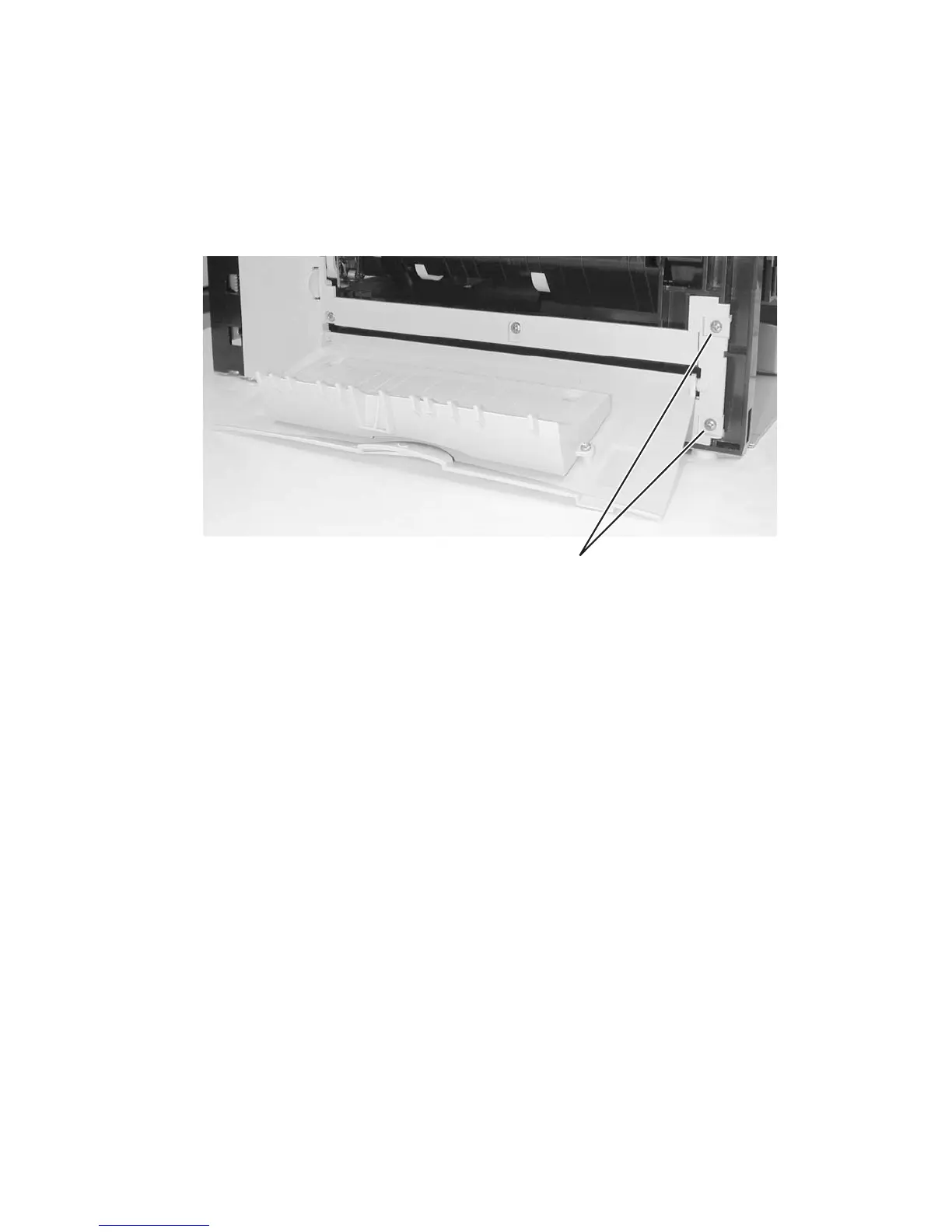

3. Remove the lower jam access door assembly screws (A) type “323” on page 4-3, and remove the door.
A(323)
