4-48 Service Manual
5061
Inner system board shield removal
See “System board inner shield assembly” on page 7-33 for part number.
1. Remove the top cover assembly. See “Top cover assembly removal” on page 4-13.
2. Remove the rear cover. See “Rear cover removal” on page 4-22.
3. Remove the transfer HVPS board. See “Transfer HVPS board removal” on page 4-92.
4. Remove the system board. See “System board removal” on page 4-90.

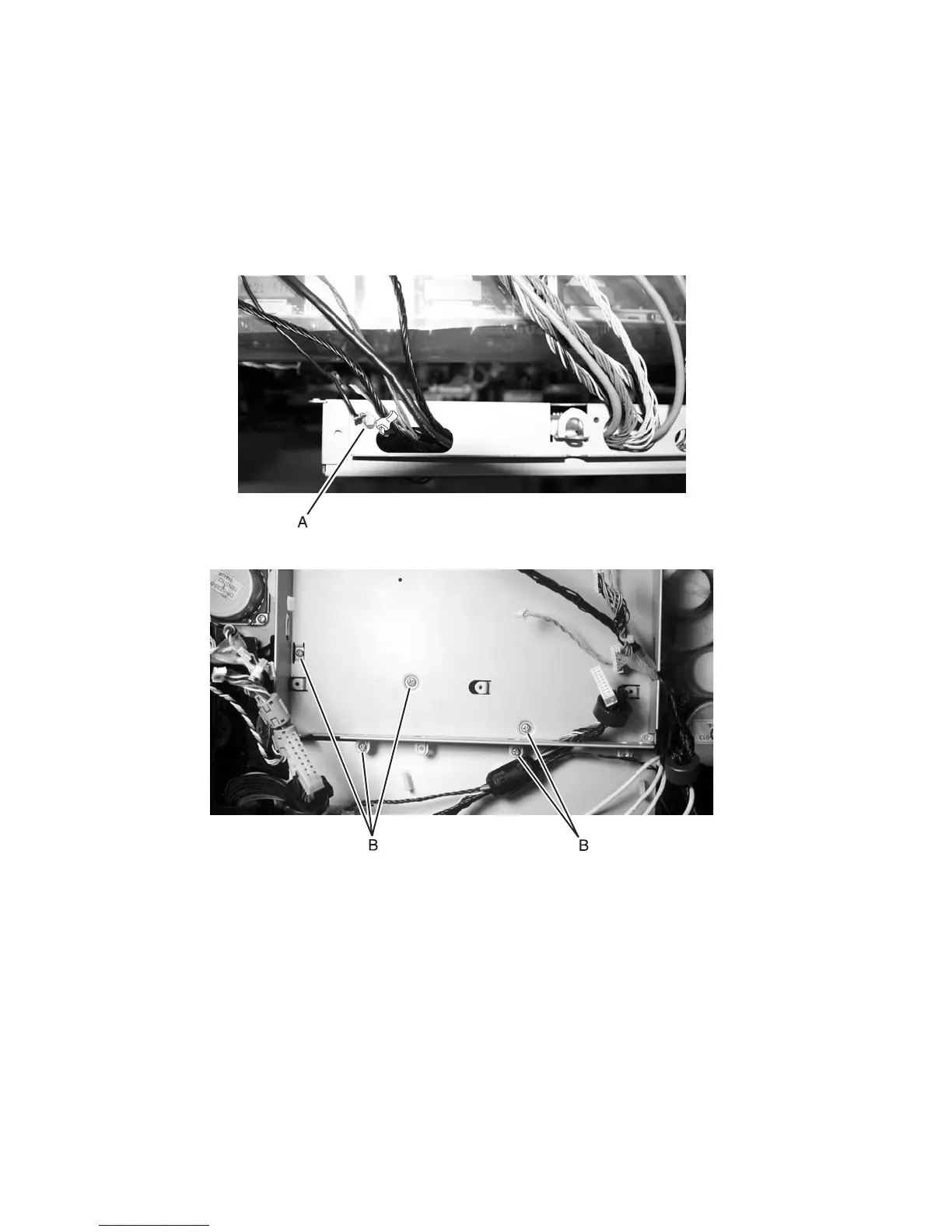

5. Remove the ground wire screw (A). (Shown from above the inner system board shield.)
6. Remove the five screws (B).
7. Lay the inner system board shield out of the way.
Installation note: Be sure to replace all the cable ties.
