4-42 Service Manual
5061

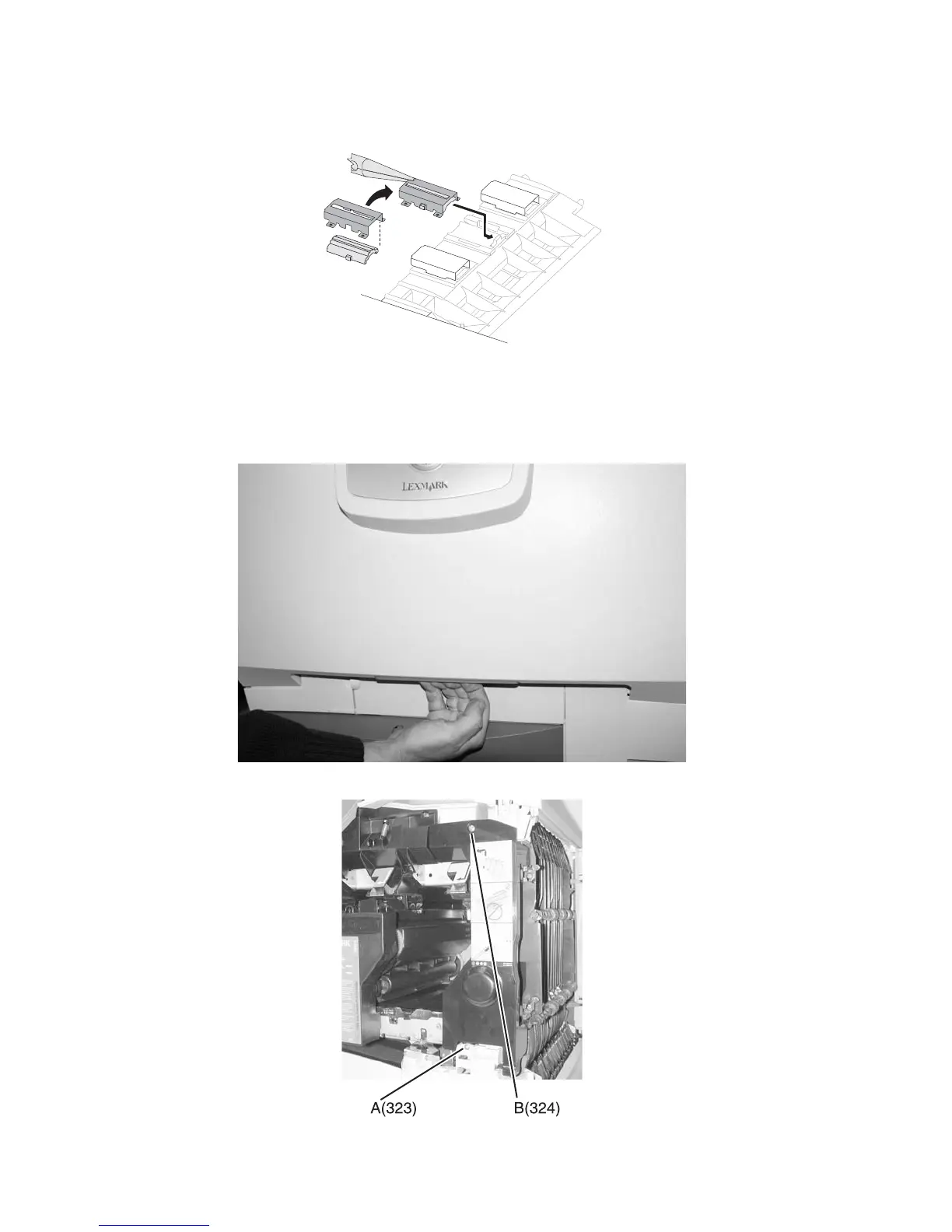

2. The end of the buckler housing that goes into the printer first has tabs flush with the edge. Place the
housing between the two sets of slots in the printer, and then slide the housing into position.
Front right light shield removal
See “Front right light shield” on page 7-3 for the part numbers.
1. Open the front cover assembly.
2. Remove the front right light shield screws (A) and (B).
