Lexmark C78x - Rib Housing Removal

Repair information 4-85
5061
Rib housing removal
See “Rib housing” on page 7-19 for the part number.

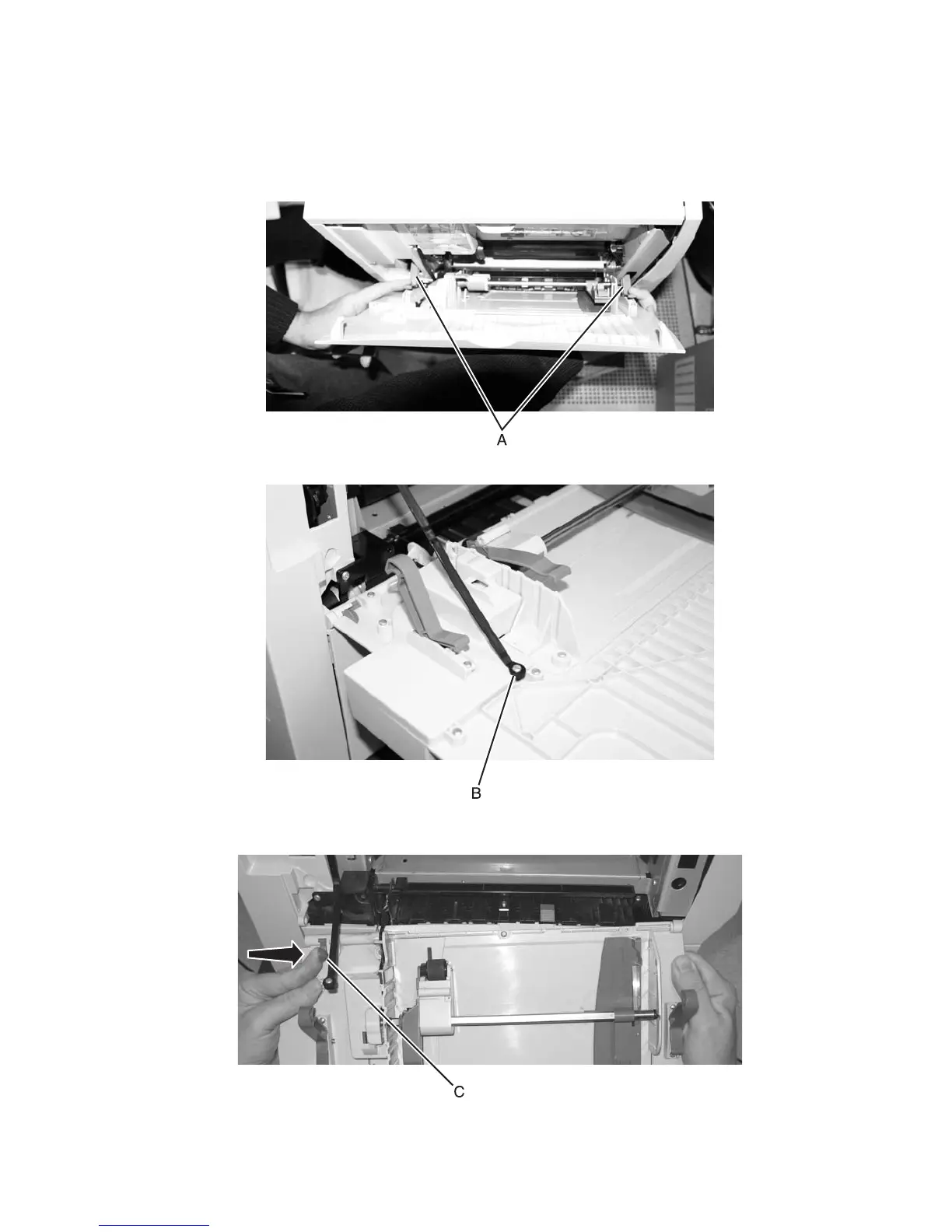

1. Open the MPF, and press the releases (A) to open the MPF to the lowest position.
2. Remove the MPF cable cover screw (B).
3. Release the MPF latch (C), and lower the MFP door down. Support the tray to relieve pressure on the MPF
switch cable.
