Repair information 4-55
5061
Media size sensing assembly removal
See “Media size sensing” on page 7-16 for part numbers associated with this assembly.
1. Enter Diagnostics mode. Power up the printer in Diagnostics mode (holding and about 10 seconds
or until the clock face appears).
2. Print the Quick Test Page, if possible. Retain this sheet to verify the installation.
a. Select REGISTRATION.
b. Press Select ( ) to print the page.
3. Turn the printer off.
4. Remove the inner system board shield. See “Inner system board shield removal” on page 4-48.

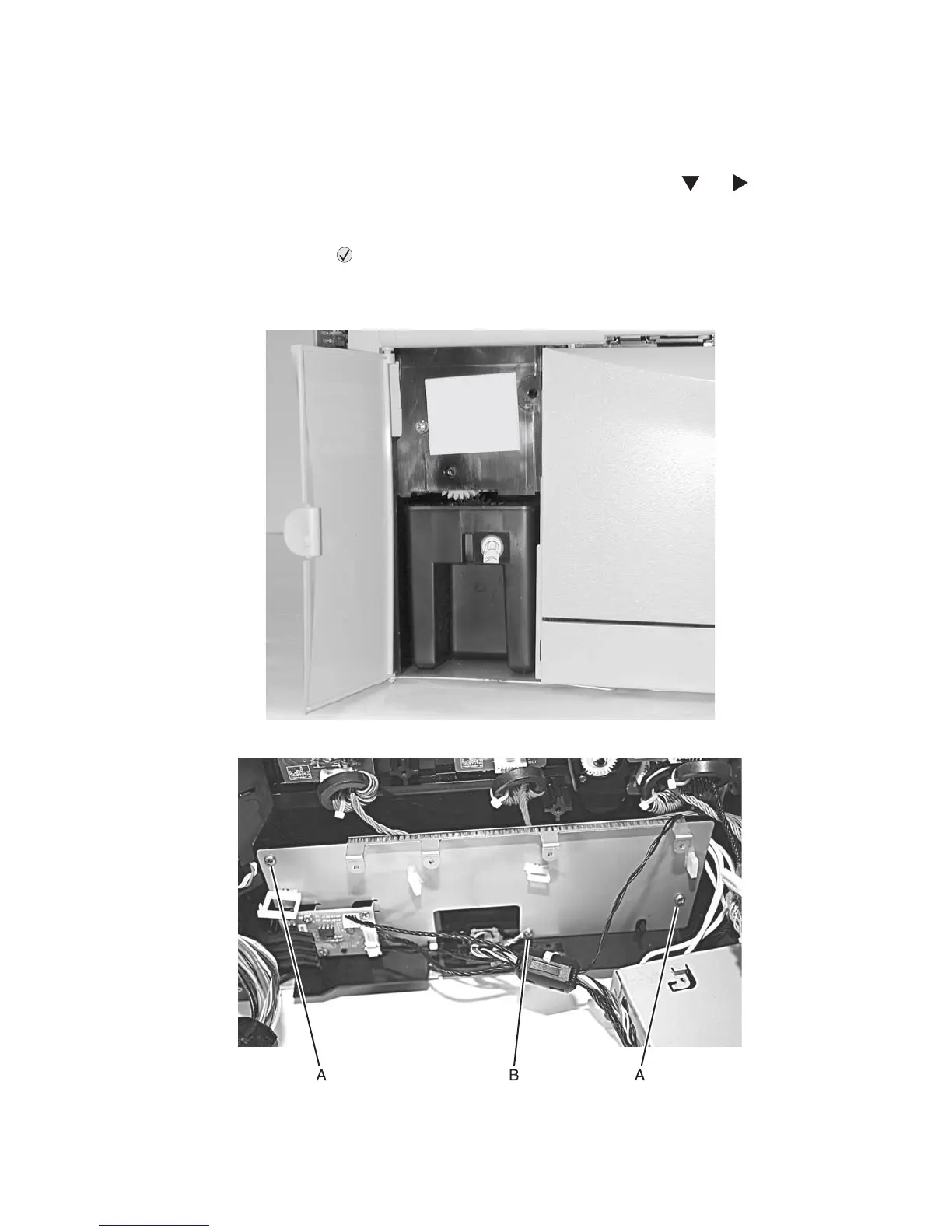

5. Open the waste toner container door, and slide the container out.
6. Remove the two screws (A) on the lower shield, and remove the ground wire screw (B).
To Next Page
