Repair information 4-19
5061
Front left handle cover assembly removal
See “Front left handle cover assembly” on page 7-3 for the part number.
1. Remove the front lower left cover. See “Front lower left cover removal” on page 4-17.

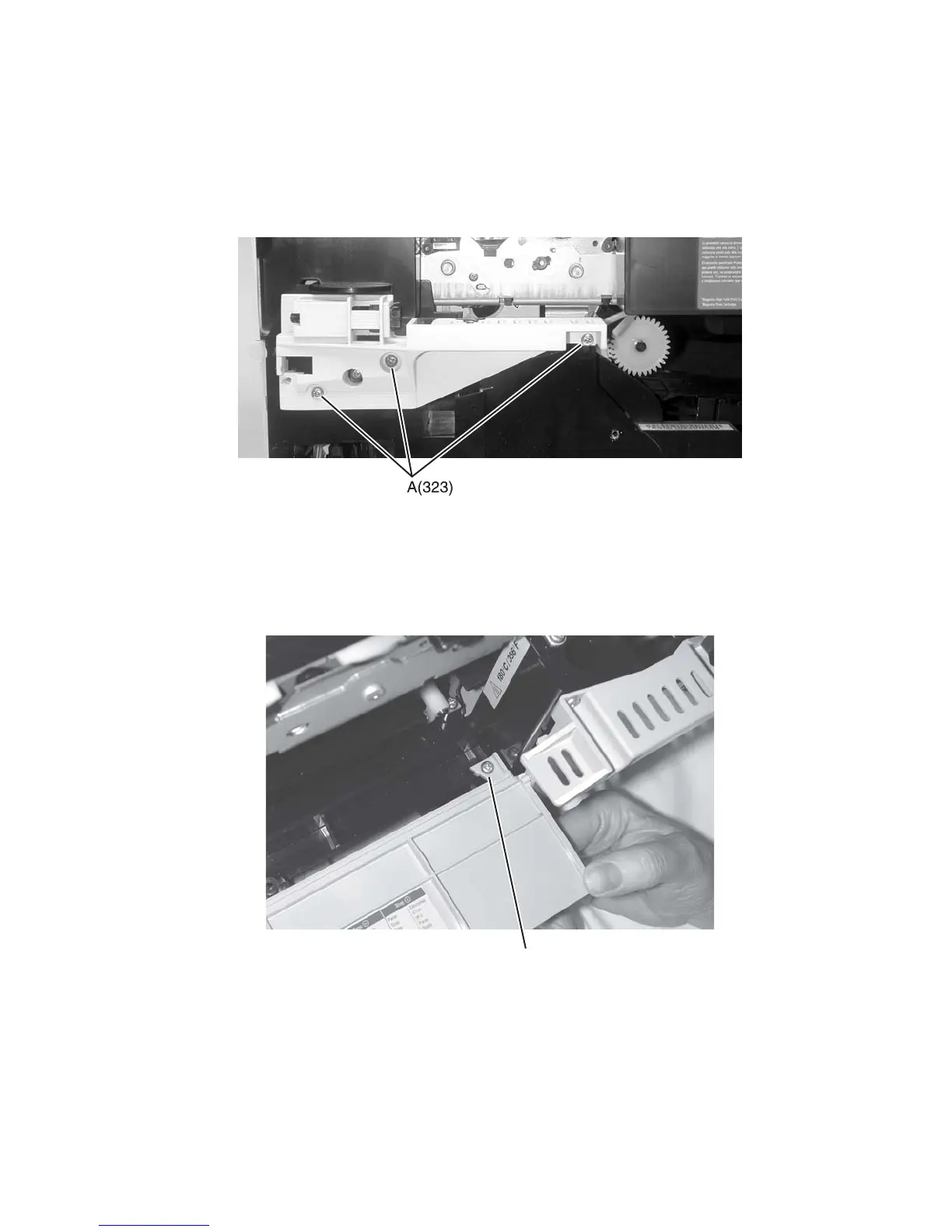

2. Remove the three front left handle cover assembly screws (A) type “323” on page 4-3, and remove the
assembly.
Front lower right cover removal
See “Front lower right cover” on page 7-3 for the part number.
1. Remove tray.
2. Open the paper path access door, and remove the left lower cover screw (A) type “323” on page 4-3.
